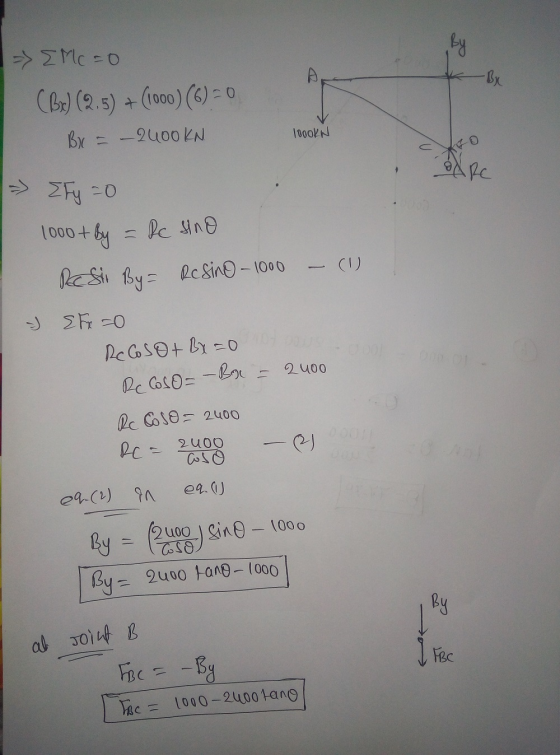

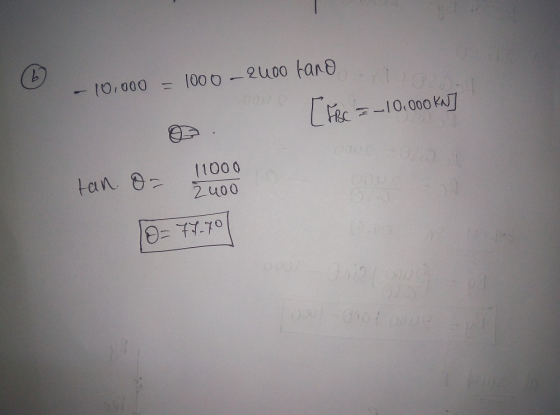

![- 10,000 = 1000 – 2400 fand . [ Fec = -10.000 kN] 11000 tan O= 2400](http://img.homeworklib.com/questions/c9185040-057e-11ec-8da5-0553b9d628b5.png?x-oss-process=image/resize,w_560)
Add Answer to:

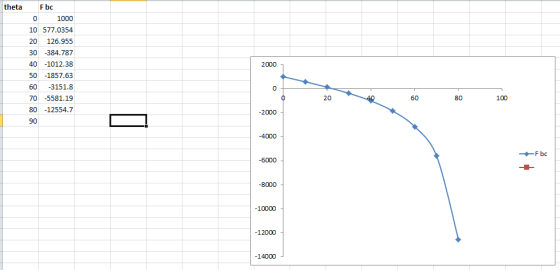

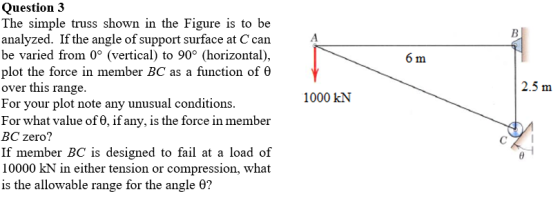

6 m 2.5 m Question 3 The simple truss shown in the Figure is to be...
Using the method of joints, determine the force in each member of the truss shown. The...
Using the method of joints, determine the force in each member of the truss shown. The load P = 3.6 kN. (Round the final answers to two decimal places.) 0.75 m. 0.4 m 1.4 m The force in member AC (FAc) is The force in member BC (Fc) is3.2 KN. (Compression) The force in member AB (FAB) is KN. (Tension) kN. (Tension)
Consider the truss shown in (Figure 1). Suppose that F = 3.5 kN. Assume all members...
Consider the truss shown in (Figure 1). Suppose that F = 3.5 kN.
Assume all members are pin connected.
Part A: Determine the force in member GC of the truss and state
if the member is in tension or compression.
Part B: Determine the force in member BC of the truss and state
if the member is in tension or compression.
Part C: Determine the force in member GF of the truss and state
if the member is in tension...
For the truss shown, Determine b) The force in member BC. State if the members are...
For the truss shown, Determine b) The force in member BC. State if the members are in tension or compression 10 kN 6 kN 3 2.5m 1-1,5 m 1.5 m..-2.5 m |
Question 15 For the truss shown in the figure below, determine the vertical reaction force at support A 5 kN 3 m 45 1 m 2 m +5 KN + 4.3 kN -3 kN -5 kN Question 16 For the truss shown in the fi...
Question 15 For the truss shown in the figure below, determine the vertical reaction force at support A 5 kN 3 m 45 1 m 2 m +5 KN + 4.3 kN -3 kN -5 kN Question 16 For the truss shown in the figure below, determine the horizontal reaction force at support D: 5 kN 45° 1 m 2 m + 15 kN - 12.5 kN 0 kN +5 kN Question 17 For the truss shown in the figure...
QUESTION 2 For the below loaded truss, P1-20 kN, P2 30 kN, P3-40 kN. 3 m...
QUESTION 2 For the below loaded truss, P1-20 kN, P2 30 kN, P3-40 kN. 3 m B 12 m--2 m--2 m--2 m--2 m-1-2 m- P Choose the best answer for the force in member KC in kN if the vertical reaction Gy 33.33 kN. State d the member is in tension (T) or compression (C) 12.67 (C) a.67 (C) 6.6 (D 12.67 ( For the below loaded truss, P1-20 kN, P2 30 KN, P3-40 kN. H 3 m D F...
Consider the truss shown in Figure 1) Set - kN R = 12 kN and 1-6...
Consider the truss shown in Figure 1) Set - kN R = 12 kN and 1-6 kN Part A Determine the force in member of the truss and state this member is in tension or compression Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension Sumber os at keyboard shortcuts help KN Figure (11 For 11 Submit Preis Answers Request Answer...
Question 8 5 pts Determine the force in member BC of the truss and state if...
Question 8 5 pts Determine the force in member BC of the truss and state if the member is in tension or compression. Set P1 = 0, P2 = 20 kN. -2 m -
II Review Consider the truss shown in (Figure 1). Set Pi =5 kN. P. = 9...
II Review Consider the truss shown in (Figure 1). Set Pi =5 kN. P. = 9 KN, Ps 13 kN. Part A Determine the force in member BC of the truss and state if this member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. HA OD? Fsc = 10.333 KN Submit Previous Answers Request Answer...
<Assignment-14 (Zero Force Members and Method of Sections) Problem 6.38 Consider the truss shown in (Figure...
<Assignment-14 (Zero Force Members and Method of Sections) Problem 6.38 Consider the truss shown in (Figure 1). Set R = 5 kN. B = 9 kN. P3 = 12 kN. Part A Determine the fo Express your ar value in the cas FBc = Va Submit RE Figure 1 of 1 Part B Determine the forc Express your ans value in the case 3 m B Valt 3 m 3 m 3 m P Submit Reqy Members and Method of...
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum...
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum allowed in each beam is 400lb in tension and 600lb in compression, determine the maximum of admissible load P. 2 ft 2 ft Exercise V: 40 PT 1.6 kN 200 _ 400 mm + 45 The angle strut is welded to...
Using the method of joints, determine the force in each member of the truss shown. The load P = 3.6 kN. (Round the final answers to two decimal places.) 0.75 m. 0.4 m 1.4 m The force in member AC (FAc) is The force in member BC (Fc) is3.2 KN. (Compression) The force in member AB (FAB) is KN. (Tension) kN. (Tension)
Consider the truss shown in (Figure 1). Suppose that F = 3.5 kN.
Assume all members are pin connected.
Part A: Determine the force in member GC of the truss and state
if the member is in tension or compression.
Part B: Determine the force in member BC of the truss and state
if the member is in tension or compression.
Part C: Determine the force in member GF of the truss and state
if the member is in tension...
For the truss shown, Determine b) The force in member BC. State if the members are in tension or compression 10 kN 6 kN 3 2.5m 1-1,5 m 1.5 m..-2.5 m |
Question 15 For the truss shown in the figure below, determine the vertical reaction force at support A 5 kN 3 m 45 1 m 2 m +5 KN + 4.3 kN -3 kN -5 kN Question 16 For the truss shown in the figure below, determine the horizontal reaction force at support D: 5 kN 45° 1 m 2 m + 15 kN - 12.5 kN 0 kN +5 kN Question 17 For the truss shown in the figure...
QUESTION 2 For the below loaded truss, P1-20 kN, P2 30 kN, P3-40 kN. 3 m B 12 m--2 m--2 m--2 m--2 m-1-2 m- P Choose the best answer for the force in member KC in kN if the vertical reaction Gy 33.33 kN. State d the member is in tension (T) or compression (C) 12.67 (C) a.67 (C) 6.6 (D 12.67 ( For the below loaded truss, P1-20 kN, P2 30 KN, P3-40 kN. H 3 m D F...
Consider the truss shown in Figure 1) Set - kN R = 12 kN and 1-6 kN Part A Determine the force in member of the truss and state this member is in tension or compression Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension Sumber os at keyboard shortcuts help KN Figure (11 For 11 Submit Preis Answers Request Answer...
Question 8 5 pts Determine the force in member BC of the truss and state if the member is in tension or compression. Set P1 = 0, P2 = 20 kN. -2 m -
II Review Consider the truss shown in (Figure 1). Set Pi =5 kN. P. = 9 KN, Ps 13 kN. Part A Determine the force in member BC of the truss and state if this member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. HA OD? Fsc = 10.333 KN Submit Previous Answers Request Answer...
<Assignment-14 (Zero Force Members and Method of Sections) Problem 6.38 Consider the truss shown in (Figure 1). Set R = 5 kN. B = 9 kN. P3 = 12 kN. Part A Determine the fo Express your ar value in the cas FBc = Va Submit RE Figure 1 of 1 Part B Determine the forc Express your ans value in the case 3 m B Valt 3 m 3 m 3 m P Submit Reqy Members and Method of...
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum allowed in each beam is 400lb in tension and 600lb in compression, determine the maximum of admissible load P. 2 ft 2 ft Exercise V: 40 PT 1.6 kN 200 _ 400 mm + 45 The angle strut is welded to...
