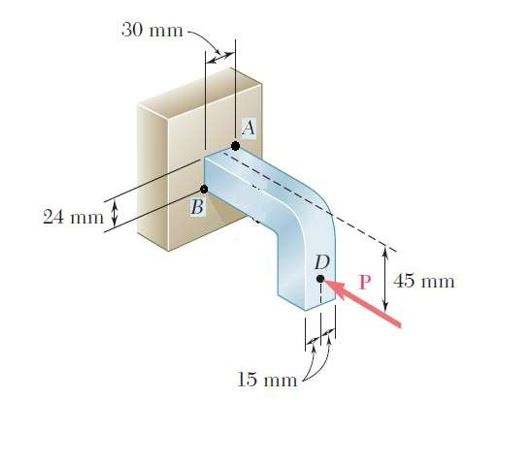

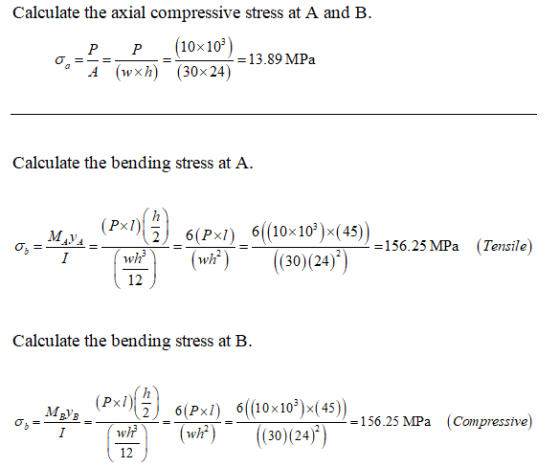

Knowing that the magnitude of the horizontal force
P is 10 kN, determine the
stresses at points A and B
Homework Answers
Add Answer to:
Knowing that the magnitude of the horizontal force
P is 10 kN, determine the
stresses at...
Knowing P = 56 kN and Q = 10 kN, determine the magnitude of the x-component...
Knowing P = 56 kN and Q = 10 kN, determine the magnitude of the x-component of the resultant force or (Rx of the resultant) Note: if you solution indicates the resultant headed to the left, include the negative sign 45
The horizontal force of P = 90 kN acts at the end of the plate. The...
The horizontal force of P = 90 kN acts at the end of the plate. The plate has a thickness of 10 mm and Pacts along the centerline of this thickness such that d = 50 mm. The position of P is shown with a red spot on the centerline in a side view. a) Determine normal stress at point A (10 points). b) Determine normal stress at point B (10 points). c) Plot the distribution of normal stress acting...
Question 4 Two forces are applied at points A and B of the solid cast-iron bracket shown. Knowing that the bracket has a diameter of 20mm, determine the stresses at point H 20 mm IH 10 kN A 80mm 60 m...
Question 4 Two forces are applied at points A and B of the solid cast-iron bracket shown. Knowing that the bracket has a diameter of 20mm, determine the stresses at point H 20 mm IH 10 kN A 80mm 60 mm 2.7 kN
Question 4 Two forces are applied at points A and B of the solid cast-iron bracket shown. Knowing that the bracket has a diameter of 20mm, determine the stresses at point H 20 mm IH 10 kN...
A 17.5 kN force is applied at Point D of the cast iron post shown. Knowing...
A 17.5 kN force is applied at Point D of the cast iron post
shown. Knowing that the post has a diameter of 60 mm, using Mohr’s
circle determine the principal stresses and the maximum shearing
stress at Point K
A 17.5 kN force is applied at Point D of the cast iron post shown. Knowing that the post has a diameter of 60 mm, using Mohr's circle determine the principal stresses and the maximum shearing stress at Point K....
Please show work. M1.13 Force based on inclined plane stresses scenes a 500 P 40 mm a The bar has a 40 mm by 20 mm recta...
Please show work.
M1.13 Force based on inclined plane stresses scenes a 500 P 40 mm a The bar has a 40 mm by 20 mm rectangular cross section. The allowable normal and shear stresses on inclined surface a-a must be limited to 55 MPa and 30 MPa, respectively. Determine the magnitude of the maximum axial force P that can be P (kN) (MPa) applied to the bar, and determine the actual normal and shear stresses acting on inclined plane...
If, FA 30 kN and Fg = 45 kN determine the magnitude of the resultant force...
If,
FA 30 kN and Fg = 45 kN determine the magnitude of the resultant
force and specify the location of its point of apPplication (X, y)
on the slab
If. FA= 30 kN and FB = 45 kN determine the magnitude of the resultant force and specify the location of its point of application (x,y) on the slab 60 KN 120 KN 0.75 m FR125 m 2.5 m 0.75 m 50 KN EN 0.75 m 3 m 0.75 m
13. The magnitude of the horizontal force Fi is 5 kN and Fi+ F2+ F-0 What...
13. The magnitude of the horizontal force Fi is 5 kN and Fi+ F2+ F-0 What is the magnitude of F2? 30" 45*
Knowing that Pis 24 kN, applied to both sides of the bar at Band Q is...
Knowing that Pis 24 kN, applied to both sides of the bar at Band Q is 45 kN, applied to the bar at Cas shown. What is the internal normal force acting on a vertical cross-section passing through the bar between points A and B? Express your answer in Newtons (not kN), to the nearest whole Newton, taking tension as positive and compression as negative. B4 - 400 mm — -600 mm
4. The vertical post shown has a diameter of 64 mm. A horizontal force of 10...
4. The vertical post shown has a diameter of 64 mm. A horizontal force of 10 kN and a torque of 1.4 kNm are applied at the top of the post. Determine the principal stresses and maximum shearing stress at points H and K which are located on a plane 240mm down from the top of the post. 1.4 kNm 10 KN H K 240 mm
Internal force, stresses, allowable stress P 400 kN C L 3.75 m P2 720 kN B...
Internal force, stresses, allowable stress P 400 kN C L 3.75 m P2 720 kN B 2 L 3.75 m 0.6 A 0.5 E0.4 0.3 If the geometry, o, and safety factor are given, what steps would you take to 0.2 0.1 determine whether the members are "safe"? C 0.05 0.1 0.15 0.2 0.25 Strain
Internal force, stresses, allowable stress P 400 kN C L 3.75 m P2 720 kN B 2 L 3.75 m 0.6 A 0.5 E0.4 0.3...
Knowing P = 56 kN and Q = 10 kN, determine the magnitude of the x-component of the resultant force or (Rx of the resultant) Note: if you solution indicates the resultant headed to the left, include the negative sign 45
The horizontal force of P = 90 kN acts at the end of the plate. The plate has a thickness of 10 mm and Pacts along the centerline of this thickness such that d = 50 mm. The position of P is shown with a red spot on the centerline in a side view. a) Determine normal stress at point A (10 points). b) Determine normal stress at point B (10 points). c) Plot the distribution of normal stress acting...
Question 4 Two forces are applied at points A and B of the solid cast-iron bracket shown. Knowing that the bracket has a diameter of 20mm, determine the stresses at point H 20 mm IH 10 kN A 80mm 60 mm 2.7 kN
Question 4 Two forces are applied at points A and B of the solid cast-iron bracket shown. Knowing that the bracket has a diameter of 20mm, determine the stresses at point H 20 mm IH 10 kN...
A 17.5 kN force is applied at Point D of the cast iron post
shown. Knowing that the post has a diameter of 60 mm, using Mohr’s
circle determine the principal stresses and the maximum shearing
stress at Point K
A 17.5 kN force is applied at Point D of the cast iron post shown. Knowing that the post has a diameter of 60 mm, using Mohr's circle determine the principal stresses and the maximum shearing stress at Point K....
Please show work.
M1.13 Force based on inclined plane stresses scenes a 500 P 40 mm a The bar has a 40 mm by 20 mm rectangular cross section. The allowable normal and shear stresses on inclined surface a-a must be limited to 55 MPa and 30 MPa, respectively. Determine the magnitude of the maximum axial force P that can be P (kN) (MPa) applied to the bar, and determine the actual normal and shear stresses acting on inclined plane...
If,
FA 30 kN and Fg = 45 kN determine the magnitude of the resultant
force and specify the location of its point of apPplication (X, y)
on the slab
If. FA= 30 kN and FB = 45 kN determine the magnitude of the resultant force and specify the location of its point of application (x,y) on the slab 60 KN 120 KN 0.75 m FR125 m 2.5 m 0.75 m 50 KN EN 0.75 m 3 m 0.75 m
13. The magnitude of the horizontal force Fi is 5 kN and Fi+ F2+ F-0 What is the magnitude of F2? 30" 45*
Knowing that Pis 24 kN, applied to both sides of the bar at Band Q is 45 kN, applied to the bar at Cas shown. What is the internal normal force acting on a vertical cross-section passing through the bar between points A and B? Express your answer in Newtons (not kN), to the nearest whole Newton, taking tension as positive and compression as negative. B4 - 400 mm — -600 mm
4. The vertical post shown has a diameter of 64 mm. A horizontal force of 10 kN and a torque of 1.4 kNm are applied at the top of the post. Determine the principal stresses and maximum shearing stress at points H and K which are located on a plane 240mm down from the top of the post. 1.4 kNm 10 KN H K 240 mm
Internal force, stresses, allowable stress P 400 kN C L 3.75 m P2 720 kN B 2 L 3.75 m 0.6 A 0.5 E0.4 0.3 If the geometry, o, and safety factor are given, what steps would you take to 0.2 0.1 determine whether the members are "safe"? C 0.05 0.1 0.15 0.2 0.25 Strain
Internal force, stresses, allowable stress P 400 kN C L 3.75 m P2 720 kN B 2 L 3.75 m 0.6 A 0.5 E0.4 0.3...
