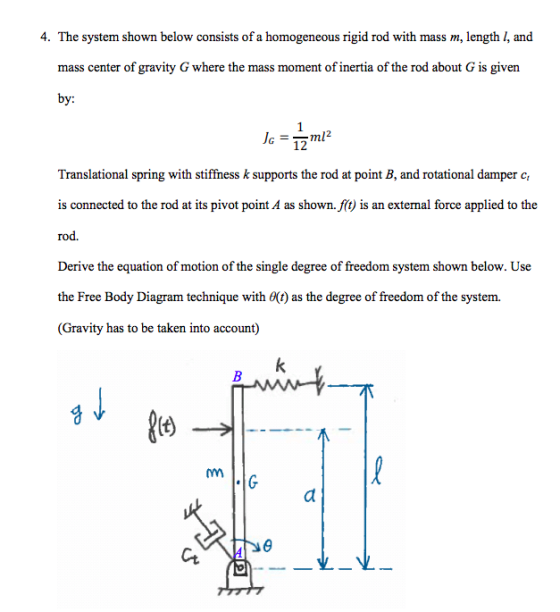

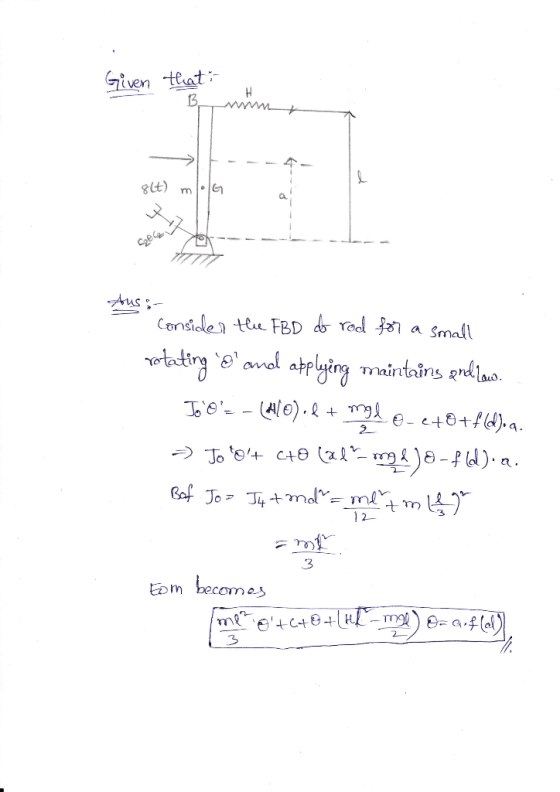

. The system shown below consists of a homogeneous rigid rod with mass m, length l,...
PROBLEM 1 (35 %) The mechanical system in the figure below consists of a disk of radius r, a block of mass m, a spr...
PROBLEM 1 (35 %) The mechanical system in the figure below consists of a disk of radius r, a block of mass m, a spring of stiffness (spring constant) k, and a damper with damping ratio b. The disk has moment of inertia Jabout its center of mass (pivot point O), and the block is subjected to an external force t) as shown in the figure. The spring is unstressed when x 0= 0. Assume small 0. (a) (10 points)...
44. The system shown in Fig. P7 consists of a slider block of mass m2 and a uniform slender rod of mass m3, length 13, and mass moment of inertia about its center of mass J The slider block is connec...
44. The system shown in Fig. P7 consists of a slider block of mass m2 and a uniform slender rod of mass m3, length 13, and mass moment of inertia about its center of mass J The slider block is connected to the ground by a spring that has a stiffness coefficient k. The slider block is subjected to the force F(t), while the rod is subjected to the moment M. Obtain the differential equations of motion of this two-degree-of-freedom...
Consider the system shown in the figure below. The mass moment of inertia of the bar...
Consider the system shown in the figure below. The mass moment
of inertia of the bar about the point O is JO, and the torsional
stiffness of the spring attached to the pivot point is kt . Assume
that there is gravity loading. The centre of gravity of the bar is
midways, as shown in the figure.
Question 2 Consider the system shown in the figure below. The mass moment of inertia of the bar about the point O is...
1. A rod of length 3a is hinged at one end and supported by a spring of stiffness k at the other end. A mass m is attached 1/3 of the length from the hinge and a dashpot having a hinge. Ignore the ma...
1. A rod of length 3a is hinged at one end and supported by a spring of stiffness k at the other end. A mass m is attached 1/3 of the length from the hinge and a dashpot having a hinge. Ignore the mass of the rod, spring and damper (a) Derive the equation of motion for the system (101
1. A rod of length 3a is hinged at one end and supported by a spring of stiffness k at...
Problen /) Derive equations of motion of the system shown below in x and 0 by using Lagrange's method. The thin rigid rod of length is supported as a pendulum at end A, and has a mass m. The rod...
Problen /) Derive equations of motion of the system shown below in x and 0 by using Lagrange's method. The thin rigid rod of length is supported as a pendulum at end A, and has a mass m. The rod is also pinned to a roller and held in place by two elastic springs with constants k .
Problen /) Derive equations of motion of the system shown below in x and 0 by using Lagrange's method. The thin rigid...
A pendulum consists of a uniform rod of total mass m and length L that can...
A pendulum consists of a uniform rod of total mass m and length L that can pivot freely around one of its ends. The moment of inertia of such a rod around the pivot point is 1/3mL^2 The torque around the pivot point of the pendulum due to gravity is 1/2mgLsinθ, where θ is the angle the rod makes with the vertical and g is the acceleration due to gravity. a) Write down the equation of motion for the angle...
Question 1.0 [25 marks] Consider the sketch below which an inverted pendulum. bob, M Damper,c spring,k...
Question 1.0 [25 marks] Consider the sketch below which an inverted pendulum. bob, M Damper,c spring,k connecting rod mass, m に., pivot Fig 1.0 Determine: i. equivalent inertia ii. equivalent stiffness equivalent damping properties for the system. Derive the natural frequency of the system
Consider the push rod rocker and valve of engine valve system shown in the Figure. The...
Consider the push rod rocker and valve of engine valve system shown in the Figure. The mass moment of inertia of the rocker about its axis is I, the masses of valve and push rod are my and my respectively. The valve spring stiffness is K, and its mass is m. The push rod can be replaced by a spring of equivalent stiffness K. Obtain the equation of motion of the system considering the rocker and valve to be rigid...
A rigid bar with mass m and length L is pivoted at the fixed point O....
A rigid bar with mass m and length L is pivoted at the fixed point O. A small disk of mass M is attached at the upper end of the bar. The disk is attached to a spring of stiffness k and a viscous damper with damping constant c. The moment of inertia of the bar about point O is Io M2/3 and the spring is unstretched when the bar is vertical. rs Under what condition is the vertical position...
Q21 (15 points): A uniform rod of mass m 1.5 kg and length d- 2.0 m...
Q21 (15 points): A uniform rod of mass m 1.5 kg and length d- 2.0 m is supported by a pivot point P at its top and is free to rotate iın the vertical plane. A block of mass m2 0.8 kg is attached to the other end of the rod. The rod-block system is initially at rest, and a 1g bullet is fired horizontally into the rod through a point x 08 d below the pivot P Assume that...
PROBLEM 1 (35 %) The mechanical system in the figure below consists of a disk of radius r, a block of mass m, a spring of stiffness (spring constant) k, and a damper with damping ratio b. The disk has moment of inertia Jabout its center of mass (pivot point O), and the block is subjected to an external force t) as shown in the figure. The spring is unstressed when x 0= 0. Assume small 0. (a) (10 points)...
44. The system shown in Fig. P7 consists of a slider block of mass m2 and a uniform slender rod of mass m3, length 13, and mass moment of inertia about its center of mass J The slider block is connected to the ground by a spring that has a stiffness coefficient k. The slider block is subjected to the force F(t), while the rod is subjected to the moment M. Obtain the differential equations of motion of this two-degree-of-freedom...
Consider the system shown in the figure below. The mass moment
of inertia of the bar about the point O is JO, and the torsional
stiffness of the spring attached to the pivot point is kt . Assume
that there is gravity loading. The centre of gravity of the bar is
midways, as shown in the figure.
Question 2 Consider the system shown in the figure below. The mass moment of inertia of the bar about the point O is...
1. A rod of length 3a is hinged at one end and supported by a spring of stiffness k at the other end. A mass m is attached 1/3 of the length from the hinge and a dashpot having a hinge. Ignore the mass of the rod, spring and damper (a) Derive the equation of motion for the system (101
1. A rod of length 3a is hinged at one end and supported by a spring of stiffness k at...
Problen /) Derive equations of motion of the system shown below in x and 0 by using Lagrange's method. The thin rigid rod of length is supported as a pendulum at end A, and has a mass m. The rod is also pinned to a roller and held in place by two elastic springs with constants k .
Problen /) Derive equations of motion of the system shown below in x and 0 by using Lagrange's method. The thin rigid...
Question 1.0 [25 marks] Consider the sketch below which an inverted pendulum. bob, M Damper,c spring,k connecting rod mass, m に., pivot Fig 1.0 Determine: i. equivalent inertia ii. equivalent stiffness equivalent damping properties for the system. Derive the natural frequency of the system
Consider the push rod rocker and valve of engine valve system shown in the Figure. The mass moment of inertia of the rocker about its axis is I, the masses of valve and push rod are my and my respectively. The valve spring stiffness is K, and its mass is m. The push rod can be replaced by a spring of equivalent stiffness K. Obtain the equation of motion of the system considering the rocker and valve to be rigid...
A rigid bar with mass m and length L is pivoted at the fixed point O. A small disk of mass M is attached at the upper end of the bar. The disk is attached to a spring of stiffness k and a viscous damper with damping constant c. The moment of inertia of the bar about point O is Io M2/3 and the spring is unstretched when the bar is vertical. rs Under what condition is the vertical position...
Q21 (15 points): A uniform rod of mass m 1.5 kg and length d- 2.0 m is supported by a pivot point P at its top and is free to rotate iın the vertical plane. A block of mass m2 0.8 kg is attached to the other end of the rod. The rod-block system is initially at rest, and a 1g bullet is fired horizontally into the rod through a point x 08 d below the pivot P Assume that...
