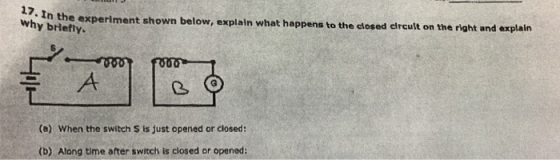

. In the experiment shown below, explain what happens to the closed clrcult on the right...

Question

Question

science physics

Answer 1

Answer #1

This is an example for mutual inductance

Mutual induction an electric current is produced in the neighbouring coil when the magnetic field due to the other coil changes

Here

a. When switch turns off or on the flow of electricity through the coil just starts or ends this causes a deflection in magnetic field due to it

And due to mutual induction in the neighbouring coil electricity produces and bulb lights for a second

b. a long time after switch turned on current is passing through the coil is consistent so the magnetic field due to it

Also has no change

When there is no change no emf produced so bulb stays off

Answer 2

Similar Homework Help Questions

What happens to bulb B after the switch shown is closed What happens to the voltmeter...

What happens to bulb B after the switch shown is closed What happens to the voltmeter reading when the switch is closed.

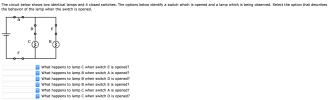

The circuit below shows two identical lamps and 4 closed switches. The options below identify a...
