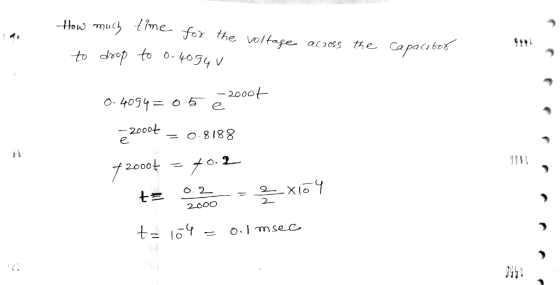

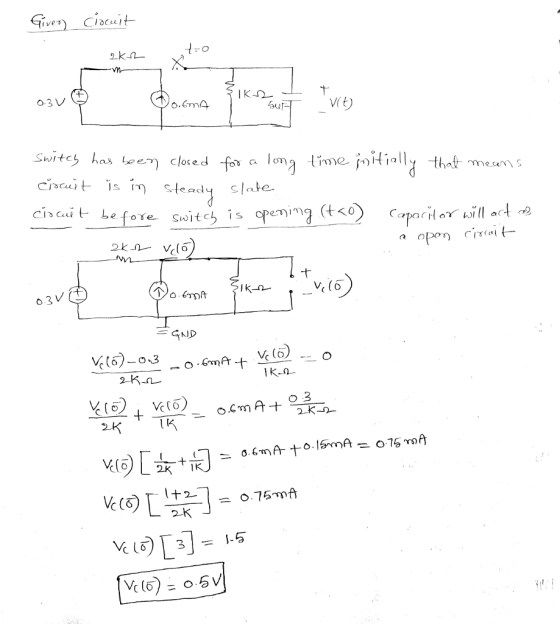

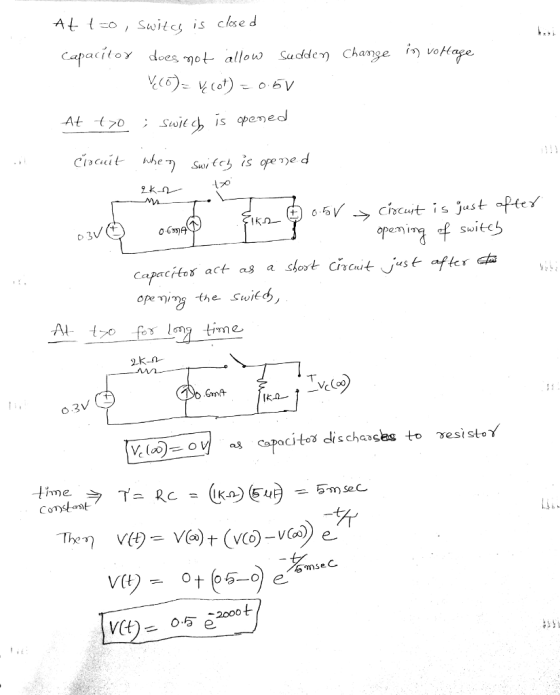

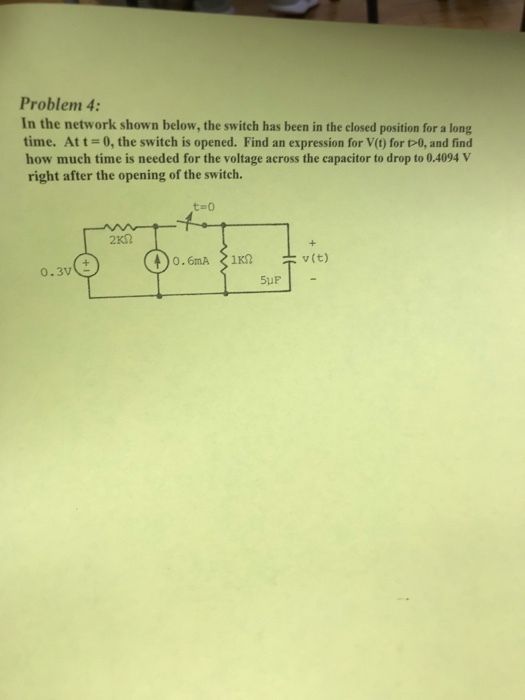

Problem 4 In the network shown below, the switch has been in the closed position for...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2
