answer quickly please

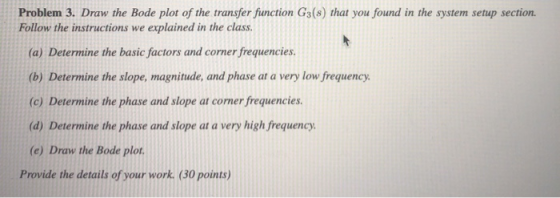

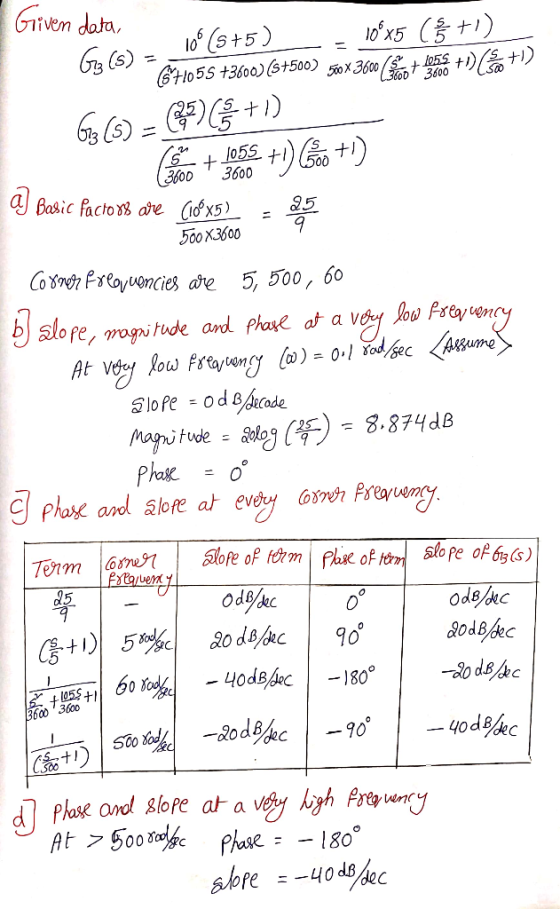

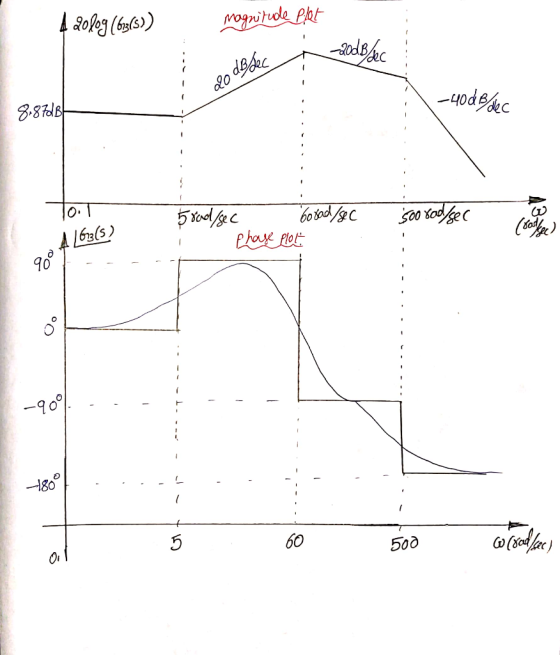

Problem 3. Draw the Bode plot of the transfer function G3(8) that you...
Problem: A. For every Bode magnitude plot, do the following: (a)Find the Bode gain, K. (b)List...
Problem:
A. For every Bode magnitude plot, do the following: (a)Find the Bode gain, K. (b)List the corner frequency for each factor. (c)Draw the straight line Bode magnitude plot for each factor, using the correct slope. (d) Carefully combine the plots into a composite straight line plot, using graphical addition at (e) (f) the corner frequencies. Use a heavy line for this composite plot. Go back and add the appropriate corrections at corners (±3 dB for simple poles/zeros) By hand,...
Sketch the straight-line approximation Bode plot diagrams (magnitude and phase) 110s for H[s] You might want...
Sketch the straight-line approximation Bode plot diagrams (magnitude and phase) 110s for H[s] You might want to examine Examples E.1 and E.2 in (s+10)(s+100)´ the textbook. Based on your straight-line Bode plot sketch, answer the following questions. The questions are: a. Identify the transfer function written in time constant form. b. The phase of H[s] at low frequencies is? c. The magnitude plot has what slope at low frequencies? d. The magnitude plot has what slope at high frequencies? e....
Problem 11.37 A system has a transfer function H(S)= 72 +85 +4 (a) (b) In a...
Problem 11.37 A system has a transfer function H(S)= 72 +85 +4 (a) (b) In a magnitude Bode diagram of its frequency response what are the values of all the corner frequencies (in radians/second)? What is the slope (in dB/decade) of the magnitude Bode diagram at very low frequencies (approaching zero)? What is the slope (in dB/decade) of the magnitude Bode diagram at very high frequencies (approaching infinity)? (c)
Draw the Bode Plot for the system having the below transfer function Calculate a. Gain margin...
Draw the Bode Plot for the system having the below transfer function Calculate a. Gain margin b. Phase margin c. Gain crossover frequency d. Phase crossover frequency * 100 G(s) = s(s+1)(s+2)
3. Draw the Bode plot (magnitude and phase) for the transfer function H(s) of a CT...
3. Draw the Bode plot (magnitude and phase) for the transfer function H(s) of a CT LTI given by H(s) 4000 only the asymptotic plot of the terms that make up the transfer function but also show the composite plot that adds all the terms that make up the transfer function. S+2000s+10 where the ROC includes the ja axis. Show
Consider the system shown as below. Draw a Bode diagram of the open-loop transfer function G(s).
1 Consider the system shown as below. Draw a Bode diagram of the open-loop transfer function G(s). Determine the phase margin, gain-crossover frequency, gain margin and phase-crossover frequency, (Sketch the bode diagram by hand) 2 Consider the system shown as below. Use MATLAB to draw a bode diagram of the open-loop transfer function G(s). Show the gain-crossover frequency and phase-crossover frequency in the Bode diagram and determine the phase margin and gain margin. 3. Consider the system shown as below. Design a...
A bode plot of the transfer function, GS = - 25 $2+45+25, is shown as below....
A bode plot of the transfer function, GS = - 25 $2+45+25, is shown as below. Bode Diagram System sys Frequency (rad/s): 7 Magnitude (dB): -3.4 Magnitude (dB) Phase (deg) Systemt sys Frequency (rad/s): 7 Phase (deg): - 130 - 135 - 180 10 Frequency (rad/s) Determine the frequency response y(t) when a sinusoidal function, X(t) = 10 sin (7t +30) is applied to the transfer function as an input signal. (20 points)
The transfer function of the given physical system is 2500 Gp(s)-T-1000 Part 3 1. Frequency response (a) Draw the bode...
The transfer function of the given physical system is 2500 Gp(s)-T-1000 Part 3 1. Frequency response (a) Draw the bode plot of open-loop transfer function when K (b) Use bode plot of open-loop transfer function to determine the type of system (do not use transfer function) (c) For what input the system will have constant steady-state error (d) for the unit input in item (c) calculate the constant steady-state error.(Use bode plot to calculate the error.) (e) Design a lead...
Problem 4 oints) Given a transfer function: +8 y a Bode magnitude plot, and clearly indicate...
Problem 4 oints) Given a transfer function: +8 y a Bode magnitude plot, and clearly indicate the break frequency and slope 160 is one, in the plot. What kind of filter is this? if there
Q13,Q14 please. 25 For the system with transfer function G(S) [13] draw the bode (magnitude and s2+4s+25 phase)...
Q13,Q14 please.
25 For the system with transfer function G(S) [13] draw the bode (magnitude and s2+4s+25 phase) plot on the semi-log paper. [14] The frequency response test ona system yielded the following data: db 0.1 -14 900 610 450 0.5 1 5 5 10 00 10 7.5 -450 50 19 -1360 100 -31 -1800 Plot the data on a semi-log graph sheet. And, also determine the system transfer function in a frequency domain.
25 For the system with transfer...
Problem:
A. For every Bode magnitude plot, do the following: (a)Find the Bode gain, K. (b)List the corner frequency for each factor. (c)Draw the straight line Bode magnitude plot for each factor, using the correct slope. (d) Carefully combine the plots into a composite straight line plot, using graphical addition at (e) (f) the corner frequencies. Use a heavy line for this composite plot. Go back and add the appropriate corrections at corners (±3 dB for simple poles/zeros) By hand,...
Sketch the straight-line approximation Bode plot diagrams (magnitude and phase) 110s for H[s] You might want to examine Examples E.1 and E.2 in (s+10)(s+100)´ the textbook. Based on your straight-line Bode plot sketch, answer the following questions. The questions are: a. Identify the transfer function written in time constant form. b. The phase of H[s] at low frequencies is? c. The magnitude plot has what slope at low frequencies? d. The magnitude plot has what slope at high frequencies? e....
Problem 11.37 A system has a transfer function H(S)= 72 +85 +4 (a) (b) In a magnitude Bode diagram of its frequency response what are the values of all the corner frequencies (in radians/second)? What is the slope (in dB/decade) of the magnitude Bode diagram at very low frequencies (approaching zero)? What is the slope (in dB/decade) of the magnitude Bode diagram at very high frequencies (approaching infinity)? (c)
Draw the Bode Plot for the system having the below transfer function Calculate a. Gain margin b. Phase margin c. Gain crossover frequency d. Phase crossover frequency * 100 G(s) = s(s+1)(s+2)
3. Draw the Bode plot (magnitude and phase) for the transfer function H(s) of a CT LTI given by H(s) 4000 only the asymptotic plot of the terms that make up the transfer function but also show the composite plot that adds all the terms that make up the transfer function. S+2000s+10 where the ROC includes the ja axis. Show
A bode plot of the transfer function, GS = - 25 $2+45+25, is shown as below. Bode Diagram System sys Frequency (rad/s): 7 Magnitude (dB): -3.4 Magnitude (dB) Phase (deg) Systemt sys Frequency (rad/s): 7 Phase (deg): - 130 - 135 - 180 10 Frequency (rad/s) Determine the frequency response y(t) when a sinusoidal function, X(t) = 10 sin (7t +30) is applied to the transfer function as an input signal. (20 points)
The transfer function of the given physical system is 2500 Gp(s)-T-1000 Part 3 1. Frequency response (a) Draw the bode plot of open-loop transfer function when K (b) Use bode plot of open-loop transfer function to determine the type of system (do not use transfer function) (c) For what input the system will have constant steady-state error (d) for the unit input in item (c) calculate the constant steady-state error.(Use bode plot to calculate the error.) (e) Design a lead...
Problem 4 oints) Given a transfer function: +8 y a Bode magnitude plot, and clearly indicate the break frequency and slope 160 is one, in the plot. What kind of filter is this? if there
Q13,Q14 please.
25 For the system with transfer function G(S) [13] draw the bode (magnitude and s2+4s+25 phase) plot on the semi-log paper. [14] The frequency response test ona system yielded the following data: db 0.1 -14 900 610 450 0.5 1 5 5 10 00 10 7.5 -450 50 19 -1360 100 -31 -1800 Plot the data on a semi-log graph sheet. And, also determine the system transfer function in a frequency domain.
25 For the system with transfer...
