Three resistors each of 39 Ohms are hooked up in series to a 7 V battery....

Three resistors each of 39 Ohms are hooked up in series to a 7 V battery. What is the voltage drop across each resistor in volts?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

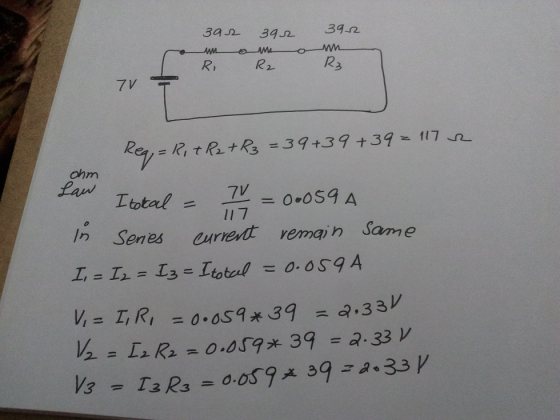

Answer #1

0 0
Add a comment
Answer #2

volatge will divide equally to all resistance

V = Vtotal/3
   =7/3 V
   =2.33 V

Ans: 2.33 V

0 0
Add a comment
Answer #3

\\equivalent\:resistance=36+36+36=108ohms\\ current\:across\;each\:resistor(i)=V/R=7/108\\ voltage\:drop\:across\:each\;resistor(V)=Ri =\frac{7}{108}*36\\ =7/3V

0 0
Add a comment
