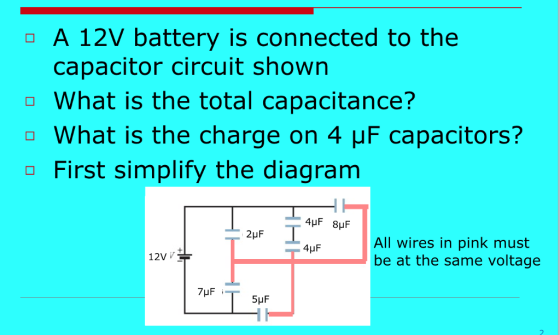

A 12V battery is connected to the capacitor circuit shown What is the total capacitance? What...
4. In the capacitor circuit shown below, what is (A) the equivalent capacitance?i) Start by two...

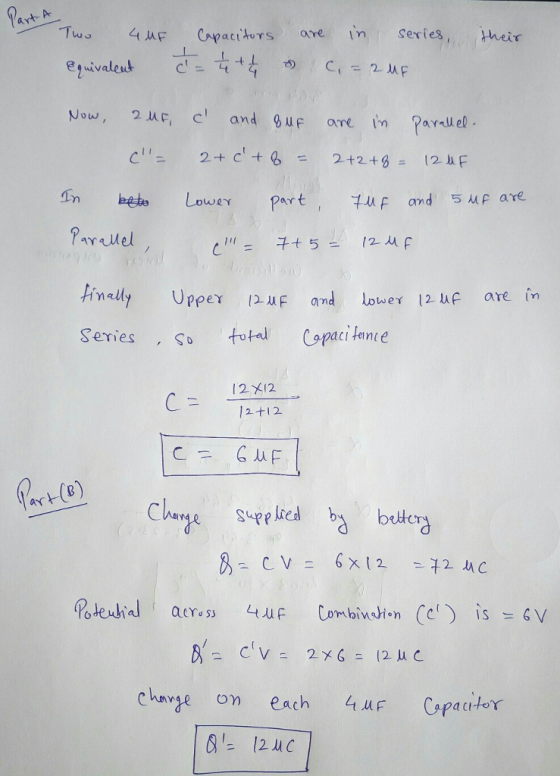

4. In the capacitor circuit shown below, what is (A) the equivalent capacitance?i) Start by two 2 μ F capacitors in series, ii) then combine result with the 5 μF capacitor in What is the charge on each capacitor? i) Start by determining the charge on the pacitor. ii) Then note that each parallel branch has 12 V because they are llel. (B) entire equivalent ca connected to the same battery, use that to determine the charge on each branch....
3. 15 MF Find the equivalent capacitance of the circuit shown in the diagram. If an...
3. 15 MF Find the equivalent capacitance of the circuit shown in the diagram. If an 18 V battery is connected to terminals A and B, find the charge on each capacitor, the voltage across the 8.2 pF and 22 F capacitors, and the total energy stored in the circuit A B 8.2uF 22uF
The end points of the circuit shown below are connected to a battery and the charge...
The end points of the circuit shown below are connected to a battery and the charge on the 5-mu F capacitor is measured to be 1 mC. What is the charge on the 20-mu F capacitor? A. 1 mC B. 5 mC C. 3 mC D. 2 mC E. 4 mC
A battery with an emf of 60 {\rm V} is connected to the two capacitors shown...
A battery with an emf of 60 {\rm V} is connected to the two
capacitors shown in the figure . Afterward, the charge on capacitor
2 is 540 \mu C.
What is the capacitance of capacitor 2? C2 =
____μF
Express your answer using two significant figures.
(sorry the immage didnt work well but the 12 uF and
C2 are connected in the circuit it just wont line up for
me)
(a) In the capacitor circuit shown below, what is the total capacitance of the circuit (10...
(a) In the capacitor circuit shown below, what is the total capacitance of the circuit (10 pt). (b) What is the time constant (T) for the circuit (5 pt)? (c) After the switch is closed, how long will it take for the capacitors to charge to 90% of their final charge (10 pt)? 2uF 4uF 750092 5 V switch
Three parallel-plate capacitors are connected to a battery as shown The capacitance of C is 803F...
Three parallel-plate capacitors are connected to a battery as shown The capacitance of C is 803F All capacitors in the circuit have the same plate area Capacitor Cyis half filed with a dielectric material (K = 4). Battery provides 100V to the circuit (Figure 1) Part A What is the charge accumulated on C? Express your answer using three significant figures. yo ΑΣΦ ? 2. c Figure 1 of 1 Submit Request Answer Czi Provide Feedback ot C₂ 21 Aramak...
16.14 Two capacitors are connected in series with an 30 V battery. The capacitance of capacitor...
16.14 Two capacitors are connected in series with an 30 V battery. The capacitance of capacitor C1 is 12 µF and the capacitor C2 is unknown. The charge on capacitor C2 is 140 µC. a) What is the equivalent capacitance? b) What is the capacitance of capacitor C2? c) What is the voltage of each capacitor?
3 capacitors are connected in series and connected to a 12V battery. They have values of...
3 capacitors are connected in series and connected to a 12V battery. They have values of 12pF, 15pF and 18pF. a) what is the charge on the 18pF capacitor b) what is the voltage across the 15 pf capacitor C) what is the energy stored in the 12 of capacitor.
Consider the capacitor circuit shown to the right containing a 10 V battery, and 21 capacitors....
Consider the capacitor circuit shown to the right containing a 10 V battery, and 21 capacitors. Capacitors C to C20 are connected in series. The capacitance of each capacitor is given by: C21 10 V C20 C = C2 =... = C19 = C20 = 2 uf C21 = 3F (a) What is the equivalent capacitance of this circuit? Input your answer in microfarads.
A circuit consists of a 6-pif capacitor, a 12 m-F capacitor, a 12-V battery, and a...
A circuit consists of a 6-pif capacitor, a 12 m-F capacitor, a 12-V battery, and a switch, connected as shown in Figure 24-14. Initially, the switch is open and the capacitors are uncharged. The switch is then closed and the capacitors charge. When the capacitors are fully charged and open-circuit terminal volt- age is restored, (a) what is the potential of each conductor in the circuit? (Choose the zero-potential reference point on the negative battery terminal.) If the potential of...
4. In the capacitor circuit shown below, what is (A) the equivalent capacitance?i) Start by two 2 μ F capacitors in series, ii) then combine result with the 5 μF capacitor in What is the charge on each capacitor? i) Start by determining the charge on the pacitor. ii) Then note that each parallel branch has 12 V because they are llel. (B) entire equivalent ca connected to the same battery, use that to determine the charge on each branch....
3. 15 MF Find the equivalent capacitance of the circuit shown in the diagram. If an 18 V battery is connected to terminals A and B, find the charge on each capacitor, the voltage across the 8.2 pF and 22 F capacitors, and the total energy stored in the circuit A B 8.2uF 22uF
The end points of the circuit shown below are connected to a battery and the charge on the 5-mu F capacitor is measured to be 1 mC. What is the charge on the 20-mu F capacitor? A. 1 mC B. 5 mC C. 3 mC D. 2 mC E. 4 mC
A battery with an emf of 60 {\rm V} is connected to the two
capacitors shown in the figure . Afterward, the charge on capacitor
2 is 540 \mu C.
What is the capacitance of capacitor 2? C2 =
____μF
Express your answer using two significant figures.
(sorry the immage didnt work well but the 12 uF and
C2 are connected in the circuit it just wont line up for
me)
(a) In the capacitor circuit shown below, what is the total capacitance of the circuit (10 pt). (b) What is the time constant (T) for the circuit (5 pt)? (c) After the switch is closed, how long will it take for the capacitors to charge to 90% of their final charge (10 pt)? 2uF 4uF 750092 5 V switch
Three parallel-plate capacitors are connected to a battery as shown The capacitance of C is 803F All capacitors in the circuit have the same plate area Capacitor Cyis half filed with a dielectric material (K = 4). Battery provides 100V to the circuit (Figure 1) Part A What is the charge accumulated on C? Express your answer using three significant figures. yo ΑΣΦ ? 2. c Figure 1 of 1 Submit Request Answer Czi Provide Feedback ot C₂ 21 Aramak...
Consider the capacitor circuit shown to the right containing a 10 V battery, and 21 capacitors. Capacitors C to C20 are connected in series. The capacitance of each capacitor is given by: C21 10 V C20 C = C2 =... = C19 = C20 = 2 uf C21 = 3F (a) What is the equivalent capacitance of this circuit? Input your answer in microfarads.
A circuit consists of a 6-pif capacitor, a 12 m-F capacitor, a 12-V battery, and a switch, connected as shown in Figure 24-14. Initially, the switch is open and the capacitors are uncharged. The switch is then closed and the capacitors charge. When the capacitors are fully charged and open-circuit terminal volt- age is restored, (a) what is the potential of each conductor in the circuit? (Choose the zero-potential reference point on the negative battery terminal.) If the potential of...
