Question

1. Compare between, single simple refrigeration cycle, two-stage cascade refrigeration cycle, and a two-stage compression ref
0 0
Add a comment Improve this question Transcribed image text
Answer #1

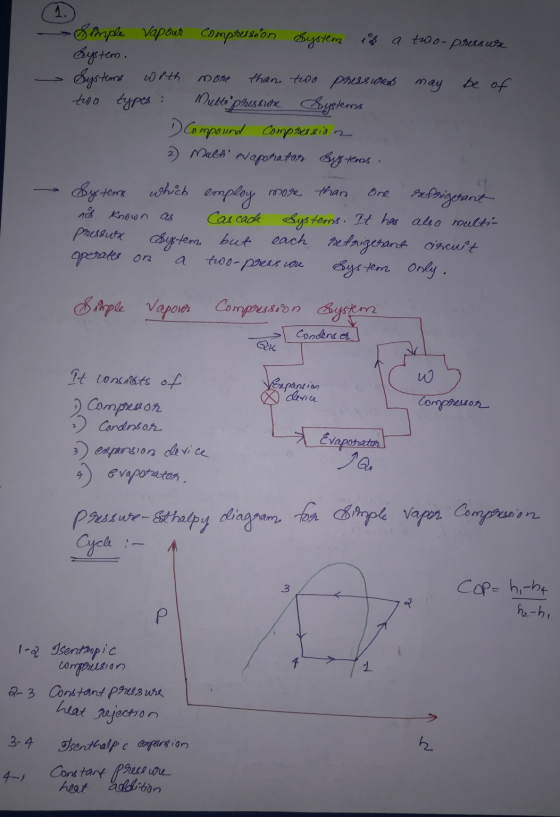

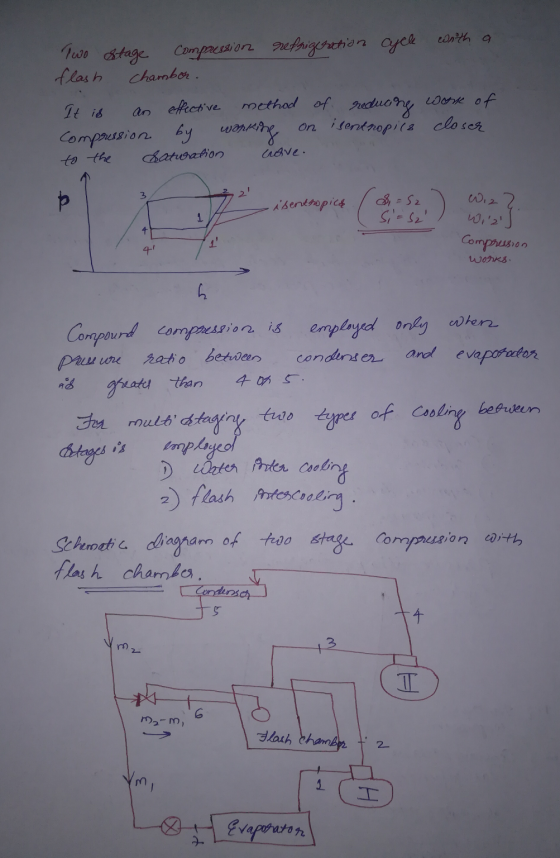

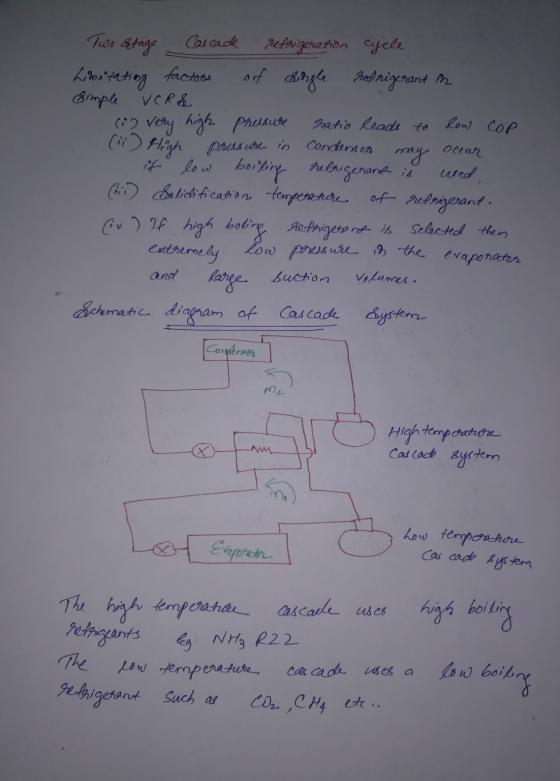

- Simple Vapour compression system of a two-pressure System. Systems with more than two pressured may be of two types: mult pTwo stage compression refrigeration cycle with a flash chamber. It is an effective method of reducine work of compression bypressure enthalpy diagram for redrigeration System with two stage compression flash intercooling Pk Condense Sm 34 Tee intermTwo Setage Cascade refrigeration cycle Liontating factors of surgle refrigerant in simple VERS (2 very high pressure ratio le

Add a comment
Know the answer?
Add Answer to:
1. Compare between, single simple refrigeration cycle, two-stage cascade refrigeration cycle, and a two-stage compression refrigeration...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • A two-stage cascade refrigeration system operates between the pressure limits of 1.4MPa and 200 kPa with...

    A two-stage cascade refrigeration system operates between the pressure limits of 1.4MPa and 200 kPa with refrigerant-134a. The fluid leaves the condenser as a saturated liquid and is throttled to a flash chamber operating at 0.50 MPa. Part of the refrigerant evaporates in the flashing process, and this vapor is mixed with the refrigerant leaving the low-pressurin compressor. The liguid in the flash chamber iS throttled to the evaporator pressure and cools the refrigerated space. The mass flow rate of...

  • How does the COP of a cascade refrigeration system compare to the COP of a simple...

    How does the COP of a cascade refrigeration system compare to the COP of a simple vapor compression cycle operating between the same pressure limits?

  • Consider a two-stage cascade refrigeration system operating between the pressure limits of 1 MPa and 180...

    Consider a two-stage cascade refrigeration system operating between the pressure limits of 1 MPa and 180 kPa with refrigerant-134a as the working fluid. The refrigerant leaves the condenser as a saturated liquid and is throttled to a flash chamber operating at 0.4 MPa. Part of the refrigerant evaporates during this flashing process, and this vapor is mixed with the refrigerant leaving the low-pressure compressor. The mixture is then compressed to the condenser pressure by the high-pressure compressor. The liquid in...

  • Consider a two-stage cascade refrigeration system operatingbetween the pressure limits of 0.8 and 0.14 MPa....

    Consider a two-stage cascade refrigeration system operating between the pressure limits of 0.8 and 0.14 MPa. Each stage operates on the ideal vapor-compression refrigeration cycle with refrigerant-134a as the working fluid. Heat rejection from the lower cycle to the upper cycle takes place in an adiabatic counterflow heat exchanger where both streams enter at about 0.55 MPa. The mass flow rate of the refrigerant through the upper cycle is 0.24 kg/s(a) Illustrate the two-stage cascade refrigeration cycle on both a...

  • (100 points) Figure below shows the schematic diagram of a two-stage cascade refrigeration system (also called...

    (100 points) Figure below shows the schematic diagram of a two-stage cascade refrigeration system (also called the Economizer 2-Stage Refrigeration Cycle). Comparing to the cascade two-stage refrigeration system discussed in In-class Activity #10a, in this case, the flash chamber (now called Flash Intercooler) is still used but the mixing chamber is removed. The superheated vapor (2) out of the low-pressure compressor (1) is routed into the flash chamber, and the saturated vapor (3) out of the flash chamber enters directly...

  • Thermodynamics A two-stage vapour-compression refrigeration plant shown in Figure Q2 diagrammatically below is discharged with Refrigerant 12. Both compressors are single-acting, single-stage recipro...

    Thermodynamics A two-stage vapour-compression refrigeration plant shown in Figure Q2 diagrammatically below is discharged with Refrigerant 12. Both compressors are single-acting, single-stage reciprocating machines with four cylinders and as isentropic efficiency of 80%. They each have a stroke/bore ratio of 1.2 and run at 600 rev/min with a volumetric efficiency of 90%. The condenser, flash chamber and evaporator pressures are 10 bar, 3 bar and 1 bar respectively. Saturation states exist at points 5 and 3 and the vapour at...

  • The coefficient of performance-of vapor-compression refrigeration cycles

    a) The coefficient of performance-of vapor-compression refrigeration cycles improves when the refrigerant is subcooled before it enters the throttling valve Can the refrigerant be subcooled indefinitely to maximize this effect, or is there a lower limit? Explain brieflyb) A two-stage compression refrigeration system with a flash chamber is used to produce chilled water for a commercial building The refrigeration system operates between a pressure limits of 1 2 MPa and 200 kPa with refrigerant-134a as the working fluid. The refrigerant leaves...

  • DI/ A two-stage vapor compression cycle with 15 TR (refrigeration capacity) using ammonia as a refigerant...

    DI/ A two-stage vapor compression cycle with 15 TR (refrigeration capacity) using ammonia as a refigerant is carried out with water and flash inter-cooling and water sub-cooling as shown in figure 1 The operating pressure of the condenser is 12 bars, and the evaporator is 3 bars, while the flash tank operating pressure is 6 bars. The limiting temperature for inter-cooling and sub-cooling is 20 °C. Draw the cycle on p-H diagram showing all points, and then find the power...

  • Thermodynamics A two-stage vapour-compression refrigeration plant shown in Figure Q2 diagrammatically below is discharged with Refrigerant...

    Thermodynamics A two-stage vapour-compression refrigeration plant shown in Figure Q2 diagrammatically below is discharged with Refrigerant 12. Both compressors are single-acting, single-stage reciprocating machines with four cylinders and as isentropic efficiency of 80%. They each have a stroke/bore ratio of 1.2 and run at 600 rev/min with a volumetric efficiency of 90%. The condenser, flash chamber and evaporator pressures are 10 bar, 3 bar and 1 bar respectively. Saturation states exist at points 5 and 3 and the vapour at...

  • Problem 2 (30 pts): Consider a two-stage vapor-compression refrigeration system operating between the pressure limits of...

    Problem 2 (30 pts): Consider a two-stage vapor-compression refrigeration system operating between the pressure limits of 1.5 MPa and 150 kPa with refrigerant-134a as the working fluid. The refrigerant leaves the condenser as a saturated liquid and is throttled to a flash chamber operating at 0.45 MPa. The mass flow rate of the refrigerant through the low pressure compressor is 0.15 kg/s. Assuming the refrigerant leaves the evaporator as a saturated vapor, determine (a) the mass flow rate of the...
