If you compared the input and output signals for a given communication system and found that...
If you compared the input and output signals for a given communication system and found that they were not similar in shape and form, what might you conclude?
Homework Answers
It means signal has been distorted. It may be due to noise or faulty behaviour of components or scattering due to various building or any other objects.
Add Answer to:
If you compared the input and output signals for a given
communication system and found that...
A class C amplifier severely distorts the signal. How can we use a resonant tuned filter...
A class C amplifier severely distorts the signal. How can we use a resonant tuned filter to get the desired signal at the output? Explain. If you compared the input and output signals for a given communication system and found that they were not similar in shape and form, what might you conclude? Please write the answer for these questions in paragraph and clearly.
For the remainder of this problem, the signals (t) and y(t) denote the input and output, respecti...
For the remainder of this problem, the signals (t) and y(t) denote the input and output, respectively, of a stable LTI system whose (double-sided) frequency response is known to be w-4m 27T 4m H(w) = rect ( 2π with rect(t) denoting the unit-pulse function i.e., rect(t) 1 for lt| < 1/2 and is zero otherwise. Hint: Use sketches as a guide for answering each question most efficiently. (c) (15 points) Determine y(t) for all t given the applied input is...
1. Given the following AM rectifier detector circuit and its input and output signals: a t...
1. Given the following AM rectifier detector circuit and its input and output signals: a t m()] cos RIr) LA + m(o) ? m(1) Low-pass A + m()) cos m(t) a. [40 points] Find Va(t), the modulated input signal into the low-pass filter. b. [10 points] Show that (1/T)m(t) is the signal across the output resistor R.
A digital communication system uses the signals si(t) and s2(t) shown in Fig. 1 to t equally like...
A digital communication system uses the signals si(t) and s2(t) shown in Fig. 1 to t equally likely bits '0' and '1', respectively. The signaling duration is 4 seconds. The receiver uses a filter h(t) shown in Fig. 2 s1 (t) s2(t) 0 Figure 1: Set of signals in Problem 1 h(t) 0 Figure 2: h(t) in Problem 1 (a) Determine the parameter ri for this system. HINT: Remember that ri is equal to this convolution 81(t) * h(t) evaluated...
Consider a causal, linear and time-invariant system of continuous time, with an input-output relation that obeys...
Consider a causal, linear and time-invariant system of continuous time, with an input-output relation that obeys the following linear differential equation: y(t) + 2y(t) = x(t), where x(t) and y(t) stand for the input and output signals of the system, respectively, and the dot symbol over a signal denotes its first-order derivative with respect to time t. Use the Laplace transform to compute the output y(t) of the system, given the initial condition y(0-) = V2 and the input signal...
Question 5 An LTI system has an input signal given by x(t) = e-tu(t). The output...
Question 5 An LTI system has an input signal given by x(t) = e-tu(t). The output of the system is measured and found out to be given by y(t) = e-tu (t) + e-t+1 u(t-1). Find the system transfer function, H(s) 4 marks a. b. Find the system impulse response, h(t) 4 marks c. Describe in words what is the functionality of this svstem (i.e., what does it do on the inputs sigmal to produce the output simal?). [2 marks]
As a communications system engineer, you are asked to setup a communication system to serve a distance of 100m using an access point transmitting signals with power 20dBm at the frequency 2.4GHz. The...
As a communications system engineer, you are asked to setup a communication system to serve a distance of 100m using an access point transmitting signals with power 20dBm at the frequency 2.4GHz. The antennas used at the transmitter and receiver side have the gains shown in the picture below. The coaxial cables used to interface the systems to the antennas have losses shown in the picture below What is the received signal power in dBm at the input of the...

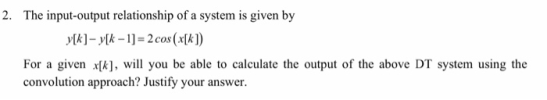

2. The input-output relationship of a system is given by yk]-ylk-11- 2 cos (x[kl) For a...
2. The input-output relationship of a system is given by yk]-ylk-11- 2 cos (x[kl) For a given x[k], will you be able to calculate the output of the above DT system using the convolution approach? Justify your answer
c) An excitation signal x(t) of frequency contents shown below is input to the communication system shown below Find and draw the output signal y(t) or Y(). # if the draw using MATLAB with the code w...
c) An excitation signal x(t) of
frequency contents shown below is input to the communication system
shown below Find and draw the output signal y(t) or Y().
# if the draw using MATLAB with the code will be better
c) An excitation signal x(t) of frequency contents shown below X(@) 2W 2W is input to the communication system shown below e(t) v(t) 0 -3w 3w cos(5wt) coe(3wt) Find and draw the output signal ) or Y(a).
c) An excitation signal...
A system is BIBO (bounded-input, bounded-output) stable if every bounded input X(t) yields a bounded output...
A system is BIBO (bounded-input, bounded-output) stable if every bounded input X(t) yields a bounded output y(t). A system is NOT BIBO stable if there exists any bounded input that results in an unbounded output. By "bounded", we mean that the magnitude of the signal is always less than some finite number. (The signal x(t)=sin(t) would be considered a bounded signal, but X(t)t would not be a bounded signal.) Signals that are infinite in time, but with a magnitude that...
For the remainder of this problem, the signals (t) and y(t) denote the input and output, respectively, of a stable LTI system whose (double-sided) frequency response is known to be w-4m 27T 4m H(w) = rect ( 2π with rect(t) denoting the unit-pulse function i.e., rect(t) 1 for lt| < 1/2 and is zero otherwise. Hint: Use sketches as a guide for answering each question most efficiently. (c) (15 points) Determine y(t) for all t given the applied input is...
1. Given the following AM rectifier detector circuit and its input and output signals: a t m()] cos RIr) LA + m(o) ? m(1) Low-pass A + m()) cos m(t) a. [40 points] Find Va(t), the modulated input signal into the low-pass filter. b. [10 points] Show that (1/T)m(t) is the signal across the output resistor R.
A digital communication system uses the signals si(t) and s2(t) shown in Fig. 1 to t equally likely bits '0' and '1', respectively. The signaling duration is 4 seconds. The receiver uses a filter h(t) shown in Fig. 2 s1 (t) s2(t) 0 Figure 1: Set of signals in Problem 1 h(t) 0 Figure 2: h(t) in Problem 1 (a) Determine the parameter ri for this system. HINT: Remember that ri is equal to this convolution 81(t) * h(t) evaluated...
Consider a causal, linear and time-invariant system of continuous time, with an input-output relation that obeys the following linear differential equation: y(t) + 2y(t) = x(t), where x(t) and y(t) stand for the input and output signals of the system, respectively, and the dot symbol over a signal denotes its first-order derivative with respect to time t. Use the Laplace transform to compute the output y(t) of the system, given the initial condition y(0-) = V2 and the input signal...
Question 5 An LTI system has an input signal given by x(t) = e-tu(t). The output of the system is measured and found out to be given by y(t) = e-tu (t) + e-t+1 u(t-1). Find the system transfer function, H(s) 4 marks a. b. Find the system impulse response, h(t) 4 marks c. Describe in words what is the functionality of this svstem (i.e., what does it do on the inputs sigmal to produce the output simal?). [2 marks]
As a communications system engineer, you are asked to setup a communication system to serve a distance of 100m using an access point transmitting signals with power 20dBm at the frequency 2.4GHz. The antennas used at the transmitter and receiver side have the gains shown in the picture below. The coaxial cables used to interface the systems to the antennas have losses shown in the picture below What is the received signal power in dBm at the input of the...
2. The input-output relationship of a system is given by yk]-ylk-11- 2 cos (x[kl) For a given x[k], will you be able to calculate the output of the above DT system using the convolution approach? Justify your answer
c) An excitation signal x(t) of
frequency contents shown below is input to the communication system
shown below Find and draw the output signal y(t) or Y().
# if the draw using MATLAB with the code will be better
c) An excitation signal x(t) of frequency contents shown below X(@) 2W 2W is input to the communication system shown below e(t) v(t) 0 -3w 3w cos(5wt) coe(3wt) Find and draw the output signal ) or Y(a).
c) An excitation signal...
A system is BIBO (bounded-input, bounded-output) stable if every bounded input X(t) yields a bounded output y(t). A system is NOT BIBO stable if there exists any bounded input that results in an unbounded output. By "bounded", we mean that the magnitude of the signal is always less than some finite number. (The signal x(t)=sin(t) would be considered a bounded signal, but X(t)t would not be a bounded signal.) Signals that are infinite in time, but with a magnitude that...
