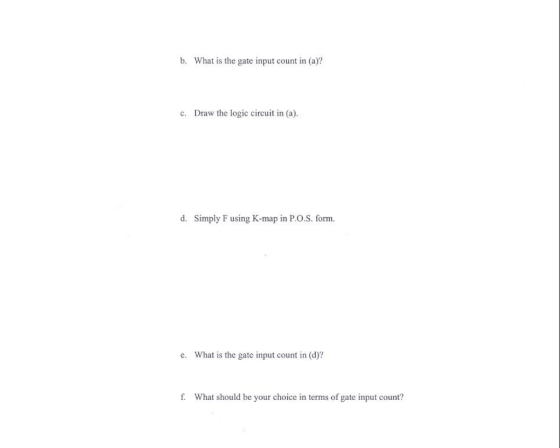

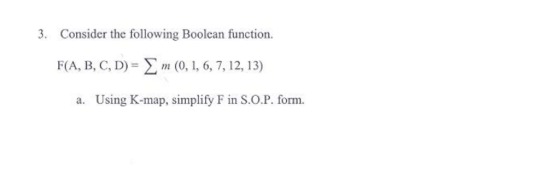

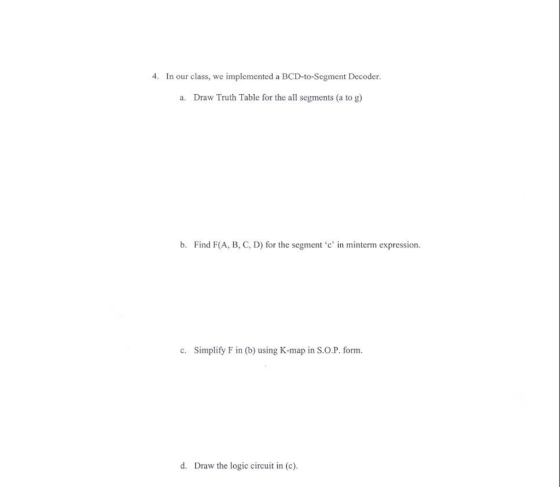

3. Consider the following Boolean function. F(A, B, C, D)-(0, 1, 6, 7, 12, 13) a. Using K-map, simplify F in S.O.P. formb. What is the gate input count in (a)? c. Draw the logic circu in (a) d. Simply F using K-map in P.O.S. form. c. What is the gate input count in (d)? f. What should be your choice in terms of gate input count?4. In our class, we implemented a BCD-to-Segment Decoder a. Draw Truth Table for the all segments (a to g) b. Find F(A, B, C, D) for the segment ‘c, in minterm expression. C. Simplify F in (b) using K-map in S.О.Р. form. d. Draw the logic circuit in (e).

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

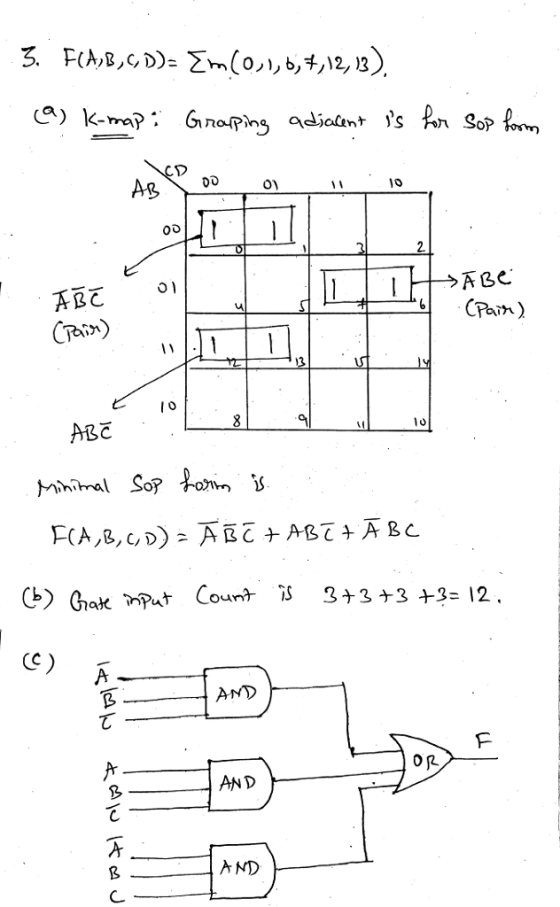

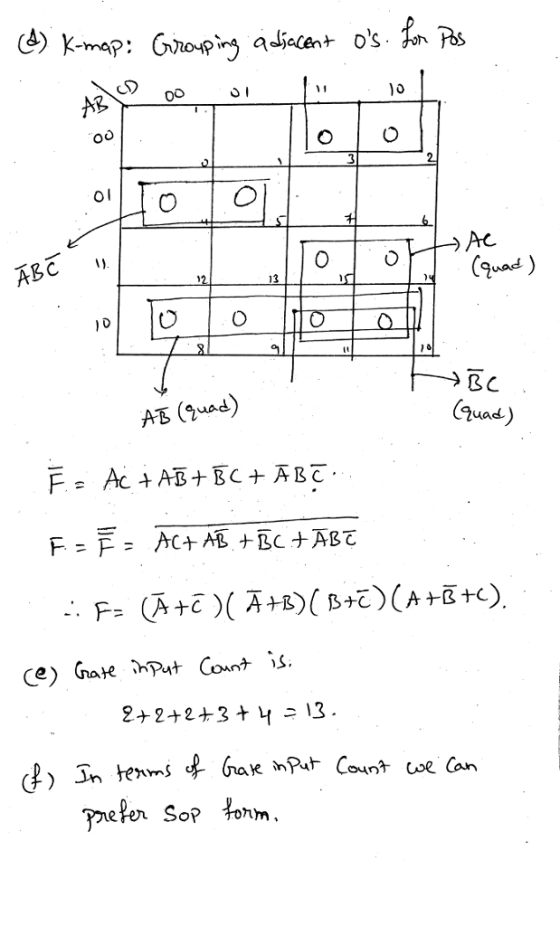

on ALC (pain) ABC AND AN D A NDol BC AE (uad) Uadl

0 0
