A light rope is wrapped several times around a large wheel with mass M= 18.0 kg...

A light rope is wrapped several times around a large wheel with mass M= 18.0 kg and radius R= 0.750 m. the wheel rotates without friction about a horizontal axis. The free end of the rope is tiedto a suitcase (mass m= 3.00 kg). The siutcase is released from the rest and decends a height h=4.00m to reach the ground. We assume that (i) the wheel is a solid uniform disk and (ii) the rope unwinds without slipping. Find the speed v of the suitcase just before the suitcase hits the ground using the energy method.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

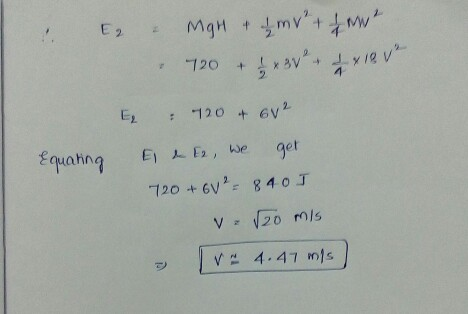

Answer #1

0 0
Add a comment
