A thin, light wire is wrapped around the rim of a wheel, as shown in the...

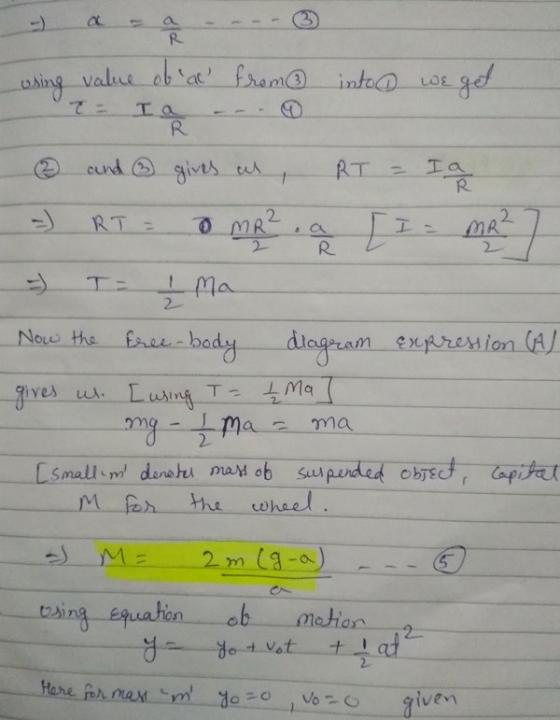

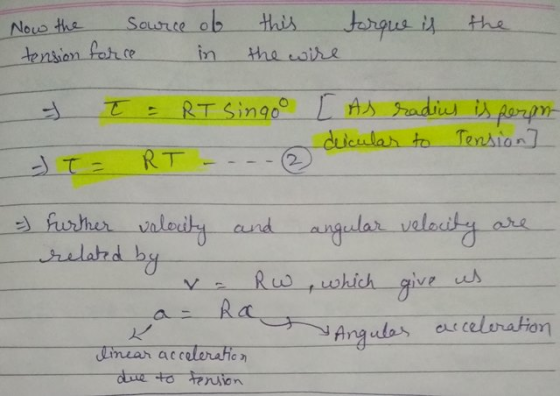

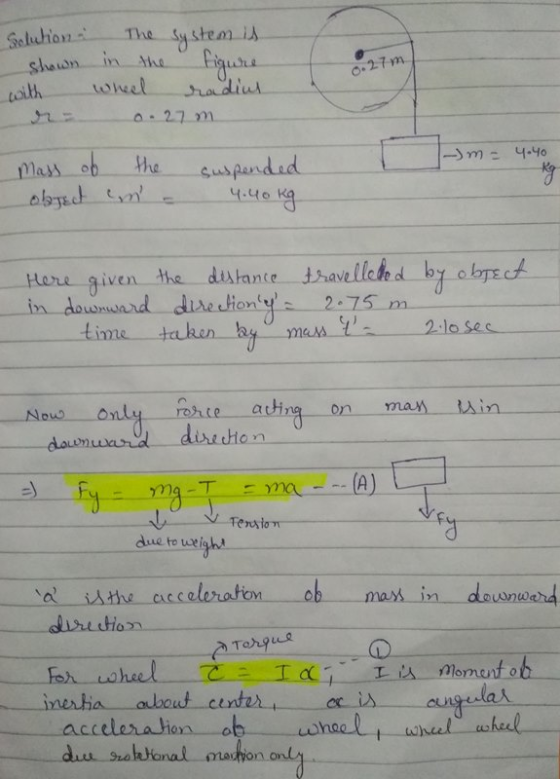

A thin, light wire is wrapped around the rim of a wheel, as shown in the following figure. The wheel rotates without friction about a stationary horizontal axis that passes through the center of the wheel. The wheel is a uniform disk with radius 0.270 m. An object of mass 4.40 kg is suspended from the free end of the wire. The system is released from rest and the suspended object descends with constant acceleration. (Figure 1)

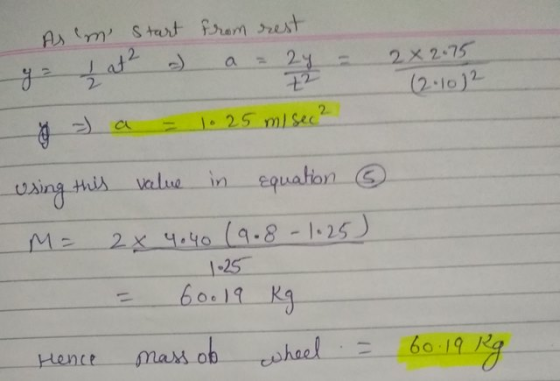

If the suspended object moves downward a distance of 2.75 m in 2.10 s, what is the mass of the wheel?
Express your answer with the appropriate units.
Homework Answers
Add Answer to:
A thin, light wire is wrapped around the rim of a wheel, as
shown in the...
Exercise 9.45 - Enhanced - with Solution 19 of 24 > Constants Part A A thin,...
Exercise 9.45 - Enhanced - with Solution 19 of 24 > Constants Part A A thin, light wire is wrapped around the rim of a wheel, as shown in the following figure. The wheel rotates without friction about a stationary horizontal axis that passes through the center of the wheel. The wheel is a uniform disk with radius 0.252 m. An object of mass 4.00 kg is suspended from the free end of the wire. The system is released from...
A uniform hollow disk has two pieces of thin light wire wrapped around its outer rim...
A uniform hollow disk has two pieces of thin light wire wrapped around its outer rim and is supported from the ceiling (See figure). Suddenly one of the wires breaks, and the remaining wire does not slip as the disk rolls down. The inner radius of the cylinder is 30 cm and the outer radius is 50 cm. Use energy conservation to find the speed of the center of this disk after it has fallen a distance of 2.20 m.
In the figure, a very light rope is wrapped around a wheel o radius R =...
In the figure, a very light rope is wrapped around a wheel o radius R = 2.0 m and does not slip. The wheel is mounted with frictionless bearings on an axle through Its center. A block of mass 14 kg is suspended from the end of the rope. When the system is released from rest it is observed that the block descends 10 m in 2.0 s. What is the moment of Inertia of the wheel?
A light rope is wrapped several times around a large wheel with mass M= 18.0 kg...
A light rope is wrapped several times around a large wheel with mass M= 18.0 kg and radius R= 0.750 m. the wheel rotates without friction about a horizontal axis. The free end of the rope is tiedto a suitcase (mass m= 3.00 kg). The siutcase is released from the rest and decends a height h=4.00m to reach the ground. We assume that (i) the wheel is a solid uniform disk and (ii) the rope unwinds without slipping. Find the...
A stone with mass m is suspended from the free end of a wire that is wrapped around the outer rim of a pulley, similar...
A stone with mass m is suspended from the free end of a wire
that is wrapped around the
outer rim of a pulley, similar to what is shown in the figure. The
pulley is a uniform disk with mass
M and radius R and turns on frictionless bearings. You measure that
the stone travels a distance h
during a time interval of t starting from rest.
A) Find the mass of the stone in terms of m, M, h...
A 2.00-kg stone is tied to a thin, light wire wrapped around the outer edge of...
A 2.00-kg stone is tied to a thin, light wire wrapped around the outer edge of the uniform 10.0-kg cylindrical pulley shown in the figure below (Figure 1). The inner diameter of the pulley is 60.0 cm, while the outer diameter is 1.00 m. The system is released from rest, and there is no friction at the axle of the pulley. (A) Find the acceleration of the stone. (m/s2 ) (B) Find the tension in the wire. (N) (C) Find...
A stone is suspended from the free end of a wire that is wrapped around the...
A stone is suspended from the free end of a wire that is wrapped around the outer rim of a pulley, similar to what is shown in (Figure 1) . The pulley is a uniform disk with mass 13.0 kg and radius 39.0 cm and turns on frictionless bearings. You measure that the stone travels a distance 12.8 m during a time interval of 3.50 s starting from rest. a) Find the mass of the stone. b) Find the tension...
A light rope is wrapped several times around a large wheel with a radius of 0.405 m . The wheel rotates in frictionless...
A light rope is wrapped several times around a large wheel with a radius of 0.405 m . The wheel rotates in frictionless bearings about a stationary horizontal axis, as shown in the figure (Figure 1) . The free end of the rope is tied to a suitcase with a mass of 13.0 kg . The suitcase is released from rest at a height of 4.00 m above the ground. The suitcase has a speed of 3.15 m/s when it...
A stone is suspended from the free end of a wire that is wrapped around the...
A stone is suspended from the free end of a wire that is wrapped
around the outer rim of a pulley, as shown in the figure (see the
figure (Figure 1) ). The pulley is a uniform disk with mass 10.0kg
and radius 47.0cm and turns on frictionless bearings. You measure
that the stone travels a distance 12.3m during a time interval of
3.20s starting from rest.
A.
Find the mass of the stone.
Take the free fall acceleration to...
Exercise 9.45 - Enhanced - with Solution 19 of 24 > Constants Part A A thin, light wire is wrapped around the rim of a wheel, as shown in the following figure. The wheel rotates without friction about a stationary horizontal axis that passes through the center of the wheel. The wheel is a uniform disk with radius 0.252 m. An object of mass 4.00 kg is suspended from the free end of the wire. The system is released from...
A uniform hollow disk has two pieces of thin light wire wrapped around its outer rim and is supported from the ceiling (See figure). Suddenly one of the wires breaks, and the remaining wire does not slip as the disk rolls down. The inner radius of the cylinder is 30 cm and the outer radius is 50 cm. Use energy conservation to find the speed of the center of this disk after it has fallen a distance of 2.20 m.
In the figure, a very light rope is wrapped around a wheel o radius R = 2.0 m and does not slip. The wheel is mounted with frictionless bearings on an axle through Its center. A block of mass 14 kg is suspended from the end of the rope. When the system is released from rest it is observed that the block descends 10 m in 2.0 s. What is the moment of Inertia of the wheel?
A stone with mass m is suspended from the free end of a wire
that is wrapped around the
outer rim of a pulley, similar to what is shown in the figure. The
pulley is a uniform disk with mass
M and radius R and turns on frictionless bearings. You measure that
the stone travels a distance h
during a time interval of t starting from rest.
A) Find the mass of the stone in terms of m, M, h...
A stone is suspended from the free end of a wire that is wrapped
around the outer rim of a pulley, as shown in the figure (see the
figure (Figure 1) ). The pulley is a uniform disk with mass 10.0kg
and radius 47.0cm and turns on frictionless bearings. You measure
that the stone travels a distance 12.3m during a time interval of
3.20s starting from rest.
A.
Find the mass of the stone.
Take the free fall acceleration to...
