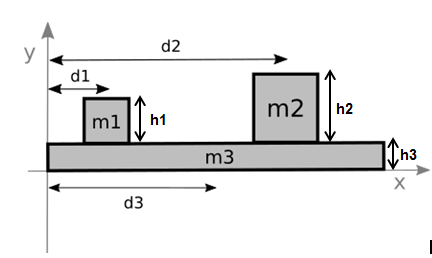

Determine the positions, x and y, of the center of mass for the system below. Use the following values: m1 = 1 kg, m2 = 6 kg, m3 = 4 kg, d1 = 30 cm, d2 = 80 cm, d3 = 60 cm (where d is the x distance for the center of the block). The height of the blocks are h1 = 20 cm, h2 = 30 cm, and the h3 = 10 cm. Assume the center of mass for each individual object is at the center of the object. What are the x and y coordinates? Please show how you got the answer.

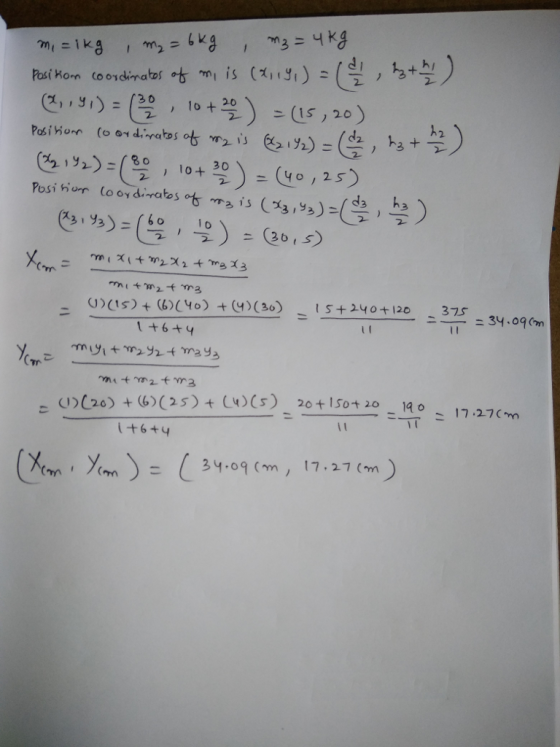

Homework Answers
