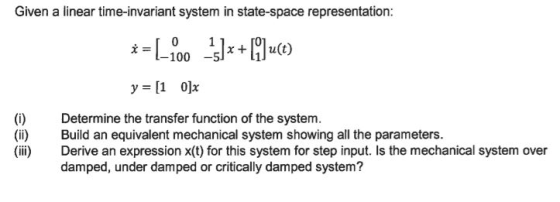

![Given a linear time-invariant system in state-space representation: -100 5*+u(t) y=[1 0]x (i) Determine the transfer function of the system. (ii) Build an equivalent mechanical system showing all the parameters. (ii) Derive an expression x(t) for this system for step input. Is the mechanical system over damped, under damped or critically damped system?](http://img.homeworklib.com/questions/04b6ebc0-3fa0-11eb-b474-a3bbaa6d4277.png?x-oss-process=image/resize,w_560)

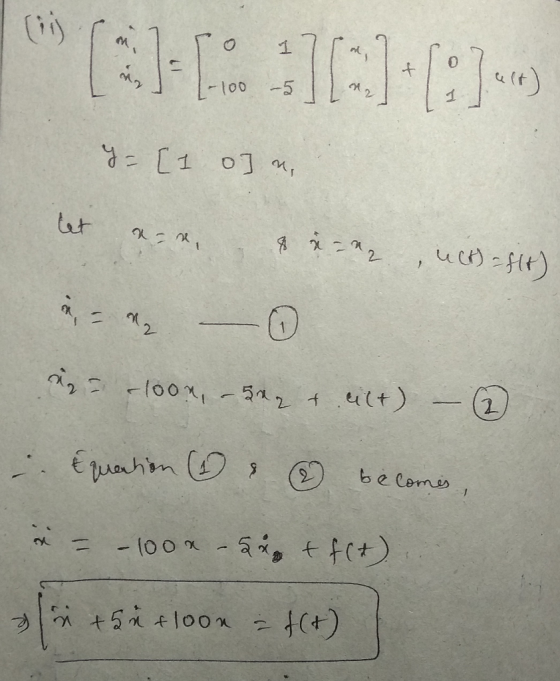

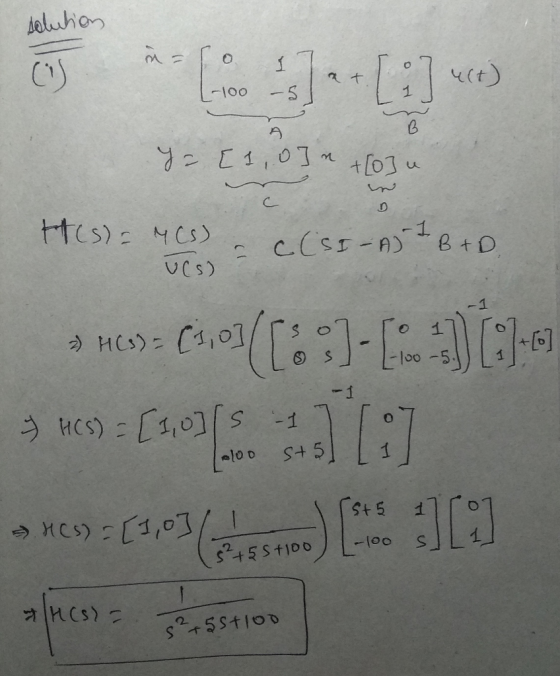

Homework Answers
iii.Matlab
code
clc, clear all,close all
a=[0 1;-100 -5];
b=[0;1];
c=[1 0];
sys=ss(a,b,c,0);
step(sys)

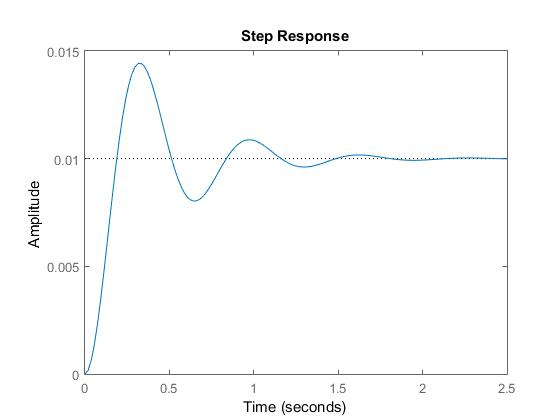

Result
