Homework Answers
Add Answer to:

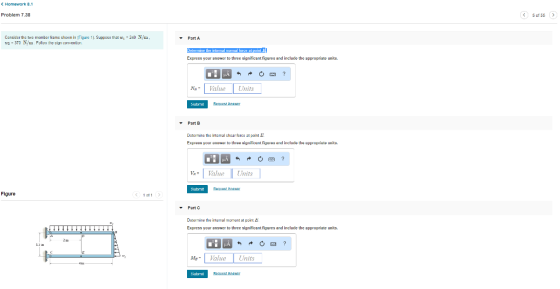

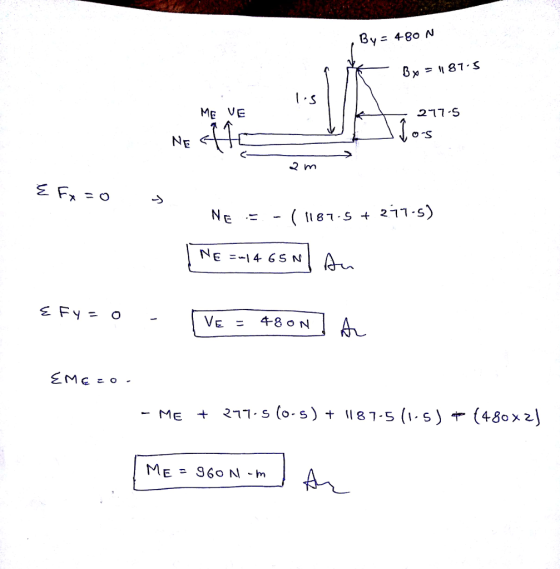

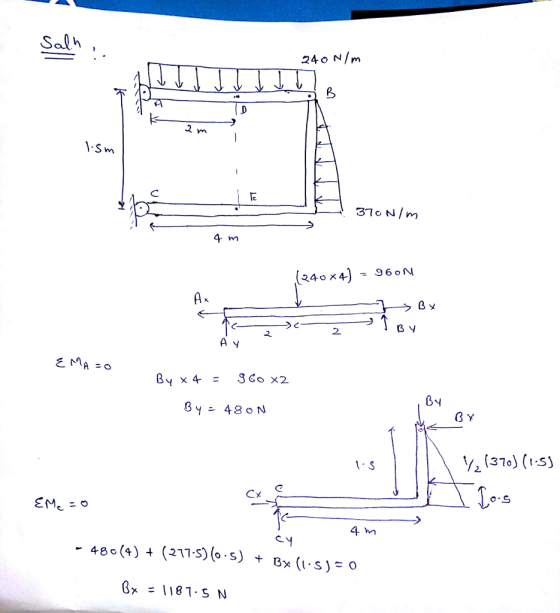

Homework 8.1 Problem 7.38 Sof 55> Conzider the two member framc shown in Figure 1 Suppesc...
Part C also ask for the internal bending moment at point D Consider the beam shown...
Part C also ask for the internal bending moment at point D
Consider the beam shown in (Figure 1). Take w = 240 N/m. Follow the sign convention. Determine the internal normal force at point D. Express your answer to three significant figures and include the appropriate units. VI HÅR O ? Np = Value Units Submit Request Answer Figure < 1 of 1 > Part B Determine the internal shear force at point D Express your answer to three...
Problem 7.15 Consider the object shown in (Figure 1) Suppose that w 48 kN/m Follow the...
Problem 7.15 Consider the object shown in (Figure 1) Suppose that w 48 kN/m Follow the sign convention Part A Determine the internal normal force at point C Express your answer to three significant figures and include the appropriate units. ?? M-1 Value Units Figure < 1011 > Submit Part B Determine the internal shear force at point C Express your answer to three significant figures and include the appropriate units. Submit
Consider the beam shown in (Figure 1). Suppose that t1 = 360 N/m, u = 180...
Consider the beam shown in (Figure 1). Suppose that t1 = 360 N/m, u = 180 N/m Follow the sign convention NC Value Units Submit Request Answer Part B Determine the internal shear force at point C Express your answer to three significant figures and include the appropriate units. uẢ ? Ve Value Units igure 1 of 1 Submit Previous Answers Request Answer * Incorrect; Try Again; 5 attempts remaining Part Determine the internal moment at point C Express your...
Consider the frame shown in (Figure 1). Assume the supports at A and B are fixed....
Consider the frame shown in (Figure 1). Assume the supports at A and B are fixed. EI is constant Part A Determine the internal end moment MAD acting on member AD of the frame at A measured clockwise. Express your answer to three significant figures and include the appropriate units. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. μΑ ? Value Units Submit Request Answer Part B Determine the internal end moment...
Consider the simply supported beam shown in (Figure 1). Suppose that P = 10 kN, w...
Consider the simply supported beam shown in (Figure 1). Suppose that P = 10 kN, w = 5 kN/m. Point D is located just to the left of the 10-kN concentrated load. Follow the sign convention Part A Determine the internal normal force at point C. Express your answer to three significant figures and include the appropriate units. НА ? Nc = Value Units Submit Request Answer Part B Determine the internal shear force at point C. Express your answer...
Consider the frame shown in (Figure 1). Assume the supports at A and B are fixed....
Consider the frame shown in (Figure 1). Assume the supports at A and B are fixed. EI is constant Part A Determine the internal end moment MAD acting on member AD of the frame at A measured clockwise. Express your answer to three significant figures and include the appropriate units. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. НА ? MAD = 12.375 kNm Submit Previous Answers Request Answer X Incorrect; Try...
Problem 6.43 Part A Determine the force in member CD and state if this member is in tension or compression Consider the truss shown in (F gure 1) Suppose that F 11 kN Express your answer to three sig...
Problem 6.43 Part A Determine the force in member CD and state if this member is in tension or compression Consider the truss shown in (F gure 1) Suppose that F 11 kN Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. FoValue Units Subrmit X Incorrect; Ty Again; 4 attempts remaining Part B Exprese your answer to three significant figures...
Problem 7.13 Consider the beam shown in (Figure 1). Suppose that M 6 kipft, P 3...
Problem 7.13 Consider the beam shown in (Figure 1). Suppose that M 6 kipft, P 3 kip, w 1.9 kip/ft and point D is located just to the left of the 3-kip load. Follow the sign convention. Part E Determine the internal shear force at section passing through point E Express your answer to three significant figures and include the appropriate units. Vg 860 kip Previous Answers Sub Correct Part F Determine the internal moment at section passing through point...
Problem 12.16 Consider the building frame shown in (Figure 1). Suppose that wi = 1.2 k/ft...
Problem 12.16 Consider the building frame shown in (Figure 1). Suppose that wi = 1.2 k/ft and w2 = 4 k/ft. Follow the sign convention for the internal loadings. Part A Determine (approximately) the internal moment at joint E caused by member EF. Express your answer using three significant figures. IVO AO vec ? Mg = 14.9 k.ft Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining Part B Determine (approximately) the internal moment at joint C...
Part A The beam shown in (Figure 1) weighs 300 Ib/ft Determine the magnitude of the...
Part A The beam shown in (Figure 1) weighs 300 Ib/ft Determine the magnitude of the internal normal force at point C. three significant figures and include the appropriate units. Express your answer Value Units N = Previous Answrs Request Answen Submit X Incorrect; Try Again; 4 attempts remaining Part B Figure 1 of 1 Determine the magnitude of the internal shear force at point C three significant figures and include the appropriate units. Express your answer ? Value Units...
Part C also ask for the internal bending moment at point D
Consider the beam shown in (Figure 1). Take w = 240 N/m. Follow the sign convention. Determine the internal normal force at point D. Express your answer to three significant figures and include the appropriate units. VI HÅR O ? Np = Value Units Submit Request Answer Figure < 1 of 1 > Part B Determine the internal shear force at point D Express your answer to three...
Problem 7.15 Consider the object shown in (Figure 1) Suppose that w 48 kN/m Follow the sign convention Part A Determine the internal normal force at point C Express your answer to three significant figures and include the appropriate units. ?? M-1 Value Units Figure < 1011 > Submit Part B Determine the internal shear force at point C Express your answer to three significant figures and include the appropriate units. Submit
Consider the beam shown in (Figure 1). Suppose that t1 = 360 N/m, u = 180 N/m Follow the sign convention NC Value Units Submit Request Answer Part B Determine the internal shear force at point C Express your answer to three significant figures and include the appropriate units. uẢ ? Ve Value Units igure 1 of 1 Submit Previous Answers Request Answer * Incorrect; Try Again; 5 attempts remaining Part Determine the internal moment at point C Express your...
Consider the frame shown in (Figure 1). Assume the supports at A and B are fixed. EI is constant Part A Determine the internal end moment MAD acting on member AD of the frame at A measured clockwise. Express your answer to three significant figures and include the appropriate units. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. μΑ ? Value Units Submit Request Answer Part B Determine the internal end moment...
Consider the simply supported beam shown in (Figure 1). Suppose that P = 10 kN, w = 5 kN/m. Point D is located just to the left of the 10-kN concentrated load. Follow the sign convention Part A Determine the internal normal force at point C. Express your answer to three significant figures and include the appropriate units. НА ? Nc = Value Units Submit Request Answer Part B Determine the internal shear force at point C. Express your answer...
Consider the frame shown in (Figure 1). Assume the supports at A and B are fixed. EI is constant Part A Determine the internal end moment MAD acting on member AD of the frame at A measured clockwise. Express your answer to three significant figures and include the appropriate units. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. НА ? MAD = 12.375 kNm Submit Previous Answers Request Answer X Incorrect; Try...
Problem 6.43 Part A Determine the force in member CD and state if this member is in tension or compression Consider the truss shown in (F gure 1) Suppose that F 11 kN Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. FoValue Units Subrmit X Incorrect; Ty Again; 4 attempts remaining Part B Exprese your answer to three significant figures...
Problem 7.13 Consider the beam shown in (Figure 1). Suppose that M 6 kipft, P 3 kip, w 1.9 kip/ft and point D is located just to the left of the 3-kip load. Follow the sign convention. Part E Determine the internal shear force at section passing through point E Express your answer to three significant figures and include the appropriate units. Vg 860 kip Previous Answers Sub Correct Part F Determine the internal moment at section passing through point...
Problem 12.16 Consider the building frame shown in (Figure 1). Suppose that wi = 1.2 k/ft and w2 = 4 k/ft. Follow the sign convention for the internal loadings. Part A Determine (approximately) the internal moment at joint E caused by member EF. Express your answer using three significant figures. IVO AO vec ? Mg = 14.9 k.ft Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining Part B Determine (approximately) the internal moment at joint C...
Part A The beam shown in (Figure 1) weighs 300 Ib/ft Determine the magnitude of the internal normal force at point C. three significant figures and include the appropriate units. Express your answer Value Units N = Previous Answrs Request Answen Submit X Incorrect; Try Again; 4 attempts remaining Part B Figure 1 of 1 Determine the magnitude of the internal shear force at point C three significant figures and include the appropriate units. Express your answer ? Value Units...
