Homework Answers
Doubt in this then comment below.. i will help you..
.
please thumbs up for this solution...thanks..
.
Add Answer to:

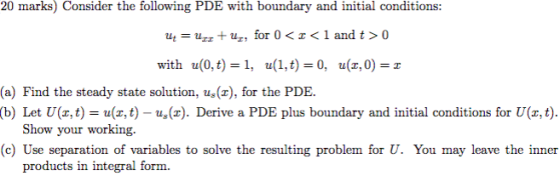

=T 20 marks) Consider the following PDE with boundary and initial conditions: U = Upx +...
3) (25 marks) Consider the following problem: u2(0,t) 3, u(2,t)u(2,t), t>0 u(,0) 0, 0
3) (25 marks) Consider the following problem: u2(0,t) 3, u(2,t)u(2,t), t>0 u(,0) 0, 0<2 (a) Find the steady state solution u,(x) of this problem. b) Write a new PDE, boundary conditions and initial conditions for U(x, t) - u(x, t)- Cox) (c) Use separation of variables to find a solution to the PDE, boundary conditions and initial conditions. You must justify each step of your solution carefully to get full marks. (Hint: if you are unable to write the eigenvalues...
2. In lectures we solved the heat PDE in 1 +1 dimensions with constant-temperature boundary conditions u(0,t)u(L,t) -0. If these boundary conditions change from zero temperature, we need to do a litt...
2. In lectures we solved the heat PDE in 1 +1 dimensions with constant-temperature boundary conditions u(0,t)u(L,t) -0. If these boundary conditions change from zero temperature, we need to do a little bit more work. Consider the following initial/boundary-value problem (IBVP) 2 (PDE) (BCs) (IC) u(0,t) = a, u(x,00, u(L, t)=b, st. and let's take L = 1, a = 1, b = 2 throughout for simplicity. Solve this problem using the following tricks b and A"(x)-0 (a) Find a...
Problem 1 (20 points) Consider the PDE for the function u(x, t) e 0<x<T, t> 0...
Problem 1 (20 points) Consider the PDE for the function u(x, t) e 0<x<T, t> 0 with the boundary conditions n(0, t) 0, u(T, t) 0, t> 0 and the initial condition 0 u(x, 0) 1+cos(2a), (a) Give a one-sentence physical interpretation of this problem. (b) Find the solution u(x, t) using a Fourier cosine series representation An (t) cos(nax) u(x,t)= Ao(t) + n=1
solve the PDE +u= at2 on 3 € (0,L), t > 0, with boundary conditions au...
solve the PDE
+u= at2 on 3 € (0,L), t > 0, with boundary conditions au 2x2 u(0,t) = 0, u(L, t) = 0 au and initial condition u(x,0) = f(x), at (x,0) = g(x) following the steps below. (a) Separate the variables and write differential equations for the functions (x) and h(t); pick the separation constant so that we recover a problem already studied. (b) Find the eigenfunctions and eigenvalues. (c) Write the general solution for this problem. (d)...
9. Consider the beam PDE for the transverse deflection u(x, t) of an elastic beam Utt...
9. Consider the beam PDE for the transverse deflection u(x, t) of an elastic beam Utt + Kurz = 0 for 0 < x <L (30) where K > 0 is a constant. Suppose the boundary conditions are given by (31) u(0, t) = uz(0,t) = 0 Uwx (L, t) = Uzzz(L, t) = 0 (32) and the initial conditions are (33) u(x,0) = (x) u1(x,0) = V(x) (34) Use separation of variables to find the general solution to the...
4. (5 marks) Consider the partial differential equation (1) for 1 € (0,2) and t >...
4. (5 marks) Consider the partial differential equation (1) for 1 € (0,2) and t > 0, with boundary conditions u(0, 1) = 0 ur(2, 1) = 0. Which of the following are solutions to the PDE and boundary conditions? In each case explain your answer. Note that initial conditions are not given. (Hint: it is not necessary to solve the problem above. (a) -3)*** e ular, 1) = Žen sin [(---) --] ~[(---) ;-)e-(1-1) e+(1-3)*(/2°1 u(3,t) - Cu COS...
1) (15 marks) Consider the following PDHE Uz(0, t) = 0, u(5,t)=1, t>0 u(x, 0)- 20...
1) (15 marks) Consider the following PDHE Uz(0, t) = 0, u(5,t)=1, t>0 u(x, 0)- 20 exp(-2), 0<x<!5 (a) Solve using separation of variables. You may leave the eigenfunction expansion coef (b) Plot the solution at t-1,3,5 and 30, along with the initial condition and steady state ficients in inner product form. solution, using 15 terms in your truncated expansion. You may use mupad to evaluate the eigenfunction expansion coefficients from part (a) which you left in inner product form
Consider the following second order PDE Uit – 9Uxx = 0, 0<x< < t > 0,...
Consider the following second order PDE Uit – 9Uxx = 0, 0<x< < t > 0, (A) and the following boundary value/initial conditions: Ux(t,0) = uſt, 5) = 0, t>0, u(0, x) = 44(0, x) = 4 cos’ x, 0<x< (BC) (IC) for the function u= u(t, x). a. (5 points) Find ordinary differential equations for functions T = T(t) and X = X(x) such that the function u(t, x) = T(t)X(x) satisfies the PDE (A). b. (5 points) Find...
3. In class we discussed the heat conduction problem with the boundary conditions a(0, t) 0, t4(1...
3. In class we discussed the heat conduction problem with the boundary conditions a(0, t) 0, t4(1,t)-0, t > 0 and the initial condition u(r,0) f(a) We found the solution to be of the form where (2n-1)n 1,2,3,. TL 20 Now consider the heat conduction problem with the boundary conditions u(0, t) 1,u(T, t)0, t>0 and the initial condition ur,0) 0. Find u(r,t). Hint: First you must find the steady state.
3. In class we discussed the heat conduction problem...
1) (15 marks) Consider the following PDHE Uz(0, t) = 0, u(5,t)=1, t>0 u(x, 0)- 20 exp(-2), 0<x<!5 (a) Solve using separation of variables. You may leave the eigenfunction expansion coef (b)...
1) (15 marks) Consider the following PDHE Uz(0, t) = 0, u(5,t)=1, t>0 u(x, 0)- 20 exp(-2), 0<x<!5 (a) Solve using separation of variables. You may leave the eigenfunction expansion coef (b) Plot the solution at t-1,3,5 and 30, along with the initial condition and steady state ficients in inner product form. solution, using 15 terms in your truncated expansion. You may use mupad to evaluate the eigenfunction expansion coefficients from part (a) which you left in inner product form...
3) (25 marks) Consider the following problem: u2(0,t) 3, u(2,t)u(2,t), t>0 u(,0) 0, 0<2 (a) Find the steady state solution u,(x) of this problem. b) Write a new PDE, boundary conditions and initial conditions for U(x, t) - u(x, t)- Cox) (c) Use separation of variables to find a solution to the PDE, boundary conditions and initial conditions. You must justify each step of your solution carefully to get full marks. (Hint: if you are unable to write the eigenvalues...
2. In lectures we solved the heat PDE in 1 +1 dimensions with constant-temperature boundary conditions u(0,t)u(L,t) -0. If these boundary conditions change from zero temperature, we need to do a little bit more work. Consider the following initial/boundary-value problem (IBVP) 2 (PDE) (BCs) (IC) u(0,t) = a, u(x,00, u(L, t)=b, st. and let's take L = 1, a = 1, b = 2 throughout for simplicity. Solve this problem using the following tricks b and A"(x)-0 (a) Find a...
Problem 1 (20 points) Consider the PDE for the function u(x, t) e 0<x<T, t> 0 with the boundary conditions n(0, t) 0, u(T, t) 0, t> 0 and the initial condition 0 u(x, 0) 1+cos(2a), (a) Give a one-sentence physical interpretation of this problem. (b) Find the solution u(x, t) using a Fourier cosine series representation An (t) cos(nax) u(x,t)= Ao(t) + n=1
solve the PDE
+u= at2 on 3 € (0,L), t > 0, with boundary conditions au 2x2 u(0,t) = 0, u(L, t) = 0 au and initial condition u(x,0) = f(x), at (x,0) = g(x) following the steps below. (a) Separate the variables and write differential equations for the functions (x) and h(t); pick the separation constant so that we recover a problem already studied. (b) Find the eigenfunctions and eigenvalues. (c) Write the general solution for this problem. (d)...
9. Consider the beam PDE for the transverse deflection u(x, t) of an elastic beam Utt + Kurz = 0 for 0 < x <L (30) where K > 0 is a constant. Suppose the boundary conditions are given by (31) u(0, t) = uz(0,t) = 0 Uwx (L, t) = Uzzz(L, t) = 0 (32) and the initial conditions are (33) u(x,0) = (x) u1(x,0) = V(x) (34) Use separation of variables to find the general solution to the...
4. (5 marks) Consider the partial differential equation (1) for 1 € (0,2) and t > 0, with boundary conditions u(0, 1) = 0 ur(2, 1) = 0. Which of the following are solutions to the PDE and boundary conditions? In each case explain your answer. Note that initial conditions are not given. (Hint: it is not necessary to solve the problem above. (a) -3)*** e ular, 1) = Žen sin [(---) --] ~[(---) ;-)e-(1-1) e+(1-3)*(/2°1 u(3,t) - Cu COS...
1) (15 marks) Consider the following PDHE Uz(0, t) = 0, u(5,t)=1, t>0 u(x, 0)- 20 exp(-2), 0<x<!5 (a) Solve using separation of variables. You may leave the eigenfunction expansion coef (b) Plot the solution at t-1,3,5 and 30, along with the initial condition and steady state ficients in inner product form. solution, using 15 terms in your truncated expansion. You may use mupad to evaluate the eigenfunction expansion coefficients from part (a) which you left in inner product form
Consider the following second order PDE Uit – 9Uxx = 0, 0<x< < t > 0, (A) and the following boundary value/initial conditions: Ux(t,0) = uſt, 5) = 0, t>0, u(0, x) = 44(0, x) = 4 cos’ x, 0<x< (BC) (IC) for the function u= u(t, x). a. (5 points) Find ordinary differential equations for functions T = T(t) and X = X(x) such that the function u(t, x) = T(t)X(x) satisfies the PDE (A). b. (5 points) Find...
3. In class we discussed the heat conduction problem with the boundary conditions a(0, t) 0, t4(1,t)-0, t > 0 and the initial condition u(r,0) f(a) We found the solution to be of the form where (2n-1)n 1,2,3,. TL 20 Now consider the heat conduction problem with the boundary conditions u(0, t) 1,u(T, t)0, t>0 and the initial condition ur,0) 0. Find u(r,t). Hint: First you must find the steady state.
3. In class we discussed the heat conduction problem...
1) (15 marks) Consider the following PDHE Uz(0, t) = 0, u(5,t)=1, t>0 u(x, 0)- 20 exp(-2), 0<x<!5 (a) Solve using separation of variables. You may leave the eigenfunction expansion coef (b) Plot the solution at t-1,3,5 and 30, along with the initial condition and steady state ficients in inner product form. solution, using 15 terms in your truncated expansion. You may use mupad to evaluate the eigenfunction expansion coefficients from part (a) which you left in inner product form...
