A 5m long steel struts connected by simply supported at the ends, and is made of...
A 5m long steel struts connected by simply supported at the ends, and is made of a steel tube 80mm in diameter with a 40mm bore. The strut is loaded in compression by a force of 35kN, which is applied parallel to the longitudinal axis. There is an initial curvature to be observed for this strut (E = 210GN/m2, Yield stress = 300MN/m2)

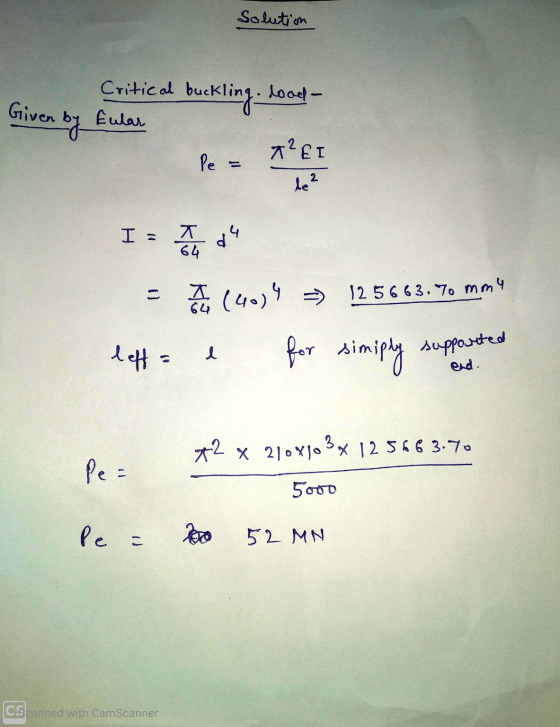

- Determine the critical buckling load of the initial curvature.

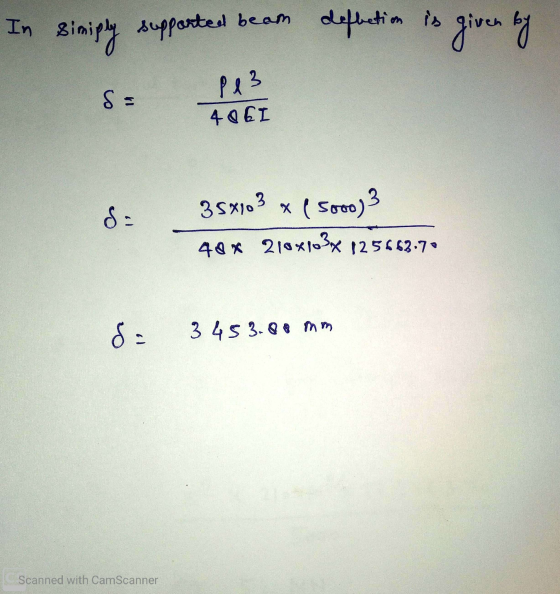

- Find the additional central deflection that is caused due to this load.
Homework Answers
Add Answer to:
A 5m long steel struts connected by simply supported at the
ends, and is made of...
4. A 5m long simply supported cantilever steel beam with a cross section of 0.1 x...
4. A 5m long simply supported cantilever steel beam with a cross section of 0.1 x 0.1 m 800 N,E shown below. Determine the overall deflection of the beam. W 650 N/m, F = 200 GPa) (Ans: -0.05 m) F 800 N W-650 N/m
A beam, 3 m long, is simply supported at its ends and is to carry a...
A beam, 3 m long, is simply supported at its ends and is to carry a point load of 30 kN at mid-span. If the beam is rectangular in section, with its depth equal to twice its width, determine suitable dimensions to limit the maximum bending stress at mid-span to 80 MN/m2.
2. A helical compression spring is made from No. 8 steel wire and is to carry a 100 lb static load at a deflection of 1 inch. The outside coil diameter of the spring is 0.972 inches. The spring ends...
2. A helical compression spring is made from No. 8 steel wire and is to carry a 100 lb static load at a deflection of 1 inch. The outside coil diameter of the spring is 0.972 inches. The spring ends are squared. Assume the torsional yield strength of the wire is 80000 psi, and the shear modulus is 11.4 Mpsi, determine (a) The static load corresponding to the yield strength. (b) The deflection that would be caused by the load...
A 49 in long simply supported hollow circular steel tube has a 1.68 in OD and...
A 49 in long simply supported hollow circular steel tube has a 1.68 in OD and 0.392 in wall thickness. The cross-section is shown below. Use an allowable bending stress of 1.022 kpsi for steel and find the maximum safe uniformly distributed load that the beam can carry, if the loading is in the direction. Maximum safe uniformly distributed load- lbf/in.
A steel I-section beam, simply supported at its two ends, is subjected to a uniformly distributed...
A steel I-section beam, simply supported at its two ends, is
subjected to a uniformly distributed load q (vertically downward)
over its central segment having a length of 2 m as shown in the
figure. It also shows the type of restraints (F/P/L) against
lateral torsional buckling of the beam at its four sections. The
section at the left end of the beam has only the lateral rotational
restraint. The load is causing bending of the beam about x-x (major...
Question 3 For the simply supported steel beam with cross section and loading shown (see Figure...
Question 3 For the simply supported steel beam with cross section and loading shown (see Figure 3a), knowing that uniformly distributed load w=60 kN/m, Young modulus E = 200 GPa, and yield stress Cyield=200 MPa (in both tension and compression). ул 15 mm w=60 kN/m ... 1 B A 15 mm + 300 mm IC - i 2.5m 1 1 15 mm 7.5m 1 150 mm Figure 3a (a) Check if: the beam is safe with respect to yielding (using...
6.1 A simply supported laminated composite beam (Figure 6.6) made of glass/epoxy is 75 mm long an...
6.1 A simply supported laminated composite beam (Figure
6.6) made of glass/epoxy is 75 mm long and has the layup of
[±30]2s. A uniform load is applied on the beam that is 5 mm in
width. Assume each ply is 0.125 mm thick and the properties of
glass/epoxy are from Table 2.1.
1. What is the maximum deflection of the
beam?
2. Find the local stresses at the top of the
laminate.
q- 100 N/m 0.075 m FIGURE 6.6 Uniformly...
A W410 × 60 steel beam (see Appendix B) is simply supported at its ends and carries a concentrate...
A W410 × 60 steel beam (see
Appendix B) is simply supported at its ends and carries a
concentrated load of P = 300 kN at the center of a 6.0-m
span. The W410 × 60 shape will be strengthened by adding two cover
plates of width b = 250 mm and thickness t = 16
mm to its flanges, as shown. Each cover plate is attached to its
flange by pairs of bolts spaced at intervals of s =...
4. A 5m long simply supported cantilever steel beam with a cross section of 0.1 x 0.1 m 800 N,E shown below. Determine the overall deflection of the beam. W 650 N/m, F = 200 GPa) (Ans: -0.05 m) F 800 N W-650 N/m
2. A helical compression spring is made from No. 8 steel wire and is to carry a 100 lb static load at a deflection of 1 inch. The outside coil diameter of the spring is 0.972 inches. The spring ends are squared. Assume the torsional yield strength of the wire is 80000 psi, and the shear modulus is 11.4 Mpsi, determine (a) The static load corresponding to the yield strength. (b) The deflection that would be caused by the load...
A 49 in long simply supported hollow circular steel tube has a 1.68 in OD and 0.392 in wall thickness. The cross-section is shown below. Use an allowable bending stress of 1.022 kpsi for steel and find the maximum safe uniformly distributed load that the beam can carry, if the loading is in the direction. Maximum safe uniformly distributed load- lbf/in.
A steel I-section beam, simply supported at its two ends, is
subjected to a uniformly distributed load q (vertically downward)
over its central segment having a length of 2 m as shown in the
figure. It also shows the type of restraints (F/P/L) against
lateral torsional buckling of the beam at its four sections. The
section at the left end of the beam has only the lateral rotational
restraint. The load is causing bending of the beam about x-x (major...
Question 3 For the simply supported steel beam with cross section and loading shown (see Figure 3a), knowing that uniformly distributed load w=60 kN/m, Young modulus E = 200 GPa, and yield stress Cyield=200 MPa (in both tension and compression). ул 15 mm w=60 kN/m ... 1 B A 15 mm + 300 mm IC - i 2.5m 1 1 15 mm 7.5m 1 150 mm Figure 3a (a) Check if: the beam is safe with respect to yielding (using...
6.1 A simply supported laminated composite beam (Figure
6.6) made of glass/epoxy is 75 mm long and has the layup of
[±30]2s. A uniform load is applied on the beam that is 5 mm in
width. Assume each ply is 0.125 mm thick and the properties of
glass/epoxy are from Table 2.1.
1. What is the maximum deflection of the
beam?
2. Find the local stresses at the top of the
laminate.
q- 100 N/m 0.075 m FIGURE 6.6 Uniformly...
