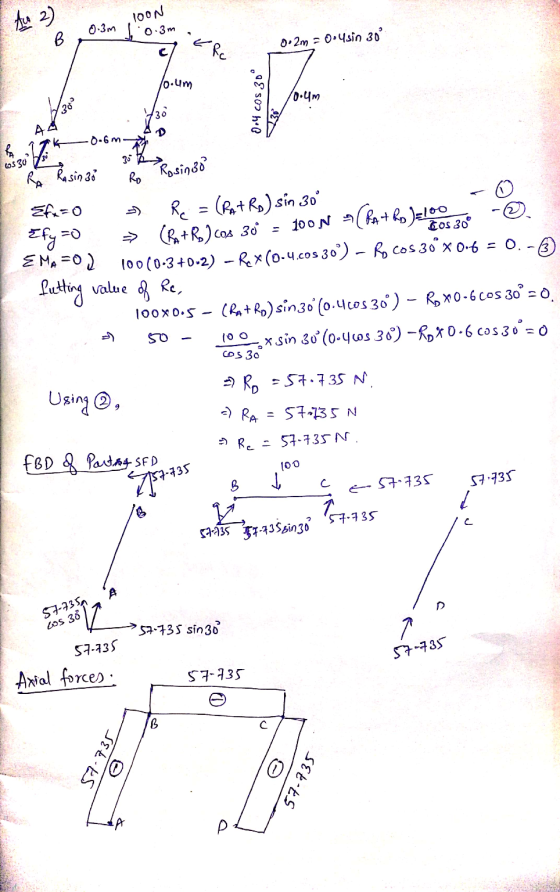

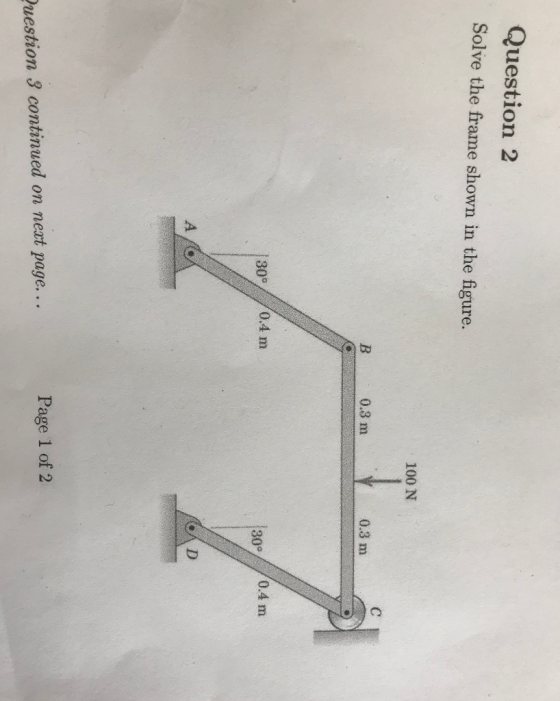

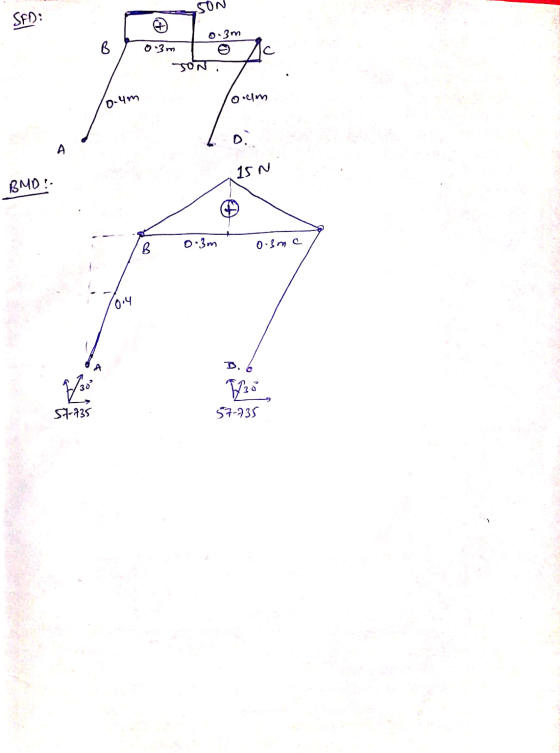

Question 2 Solve the frame shown in the figure. 100 N 0.3 m 0.3 m 30°...
QUESTION 2 a) The frame shown in Figure Q2 below supports a 180 N from its cable. Draw the free body diagram for the entire frame and member ADEF. Then, determine the reactions at A, D and E necessary for equilibrium. (8 marks) R-0.2 m 180 N 2 m 3 m 3 m 2.5 m 2 m Figure Q2 b) Analyse (with simple calculation) the new force required to pull the cable on the pulley, should the diameter of the...
2. Consider the frame structure shown in the figure right. There are three elements with the same material and cross-sectional properties (E-2, A=1 &に1). The first element is under the distributed load (w 10 per length) Answer the following questions. 2 2)3 (3 L-0.5 L=0.5 L-1 U5[0, 0, 0, 0.4, 0.3,-0.4, 0.2, 0.1, -0.3,0, 0,-0.2] Assume that the internal force vectors of the frame structure are given as below. Answer the questions 6) and 7) s- 05583s-0.72820.7282 0.5583 0.2791 0.7282...
SAN4701 OCT/NOV 2016 QUESTION 3 The frame shown in the Figure 3 is having a fixed support at A and a hinged at support D Determine the reactions at the supports and moments at the joints using flexıbility method El is constant 20 kN/m 3 m 40 kN 3 m Figure 3 [30 marks] TOTAL MARKS [100] UNISA 2016
SAN4701 OCT/NOV 2016 QUESTION 3 The frame shown in the Figure 3 is having a fixed support at A and a...
Normal force N, shear force V and bending moment M for
the frame shown in the figure
The method of cutting diagrams (using 8 cutting points in the
figure and their calculations
draw on paper).
please help.course name is building static 1.
15 kN/m 20 kNm 5 +6 T 2 m 3m a 20KN 7 B 2 A 8 HA 30 kN tu 3m . 2 4 3
Consider the frame shown in (Figure 1). Suppose that F = 900 N Figure < 1 of 1 2 m 200 N/m 2 m ULU Part A Determine the magnitude of the reaction at pin Express your answer to three significant figures and include the appropriate units. LE T: HÅ * O a ? Value SA Units Submit Request Answer Part B Determine the magnitude of the reaction at pin B. Express your answer to three significant figures and include...
Solve the circuit.
m/2 n in Figure Figure 3. (35 points)For the circuit shown in Figure C, determine the inductor currents (Is and i2) and the voltage across the switch (Vx) for all time t. 9OYO= 0=7 +. - *A + VE 2 ult) A Figure C
Question 2: Use the moment area method to solve the beam shown in Figure 4 and then draw BMD and SFD. Compare the results to STAADPro by evaluating the BMD and SFD using the program 150 kN 10 m 20kN/m Figure 4: Frame 2
Learning Goal: To solve for the support reactions of a frame. The frame shown in (Figure 1) is supported by a pin at A and a pin at D. The two members are connected by a pin at C. The dimensions are H = 1.4 m, H2 = 2.1 m, and L = 1.5 m The applied force P = 18 kN acts at the midpoint of BC, and the distributed load has intensity w = 1.4 kN/m Part C...
Solve all problems using the finite element stiffness method. For the rigid frame shown in Figure P5-4, determine (1) the nodal displacements and rotation at node 4, (2) the reactions, and (3) the forces in each element. Then check equilibrium at node 4. Finally, draw the shear force and bending moment diagrams for each element. LetE 30 x 103 ksi, A = 8 in,2 , and 1-800 in.4 for all elements. 20 kip 25 ft 25 ft- 40 ft 20...
#2) (35p.) Calculate the slopes "" and "c" in the frame shown in figure using “Slope-Deflection Equations". Do not solve the system. Do not draw any diagram. (E: Constant). ("A" is the fixed type of support and "C" is the pin). 20 kN/m 20 kN/m 12 D (1) B (1) ET 2m 30 KN + - 2 + Good Luck...
