Homework Answers
Add Answer to:

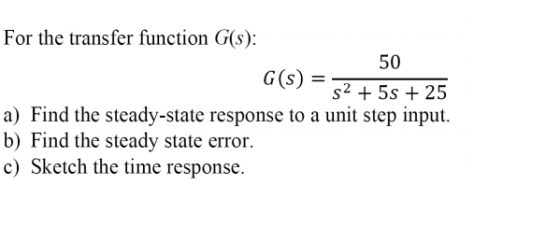

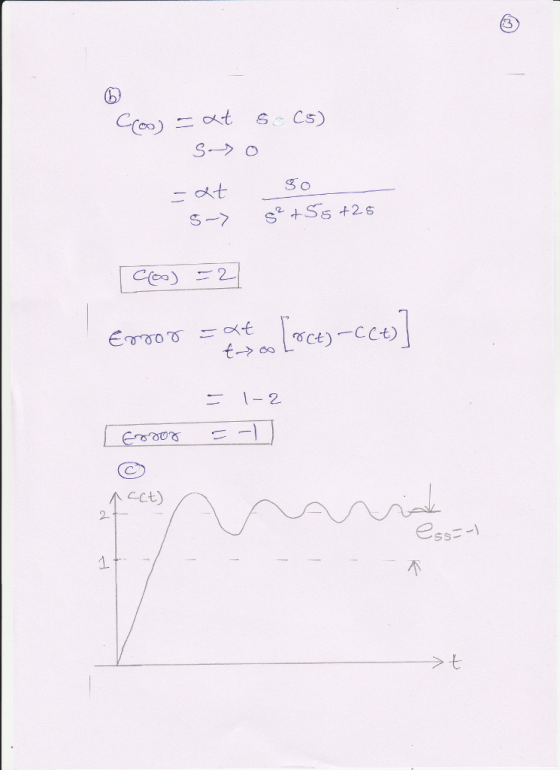

For the transfer function G(s): 50 G (s) = s2 +55+25 a) Find the steady-state response...
A unity feedback system with the forward transfer function G(s)=K/(s+1)(s+3)(s+6) is operating wi...
A unity feedback system with the forward transfer function
G(s)=K/(s+1)(s+3)(s+6) is operating with a closed-loop step
response that has 15% overshoot. Do the following:
a) Evaluate the steady-state error for a unit step input
b) Design a PI control to reduce the steady-state error to zero
without affecting its transient response
c) Evaluate the steady-state error and overshoot for a unit step
input to your compensated system
A unity feedback system with the forward transfer function G(s) is operating with...
A unity feedback system with the forward transfer function G (s) = s(s+2)(s15) is operating with ...
A unity feedback system with the forward transfer function G (s) = s(s+2)(s15) is operating with a closed-loop step response that has 15% overshoot. Do the following: a) Evaluate the settling time for a unit step input b) Design a PD control to yield a 15% overshoot but with a threefold reduction in settling time; c) Evaluate the settling time, overshoot, and steady-state error with the PD control.
A unity feedback system with the forward transfer function G (s) =...
A unity feedback system with the forward transfer function G)2)(s +5) is operating with a closed-...
A unity feedback system with the forward transfer function G)2)(s +5) is operating with a closed-loop step response that has 15% overshoot. Do the following: a) Evaluate the settling time for a unit step input; b) Design a PD control to yield a 15% overshoot but with a threefold reduction in settling time; c) Evaluate the settling time, overshoot, and steady-state error with the PD control.
A unity feedback system with the forward transfer function G)2)(s +5) is operating with...
Determine the gain K, to obtain a steady state error of 0.10: *Hint, What type is the transfer fu...
Determine the gain K, to obtain a steady state error of
0.10:
*Hint, What type is the transfer function?
**Assume the input is a unit input (i.e. step, ramp, or
parabola)
Determine the gain K, to obtain a steady state error of 0.10: "Hint, What type is the transfer function? "Assume the input is a unit input (i.e. step, ramp, or parabola) R(s) C(s) t- s2+12s+32 s2+5s+6
Determine the gain K, to obtain a steady state error of 0.10: "Hint,...
Problem 3 A unity feedback system has the loop transfer function G(s) = Kata) s(s +...
Problem 3 A unity feedback system has the loop transfer function G(s) = Kata) s(s + (a) Find the breakway and entry points on the real axis. (b) Find the gain and the roots when the real part of the complex roots is located at -2 (c) Sketch the root locus. Problem 4 The forward path G(s) of a unity feedback system with input R(s) and output Y (s) is given by G(o) 106I) (a) What is the type of...
Question #4 (25 points): Consider the open loop system that has the following transfer function 1 G(S) = 10s+ 35 Us...
Question #4 (25 points): Consider the open loop system that has the following transfer function 1 G(S) = 10s+ 35 Using Matlab: a) Plot the step response of the open loop system and note the settling time and steady state 15 pts error. b) Add proportional control K 300 and simulate the step response of the closed loop 15 pts system. Note the settling time, %OS and steady state error. c) Add proportional derivate control Kp 300, Ko 10 and...
PROBLEM: A unity feedback system with the forward transfer function K G(s) s(s+7) is operating with...
PROBLEM: A unity feedback system with the forward transfer function K G(s) s(s+7) is operating with a closed-loop step response that has 15% overshoot. Do the following: a. Evaluate the steady-state error for a unit ramp input. b. Design a lag compensator to improve the steady-state error by a factor of 20. c. Evaluate the steady-state error for a unit ramp input to your compensated system. d. Evaluate how much improvement in steady-state error was realized.
Q1. A closed-loop transfer function is G(s) Yo.108(s+3) els> ) Determine the steady-state error f...
Q1. A closed-loop transfer function is G(s) Yo.108(s+3) els> ) Determine the steady-state error for a unit step imput R(s)-14s Error signal is E(s) - R(s)-Y(s). Assume that the complex of the final value. ii) poles dominate and determine the overshoot and settling time to within 2%
Q1. A closed-loop transfer function is G(s) Yo.108(s+3) els> ) Determine the steady-state error for a unit step imput R(s)-14s Error signal is E(s) - R(s)-Y(s). Assume that the complex of the final...
A servomechanism position control has the plant transfer function G(s) =10/s(s + I )(s + 10)...
A servomechanism position control has the plant transfer function G(s) =10/s(s + I )(s + 10) You are to design a series of compensation transfer function Dc(s) in the unity feedback configuration to meet the following closed-loop specifications: -The response to a reference step input is to have no more than 16%overshoot. -The response to a ref ere nee step input is to have a rise time of no more than 0.4 sec. -The steady-state error to a unit ramp...
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root lo...
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain Kas a variable. s(s+4) (s2+4s+20) Determine asymptotes, centroid, breakaway point, angle of departure, and the gain at which root locus crosses ja-axis. A control system with type-0 process and a PID controller is shown below. Design the [8 parameters of the PID controller so that the following specifications are satisfied. =100 a)...
A unity feedback system with the forward transfer function
G(s)=K/(s+1)(s+3)(s+6) is operating with a closed-loop step
response that has 15% overshoot. Do the following:
a) Evaluate the steady-state error for a unit step input
b) Design a PI control to reduce the steady-state error to zero
without affecting its transient response
c) Evaluate the steady-state error and overshoot for a unit step
input to your compensated system
A unity feedback system with the forward transfer function G(s) is operating with...
A unity feedback system with the forward transfer function G (s) = s(s+2)(s15) is operating with a closed-loop step response that has 15% overshoot. Do the following: a) Evaluate the settling time for a unit step input b) Design a PD control to yield a 15% overshoot but with a threefold reduction in settling time; c) Evaluate the settling time, overshoot, and steady-state error with the PD control.
A unity feedback system with the forward transfer function G (s) =...
A unity feedback system with the forward transfer function G)2)(s +5) is operating with a closed-loop step response that has 15% overshoot. Do the following: a) Evaluate the settling time for a unit step input; b) Design a PD control to yield a 15% overshoot but with a threefold reduction in settling time; c) Evaluate the settling time, overshoot, and steady-state error with the PD control.
A unity feedback system with the forward transfer function G)2)(s +5) is operating with...
Determine the gain K, to obtain a steady state error of
0.10:
*Hint, What type is the transfer function?
**Assume the input is a unit input (i.e. step, ramp, or
parabola)
Determine the gain K, to obtain a steady state error of 0.10: "Hint, What type is the transfer function? "Assume the input is a unit input (i.e. step, ramp, or parabola) R(s) C(s) t- s2+12s+32 s2+5s+6
Determine the gain K, to obtain a steady state error of 0.10: "Hint,...
Problem 3 A unity feedback system has the loop transfer function G(s) = Kata) s(s + (a) Find the breakway and entry points on the real axis. (b) Find the gain and the roots when the real part of the complex roots is located at -2 (c) Sketch the root locus. Problem 4 The forward path G(s) of a unity feedback system with input R(s) and output Y (s) is given by G(o) 106I) (a) What is the type of...
Question #4 (25 points): Consider the open loop system that has the following transfer function 1 G(S) = 10s+ 35 Using Matlab: a) Plot the step response of the open loop system and note the settling time and steady state 15 pts error. b) Add proportional control K 300 and simulate the step response of the closed loop 15 pts system. Note the settling time, %OS and steady state error. c) Add proportional derivate control Kp 300, Ko 10 and...
PROBLEM: A unity feedback system with the forward transfer function K G(s) s(s+7) is operating with a closed-loop step response that has 15% overshoot. Do the following: a. Evaluate the steady-state error for a unit ramp input. b. Design a lag compensator to improve the steady-state error by a factor of 20. c. Evaluate the steady-state error for a unit ramp input to your compensated system. d. Evaluate how much improvement in steady-state error was realized.
Q1. A closed-loop transfer function is G(s) Yo.108(s+3) els> ) Determine the steady-state error for a unit step imput R(s)-14s Error signal is E(s) - R(s)-Y(s). Assume that the complex of the final value. ii) poles dominate and determine the overshoot and settling time to within 2%
Q1. A closed-loop transfer function is G(s) Yo.108(s+3) els> ) Determine the steady-state error for a unit step imput R(s)-14s Error signal is E(s) - R(s)-Y(s). Assume that the complex of the final...
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain Kas a variable. s(s+4) (s2+4s+20) Determine asymptotes, centroid, breakaway point, angle of departure, and the gain at which root locus crosses ja-axis. A control system with type-0 process and a PID controller is shown below. Design the [8 parameters of the PID controller so that the following specifications are satisfied. =100 a)...
