5. Model tests are to be performed to study the flow through a large valve having...
Model tests are to be performed to study the flow through a large valve having a...

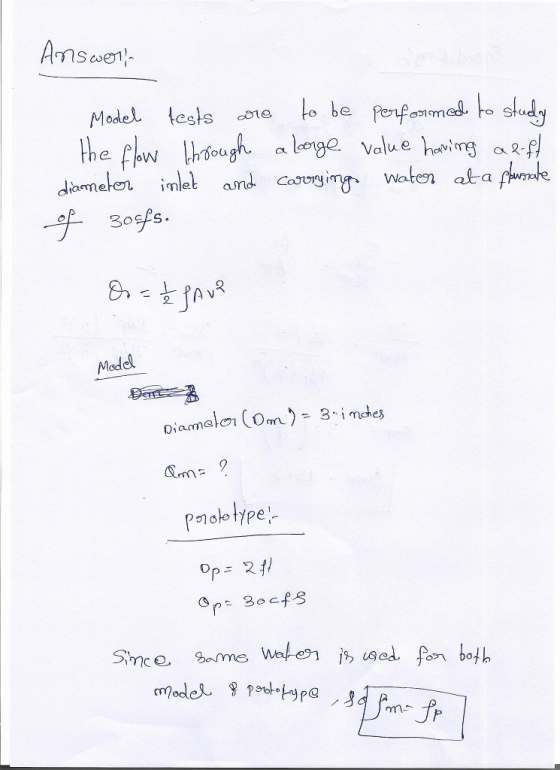

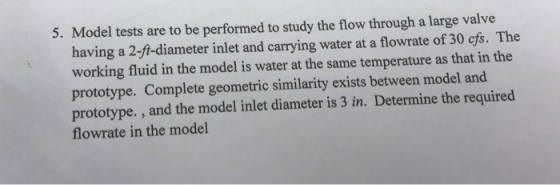

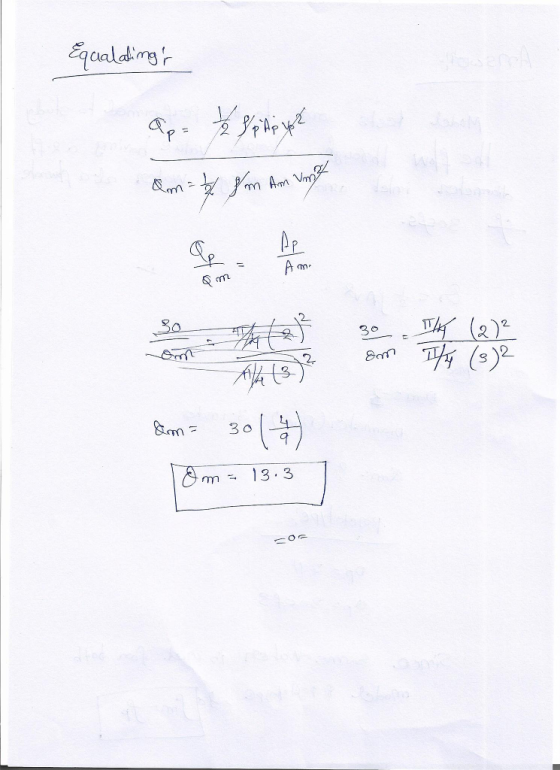

Model tests are to be performed to study the flow through a large valve having a 2-ft-diameter inlet and carrying water at a volume flow rate of 30 cfs. The working fluid in the model is water at the same temperature as that in the prototype. Complete geometric similarity exists between model and prototype, and the model inlet diameter is 3 in. Determine the required volume flow rate in the model. 3.75 cfs 1.875 cfs 7.5 cfs 0.9 cfs
