CORRECT ANSWER IS 419.79.
PLEASE SHOW CALCULATIONS
Homework Answers
Add Answer to:
CORRECT ANSWER IS 419.79.
PLEASE SHOW CALCULATIONS
A block of mass M1 is fired at a...
A block of mass M1 is fired horizontally at a second block of mass M2 which...

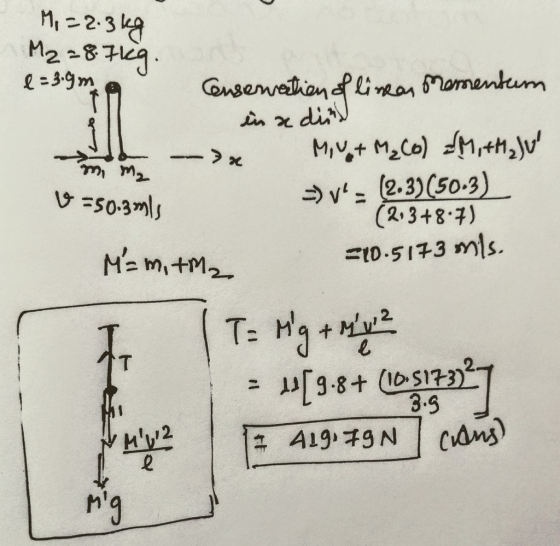

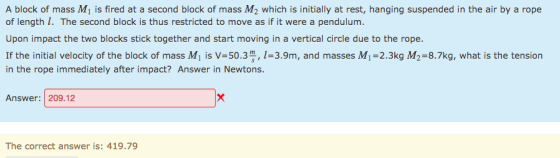

A block of mass M1 is fired horizontally at a second block of mass M2 which is initially at rest, hanging suspended in the air by a rope of length I. The second block is thus restricted to move as if it were a f pendulum. ing in a vertical circle due to the rope. If the initial velocity of the block of mass Mi is V-47.81' 1-4.9m, and masses M.-1.2kg Me-24kg what is the tension in the rope immediately...
A block of mass Mı sits on a table, with no friction, and a block of...
A block of mass Mı sits on a table, with no friction, and a block of mass M2 is suspended by a cord of negligible mass over a frictionless pulley. At t = 0s the 4) blocks (initially at rest) are released, and the hanging mass starts to descend. Student X says: "The hanging mass is pulling down on the rope, so the tension in the rope is M.g. That's the force on the block on the table, so that...
Please help, I dont understand this... A block of mass m1 = 34 kg on a...
Please help, I dont understand this... A block of mass m1 = 34 kg on a horizontal surface is connected to a mass m2 = 16.5 kg that hangs vertically as shown in the figure below. The two blocks are connected by a string of negligible mass passing over a frictionless pulley. The coefficient of kinetic friction between m1 and the horizontal surface is 0.23. (a) What is the magnitude of the acceleration (in m/s2) of the hanging mass? (b)...
Two blocks are connected by a massless rope.
Two blocks are connected by a massless rope. The rope passes over an ideal (frictionless and massless) pulley such that one block with mass m1=13.75 kg is on a horizontal table and the other block with mass m2=6.5 kg hangs vertically. Both blocks experience gravity and the tension force, T. Use the coordinate system specified in the diagram. Part (a) Assuming friction forces are negligible, write an expression, using only the variables provided, for the acceleration that the block of mass...
rni 0 A block of mass m1- 21.9 kg is at rest on a plane inclined...
rni 0 A block of mass m1- 21.9 kg is at rest on a plane inclined at 28.0 above the horizontal. The block is connected via a rope and mass less pulley system to another block of mass m2-24.1 kg, as shown in the figure. The coefficient kinetic friction between block 1 and the inclined plane is μ,-0.15. If the blocks are released from rest, what is the acceleration of m2? what is a tension force T on the rope?
A block of mass m1 = 36 kg on a horizontal surface is connected to a...
A block of mass m1 = 36 kg on a horizontal surface is connected to a mass m2 = 17.1 kg that hangs vertically as shown in the figure below. The two blocks are connected by a string of negligible mass passing over a frictionless pulley. The coefficient of kinetic friction between m1 and the horizontal surface is 0.25. (a) What is the magnitude of the acceleration (in m/s2) of the hanging mass? ____ m/s2 (b) Determine the magnitude of...
A block of mass m1 = 39 kg on a horizontalsurface is connected to a...
A block of mass m1 = 39 kg on a horizontal
surface is connected to a mass m2 = 22.5 kg
that hangs vertically as shown in the figure below. The two blocks
are connected by a string of negligible mass passing over a
frictionless pulley. The coefficient of kinetic friction betweenm1 and the horizontal surface is 0.23.A) What is the magnitude of the acceleration (in
m/s2) of the hanging mass?B) Determine the magnitude of the tension (in N) in...
A block of mass m1 = 36 kg on a horizontal surface is connected to a...
A block of mass m1 = 36 kg on a horizontal surface is connected
to a mass m2 = 23.0 kg that hangs vertically as shown in
the figure below. The two blocks are connected by a string of
negligible mass passing over a frictionless pulley. The coefficient
of kinetic friction between m1 and the
horizontal surface is 0.30.
(Assume gravity acts toward the +ydirection and the
+x-axis is parallel to the surface and to the
right.)
(a) What is...
A light rope is attached to a block with mass 3.40 kg that rests on a...
A light rope is attached to a block with mass 3.40 kg that rests on a frictionless, horizontal surface. The horizontal rope passes over a frictionless, massless pulley, and a block with mass m is suspended from the other end. When the blocks are released, the tension in the rope is 19.1 N . c. What is the acceleration of either block? Express your answer with the appropriate units. d. Find m. Express your answer with the appropriate units. e....
A block of mass m1 = 3.23 kg on a frictionless plane inclined at angle θ...
A block of mass m1 = 3.23 kg on a frictionless plane inclined at angle θ = 32.3° is connected by a cord over a massless, frictionless pulley to a second block of mass m2 = 2.60 kg hanging vertically (see the figure). (a) What is the acceleration of the hanging block (choose the positive direction down)? (b) What is the tension in the cord?
A block of mass M1 is fired horizontally at a second block of mass M2 which is initially at rest, hanging suspended in the air by a rope of length I. The second block is thus restricted to move as if it were a f pendulum. ing in a vertical circle due to the rope. If the initial velocity of the block of mass Mi is V-47.81' 1-4.9m, and masses M.-1.2kg Me-24kg what is the tension in the rope immediately...
A block of mass Mı sits on a table, with no friction, and a block of mass M2 is suspended by a cord of negligible mass over a frictionless pulley. At t = 0s the 4) blocks (initially at rest) are released, and the hanging mass starts to descend. Student X says: "The hanging mass is pulling down on the rope, so the tension in the rope is M.g. That's the force on the block on the table, so that...
rni 0 A block of mass m1- 21.9 kg is at rest on a plane inclined at 28.0 above the horizontal. The block is connected via a rope and mass less pulley system to another block of mass m2-24.1 kg, as shown in the figure. The coefficient kinetic friction between block 1 and the inclined plane is μ,-0.15. If the blocks are released from rest, what is the acceleration of m2? what is a tension force T on the rope?
A block of mass m1 = 39 kg on a horizontal
surface is connected to a mass m2 = 22.5 kg
that hangs vertically as shown in the figure below. The two blocks
are connected by a string of negligible mass passing over a
frictionless pulley. The coefficient of kinetic friction betweenm1 and the horizontal surface is 0.23.A) What is the magnitude of the acceleration (in
m/s2) of the hanging mass?B) Determine the magnitude of the tension (in N) in...
A block of mass m1 = 36 kg on a horizontal surface is connected
to a mass m2 = 23.0 kg that hangs vertically as shown in
the figure below. The two blocks are connected by a string of
negligible mass passing over a frictionless pulley. The coefficient
of kinetic friction between m1 and the
horizontal surface is 0.30.
(Assume gravity acts toward the +ydirection and the
+x-axis is parallel to the surface and to the
right.)
(a) What is...
