A light rope is attached to a block with mass 3.40 kg that rests on a...
A light rope is attached to a block with mass 3.40 kg that rests on a frictionless, horizontal surface. The horizontal rope passes over a frictionless, massless pulley, and a block with mass m is suspended from the other end. When the blocks are released, the tension in the rope is 19.1 N .

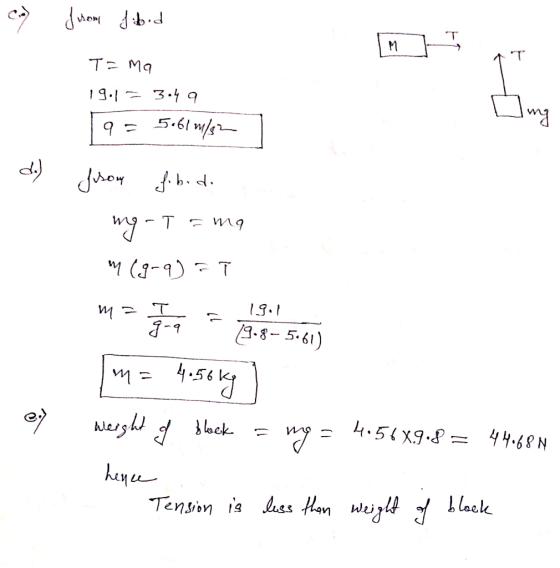

c. What is the acceleration of either block?
Express your answer with the appropriate units.
d. Find m.
Express your answer with the appropriate units.
e. How does the tension compare to the weight of the hanging block?
