(Show all Work!!) Question 9 A 14-kg block rests on a level frictionless surface and is...

(Show all Work!!)

Question 9

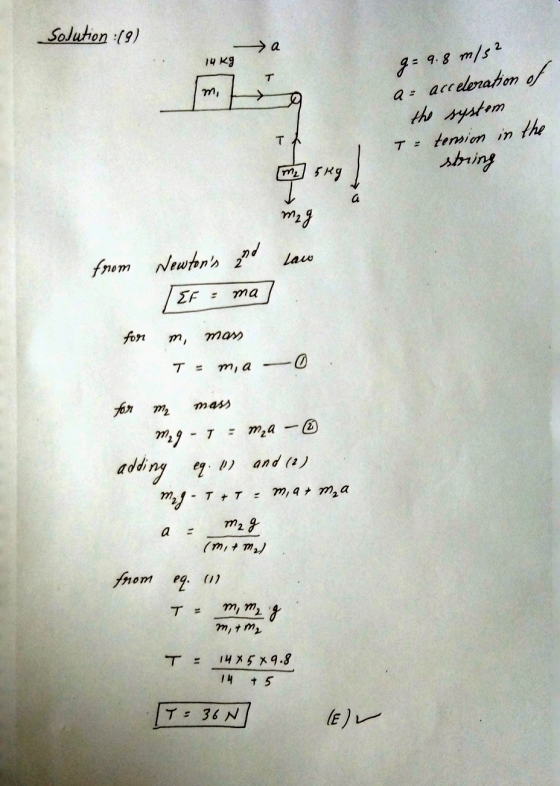

A 14-kg block rests on a level frictionless surface and is attached by a light string to a 5.0-kg hanging mass where the string passes over a massless frictionless pulley. If g = 9.8 m/s 2, what is the tension in the connecting string?

A) 49 N

B) 190 N

C) 2.6 N

D) 21

E) 36 N

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
(Show all Work!!) Question 9 A 14-kg block rests on a level frictionless surface and is...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 3. A 5.00 kg block rests on a level frictionless surface and is attached by a...

    3. A 5.00 kg block rests on a level frictionless surface and is attached by a light string to an 7.00 kg hanging mass where the string passes over a massless, frictionless pulley. Ifg=9.80 m/s, what is the tension in the connecting string? 4. A light string connects a 16 kg mass and a 4.0 kg mass over a massless, frictionless pulley. (a) If g= 9.8 m/s, what is the acceleration of the system when released? (b) What is the...

  • physics

    A 15-kg block rests on a level frictionless surface and is attached by a light string to a 5.0-kg hangingmass where the string passes over a massless frictionless pulley. If g = 9.8 m/s2, what is the tensionin the connecting string?

  • 2. A 40.0 kg wagon is towed up a hill inclined at 17.5° with respect to...

    2. A 40.0 kg wagon is towed up a hill inclined at 17.5° with respect to the horizontal, The tow rope is parallel to the incline and has a tension of 542 N. Assume that the wagon starts from rest at the bottom of the hill, and neglect friction. (a) How fast is the wagon going after moving 73 m up the hill? (b) What is the magnitude of the normal force acting on the wagon? 3. A 5.00 kg...

  • A light rope is attached to a block with mass 3.40 kg that rests on a...

    A light rope is attached to a block with mass 3.40 kg that rests on a frictionless, horizontal surface. The horizontal rope passes over a frictionless, massless pulley, and a block with mass m is suspended from the other end. When the blocks are released, the tension in the rope is 19.1 N . c. What is the acceleration of either block? Express your answer with the appropriate units. d. Find m. Express your answer with the appropriate units. e....

  • 1. Two forces are applied to a car in an effort to move it, as shown...

    1. Two forces are applied to a car in an effort to move it, as shown in the Figure below. (a) What is the resultant magnitude and direction of these two forces? (h) If the car has a mass of 3500 kg. what magnitude acceleration does it have? Ignore friction 10 450 M 400 N 2. A 40.0 kg wagon is towed up a hill inclined at 17.5° with respect to the horizontal. The tow rope is parallel to the...

  • A block A with a mass of 3 kg rests on a horizontal table top. The...

    A block A with a mass of 3 kg rests on a horizontal table top. The coefficient of kinetic friction, μk = 0.5. A horizontal string is attached to A and passes over a massless, frictionless pulley, and block B with mass 2 kg hangs from it. Because of the pull of gravity, the masses accelerate. What is the Tension in the string (in Newtons)?

  • A light rope is attached to a block with mass 3.00 kg that rests on a...

    A light rope is attached to a block with mass 3.00 kg that rests on a frictionless, horizontal surface. The horizontal rope passes over a frictionless, massless pulley, and a block with mass m is suspended from the other end. When the blocks are released, the tension in the rope is 15.3 N . part a) Draw free-body diagram for the 3.00-kg block. Assume block is moving to the right. Draw the vectors starting at a black dot. The location...

  • A 18 kg block with a pulley attached slides along a frictionless surface. It is connected...

    A 18 kg block with a pulley attached slides along a frictionless surface. It is connected by a massless string to a 5.5 kg block via the arrangement shown. The acceleration of gravity is 9.81 m/s 2 . Find the horizontal distance the 18kg block moves when the 5.5 kg block descends a distance of 11.4 cm. The pulleys are massless and frictionless. Answer in units of cm. Find the acceleration of the 18 kg block. Answer in units of...

  • A 5.00 kg block rests on a level table. The coefficient of friction between the block...

    A 5.00 kg block rests on a level table. The coefficient of friction between the block and the table is 0.55. A 4.00 kg mass is attached to the block by a string of negligible mass passed over a light frictionless pulley (as shown below). What is the acceleration of the block when the 4.00 kg weight is released?

  • A 5.8- kg concrete block rests on a level table. A 3.9- kg mass is attached...

    A 5.8- kg concrete block rests on a level table. A 3.9- kg mass is attached to the block by a string passing over a light, frictionless pulley. If the acceleration of the block is measured to be 1.4 m/s2, what is the coefficient of friction between the block and the table?
