A 5.8- kg concrete block rests on a level table. A 3.9- kg mass is attached...

A 5.8- kg concrete block rests on a level table. A 3.9- kg mass is attached to the block by a string passing over a light, frictionless pulley. If the acceleration of the block is measured to be 1.4 m/s2, what is the coefficient of friction between the block and the table?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

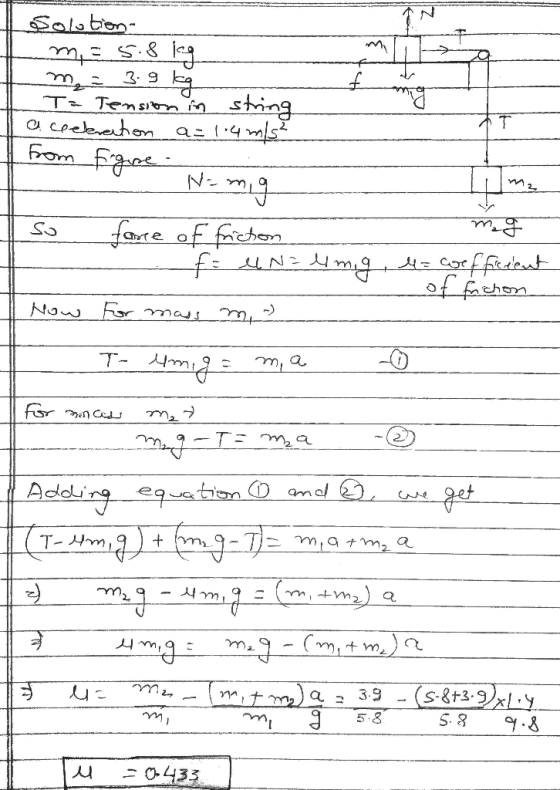

Answer #1

If you have any doubt please write in the comment box or please like thank you

0 0
Add a comment
