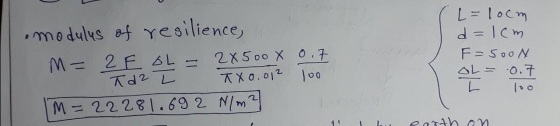

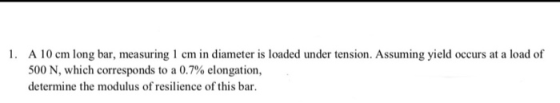

1. A 10 cm long bar, measuring 1 cm in diameter is loaded under tension. Assuming...
Q1. A circular rod of 12 mm diameter was tested for tension. The total elongation on...
Q1. A circular rod of 12 mm diameter was tested for tension. The total elongation on a 300 mm length was 0.22 mm under a tensile load of 17 KN. Find the value of E. (2.5 Marks) Answer: Q2. A prismatic bar has a cross section of 25 mm x 50 mm and a length of 2m under an axial force of 90 KN. The measured elongation of the bar is 1.5 mm. Compute the tensile stress and strain in...
A bar is loaded in tension. The dimension are a, b and c, in the x,...
A bar is loaded in tension. The dimension are a, b and c, in the x, y and z directions respectively, and the magnitude of the load is P, seen in the figure below. Assuming that bar remains in the elastic region, the Young's Modulus is E and the Poisson's Ratio is v, the ratio of the volume under the applied load to the unloaded volume may be represented by which of the following expressions:
Problem 1: A tension test was performed on a steel specimen having an original diameter of...
Problem 1: A tension test was performed on a steel specimen having an original diameter of 0.50 in. and gage length of 2.00 in. The final diameter is de .38 in. The data is listed in the table. 1) Plot the stress-strain diagram on engineering paper, so you can calculate the area easily; 2) Determine approximately the modulus of elasticity; 3) Find the yield stress by 0.2% offset method; 4) Calculate approximately the modulus of resilience; 5) Determine approximately the...
A bar of aluminum is tested under tension, the specimen has a rectangular n with dimensions...
A bar of aluminum is tested under tension, the specimen has a rectangular n with dimensions of 4 mm by 20 mm. The initial length of the sample is 60 mm, the load (force) versus elongation (Aに!finalㅢinitial) graph of this specimen is shown below. a) Determine the ultimate tensile strength. b) Young's modulus c) Total strain after failure 100 63 Fracture ー30 2 3 4 5 Elongation, mm .2 0
3. A steel bar having a diameter of 1 inch is being loaded as shown below....
3. A steel bar having a diameter of 1 inch is being loaded as shown below. Assume the width and diameters of the collars are negligible. The steel's elastic modulus E = 29,000 ksi. 3000 lb 9000 lb --8000 lb - 4000 lb - 36 in. — 36 in 36 in. (a) (4 points) the maximum axial stress within the bar (also indicate it is within which section and if it's tension or compression) (6) (3 points) determine the total...
An aluminum bar 200 mm long and having a square cross section 20.0 mm on an...
An aluminum bar 200 mm long and having a square cross section 20.0 mm on an edge is pulled in tension with a load of 55, 600 N and experiences an elongation of 0.395 mm. Assuming that the deformation is entirely elastic, calculate the modulus of elasticity of the aluminum.
please be very 100% sure before doing. thank you (1) (25 points) Load-elongation dataset were obtained...
please be very 100% sure
before doing. thank you
(1) (25 points) Load-elongation dataset were obtained from a tensile test of high-strength steel as shown in the table. The test specimen had a diameter of 0.505 in. and a gage length of 2.00 in. The Poisson's ratio of high-strength steel is found to be 0.33 At fracture, the elongation between the gage marks was 0.12 in and the minimum diameter was 0.42 in 1) Plot the engineering stress-strain curve using...
Problem #1 A cylindrical rod of copper (E 110 GPa) having a yield strength of 240...
Problem #1 A cylindrical rod of copper (E 110 GPa) having a yield strength of 240 MPa is to be subjected to a load of 6660 N. If the length of the rod is 380 mm, what must the diameter be to allow an elongation of 0.50 mm? A cylindrical specimen of some alloy 8 mm in diameter is stressed elastically in tension. A force of 15,700 N produces a reduction in the specimen diameter of 5 10-3 mm. Compute...
a steel bar of 25mm diameter and 122m long absorbs QUESTION 2 A steel bar of...
a steel bar of 25mm diameter and 122m long absorbs
QUESTION 2 A steel bar of 25 mm diameter and 1 22 m long absorbs 65 Nm oft energy at its lmit of proportionality under axial loading Assume the modulus of elasticty to be E 200 x 10 Pa and calculate 21 The stress induced in the bar, 22 The load when Gradually applied. Suddenly applied, Dropped through a height of 120 mm The following formula may be applied TURN...
6. A rod pof steel is l=12_ cm long and has a d= 0.6 mm diameter....
6. A rod pof steel is l=12_ cm long and has a d= 0.6 mm diameter. A P= 16 kN load pulls on each end of the bar. Given the strain along the bar El= 0.03, and Poisson's ratio of v=0.21 : (20%) .. Р Р a) the stress exerted on the rod o? b) the modulus of elasticity, E? c) the elongation of the bar, Al? d) the strain along the lateral direction, Edia? e) the change of diameter...
Q1. A circular rod of 12 mm diameter was tested for tension. The total elongation on a 300 mm length was 0.22 mm under a tensile load of 17 KN. Find the value of E. (2.5 Marks) Answer: Q2. A prismatic bar has a cross section of 25 mm x 50 mm and a length of 2m under an axial force of 90 KN. The measured elongation of the bar is 1.5 mm. Compute the tensile stress and strain in...
A bar is loaded in tension. The dimension are a, b and c, in the x, y and z directions respectively, and the magnitude of the load is P, seen in the figure below. Assuming that bar remains in the elastic region, the Young's Modulus is E and the Poisson's Ratio is v, the ratio of the volume under the applied load to the unloaded volume may be represented by which of the following expressions:
Problem 1: A tension test was performed on a steel specimen having an original diameter of 0.50 in. and gage length of 2.00 in. The final diameter is de .38 in. The data is listed in the table. 1) Plot the stress-strain diagram on engineering paper, so you can calculate the area easily; 2) Determine approximately the modulus of elasticity; 3) Find the yield stress by 0.2% offset method; 4) Calculate approximately the modulus of resilience; 5) Determine approximately the...
A bar of aluminum is tested under tension, the specimen has a rectangular n with dimensions of 4 mm by 20 mm. The initial length of the sample is 60 mm, the load (force) versus elongation (Aに!finalㅢinitial) graph of this specimen is shown below. a) Determine the ultimate tensile strength. b) Young's modulus c) Total strain after failure 100 63 Fracture ー30 2 3 4 5 Elongation, mm .2 0
3. A steel bar having a diameter of 1 inch is being loaded as shown below. Assume the width and diameters of the collars are negligible. The steel's elastic modulus E = 29,000 ksi. 3000 lb 9000 lb --8000 lb - 4000 lb - 36 in. — 36 in 36 in. (a) (4 points) the maximum axial stress within the bar (also indicate it is within which section and if it's tension or compression) (6) (3 points) determine the total...
please be very 100% sure
before doing. thank you
(1) (25 points) Load-elongation dataset were obtained from a tensile test of high-strength steel as shown in the table. The test specimen had a diameter of 0.505 in. and a gage length of 2.00 in. The Poisson's ratio of high-strength steel is found to be 0.33 At fracture, the elongation between the gage marks was 0.12 in and the minimum diameter was 0.42 in 1) Plot the engineering stress-strain curve using...
Problem #1 A cylindrical rod of copper (E 110 GPa) having a yield strength of 240 MPa is to be subjected to a load of 6660 N. If the length of the rod is 380 mm, what must the diameter be to allow an elongation of 0.50 mm? A cylindrical specimen of some alloy 8 mm in diameter is stressed elastically in tension. A force of 15,700 N produces a reduction in the specimen diameter of 5 10-3 mm. Compute...
a steel bar of 25mm diameter and 122m long absorbs
QUESTION 2 A steel bar of 25 mm diameter and 1 22 m long absorbs 65 Nm oft energy at its lmit of proportionality under axial loading Assume the modulus of elasticty to be E 200 x 10 Pa and calculate 21 The stress induced in the bar, 22 The load when Gradually applied. Suddenly applied, Dropped through a height of 120 mm The following formula may be applied TURN...
6. A rod pof steel is l=12_ cm long and has a d= 0.6 mm diameter. A P= 16 kN load pulls on each end of the bar. Given the strain along the bar El= 0.03, and Poisson's ratio of v=0.21 : (20%) .. Р Р a) the stress exerted on the rod o? b) the modulus of elasticity, E? c) the elongation of the bar, Al? d) the strain along the lateral direction, Edia? e) the change of diameter...
