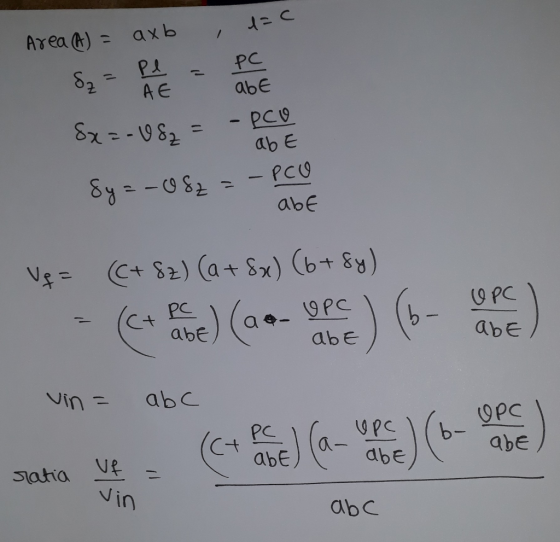

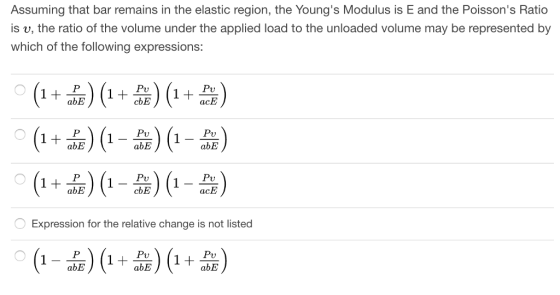

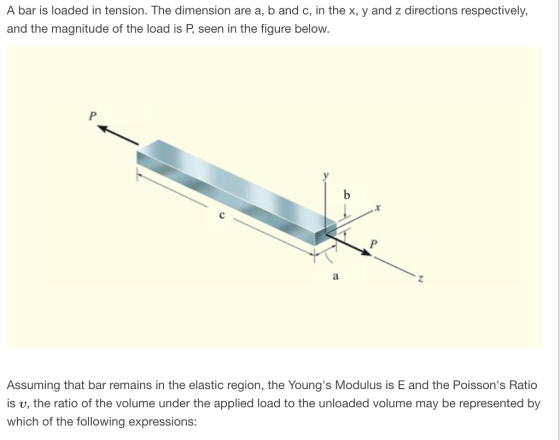

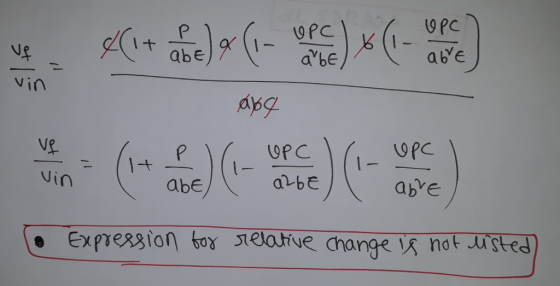

A bar is loaded in tension. The dimension are a, b and c, in the x,...
Part B Calculate the load II Review A square steel bar has a length of 2.2...
Part B Calculate the load II Review A square steel bar has a length of 2.2 ft and a 1.5 in by 1.5 in cross section and is subjected to axial compression. Under load, the thickness becomes 1.50032 in . If the modulus of elasticity is E = 2.9x 104 ksi and Poisson's ratio is v = 0.31; what is the magnitude of the load that was applied to the bar? Learning Goal To use Poisson's ratio and Hooke's law...
Figure II.2 shows a truncated conical bar of length L and end radii (R. R) is fixed as a fixed boundary at the restrained end (4) while loaded transversely by a uniform shear: at the free end (B). In...
Figure II.2 shows a truncated conical bar of length L and end radii (R. R) is fixed as a fixed boundary at the restrained end (4) while loaded transversely by a uniform shear: at the free end (B). In the figure the τ =Ότ r-axis is through the centroidal axis (C.A.) of the bar, which is made of a linearly elastic material of Young's modulus E and Poisson's ratio v. R1 / T. FIGURE II.2 A truncated conical bar loaded...

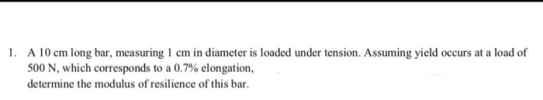

1. A 10 cm long bar, measuring 1 cm in diameter is loaded under tension. Assuming...
1. A 10 cm long bar, measuring 1 cm in diameter is loaded under tension. Assuming yield occurs at a load of 500 N, which corresponds to a 0.7% elongation, determine the modulus of resilience of this bar
A bar of unknown material is subjected to an axial tension load P. The bar, having...
A bar of unknown material is subjected to an axial tension load
P. The bar, having initial dimensions L = 500 mm and a = b = 25 mm,
is observed to elongate by 20 mm. Further, it is observed that the
volume of the bar increases by 600 mm3. The bulk modulus of the
material is measured at 20,000 MPa. Assuming that the material is
isotropic, homogeneous and linear elastic, determine the magnitude
of the load P in [kN]...
Q1. A circular rod of 12 mm diameter was tested for tension. The total elongation on...
Q1. A circular rod of 12 mm diameter was tested for tension. The total elongation on a 300 mm length was 0.22 mm under a tensile load of 17 KN. Find the value of E. (2.5 Marks) Answer: Q2. A prismatic bar has a cross section of 25 mm x 50 mm and a length of 2m under an axial force of 90 KN. The measured elongation of the bar is 1.5 mm. Compute the tensile stress and strain in...
Under an applied axial load of 3,806 kN, the diameter of a bar decreases by 0.23...
Under an applied axial load of 3,806 kN, the diameter of a bar decreases by 0.23 mm from an original diameter of 149 mm. Poisson's ratio for the bar is v= 0.37. Determine the elastic modulus of the bar. Give your answer in GPa.
3. A steel bar having a diameter of 1 inch is being loaded as shown below....
3. A steel bar having a diameter of 1 inch is being loaded as shown below. Assume the width and diameters of the collars are negligible. The steel's elastic modulus E = 29,000 ksi. 3000 lb 9000 lb --8000 lb - 4000 lb - 36 in. — 36 in 36 in. (a) (4 points) the maximum axial stress within the bar (also indicate it is within which section and if it's tension or compression) (6) (3 points) determine the total...
A cylindrical bar of metal having a diameter of 19.0 mm and a length of 207...
A cylindrical bar of metal having a diameter of 19.0 mm and a length of 207 mm is deformed elastically in tension with a force of 53700 N. Given that the elastic modulus and Poisson's ratio of the metal are 67.6 GPa and 0.34, respectively, determine the following: (a) The amount by which this specimen will elongate in the direction of the applied stress.
A cylindrical bar of metal having a diameter of 16.5 mm and a length of 183...
A cylindrical bar of metal having a diameter of 16.5 mm and a length of 183 mm is deformed elastically in tension with a force of 42000 N. Given that the elastic modulus and Poisson's ratio of the metal are 67.1 GPa and 0.34, respectively, determine the following:(a) The amount by which this specimen will elongate (in mm) in the direction of the applied stress. (b) The change in diameter of the specimen (in mm). Indicate an increase in diameter...
The rectangular steel plate below measures 1 m x 0.5 m x 10 mm. Assume that...
The rectangular steel plate below measures 1 m x 0.5 m x 10 mm. Assume that the 1 m dimension is in the x-direction and the 0.5 m dimension is in the y-direction. The plate is made of a material with an elastic modulus of 200 GPa and Poisson's Ratio of 0.3. Suppose a uniform normal stress, Ox, of 125 MPa is applied in the x-direction a) Calculate the stress, ay, required to produce a transverse strain Ey 0 (in...
Part B Calculate the load II Review A square steel bar has a length of 2.2 ft and a 1.5 in by 1.5 in cross section and is subjected to axial compression. Under load, the thickness becomes 1.50032 in . If the modulus of elasticity is E = 2.9x 104 ksi and Poisson's ratio is v = 0.31; what is the magnitude of the load that was applied to the bar? Learning Goal To use Poisson's ratio and Hooke's law...
Figure II.2 shows a truncated conical bar of length L and end radii (R. R) is fixed as a fixed boundary at the restrained end (4) while loaded transversely by a uniform shear: at the free end (B). In the figure the τ =Ότ r-axis is through the centroidal axis (C.A.) of the bar, which is made of a linearly elastic material of Young's modulus E and Poisson's ratio v. R1 / T. FIGURE II.2 A truncated conical bar loaded...
1. A 10 cm long bar, measuring 1 cm in diameter is loaded under tension. Assuming yield occurs at a load of 500 N, which corresponds to a 0.7% elongation, determine the modulus of resilience of this bar
A bar of unknown material is subjected to an axial tension load
P. The bar, having initial dimensions L = 500 mm and a = b = 25 mm,
is observed to elongate by 20 mm. Further, it is observed that the
volume of the bar increases by 600 mm3. The bulk modulus of the
material is measured at 20,000 MPa. Assuming that the material is
isotropic, homogeneous and linear elastic, determine the magnitude
of the load P in [kN]...
Q1. A circular rod of 12 mm diameter was tested for tension. The total elongation on a 300 mm length was 0.22 mm under a tensile load of 17 KN. Find the value of E. (2.5 Marks) Answer: Q2. A prismatic bar has a cross section of 25 mm x 50 mm and a length of 2m under an axial force of 90 KN. The measured elongation of the bar is 1.5 mm. Compute the tensile stress and strain in...
Under an applied axial load of 3,806 kN, the diameter of a bar decreases by 0.23 mm from an original diameter of 149 mm. Poisson's ratio for the bar is v= 0.37. Determine the elastic modulus of the bar. Give your answer in GPa.
3. A steel bar having a diameter of 1 inch is being loaded as shown below. Assume the width and diameters of the collars are negligible. The steel's elastic modulus E = 29,000 ksi. 3000 lb 9000 lb --8000 lb - 4000 lb - 36 in. — 36 in 36 in. (a) (4 points) the maximum axial stress within the bar (also indicate it is within which section and if it's tension or compression) (6) (3 points) determine the total...
The rectangular steel plate below measures 1 m x 0.5 m x 10 mm. Assume that the 1 m dimension is in the x-direction and the 0.5 m dimension is in the y-direction. The plate is made of a material with an elastic modulus of 200 GPa and Poisson's Ratio of 0.3. Suppose a uniform normal stress, Ox, of 125 MPa is applied in the x-direction a) Calculate the stress, ay, required to produce a transverse strain Ey 0 (in...
