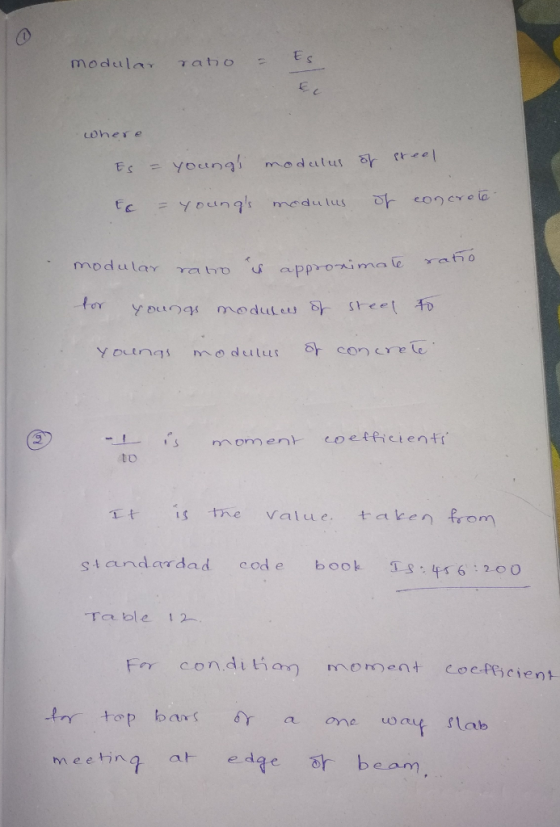

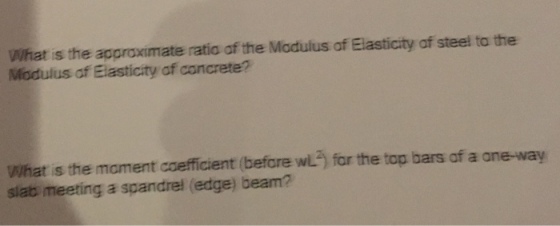

What is the appraximate ratio af the Modulus of Elasticity of steel to the Modulus af...
03(a) A reinforced concrete beam is acted on by a positive bending moment. reinforcement consists of 4 bars of 28 mm diameter. The modulus of elasticity is E 25 GPa for the concrete and E-200 G...
03(a) A reinforced concrete beam is acted on by a positive bending moment. reinforcement consists of 4 bars of 28 mm diameter. The modulus of elasticity is E 25 GPa for the concrete and E-200 GPa for the steel. The allowable stresses for the concrete and steel are ơ.-9.2 MPa and ơ.-135 MPa, respectively. Determine the maximum permissible positive bending moment. (10 marks) 625 mm 4 bars 28 mm -300 mm Figure Q3(a) 03(b) A simply supported beam that is...
Problem 2. A concrete beam is reinforced by three steel rebars placed as shown. The modulus...
Problem 2. A concrete beam is reinforced by three steel rebars placed as shown. The modulus of elasticity is 3x106 psi for concrete and 29x106 psi for steel. Find the tensile stress in rebars and maximum compressive stress in concrete under an external bending moment of (a) 80 kip.in and (b) 240 kip.in. Given the compressive strength of concrete fe' = 3 ksi and yield stress of rebars fy = 60 ksi, discuss the state of crack in concrete and...
Given the following values: Modulus of elasticity of reinforcement, Es = 3×105 Mpa, Mean...
Given the following values: Modulus of elasticity of reinforcement, Es = 3×105 Mpa, Mean value of the modulus of elasticity of concrete at 28 days, Ec = 13000 Mpa, Width of a cross-section, b = 200 mm, Effective depth of a cross-section, d = 480 mm, and Tensile steel ratio, pt = 0.023, Calculate Icr ,which is the second moment of area of a cracked section with the reinforcement transformed to an equivalent area of...
Cracking Moment (Uncracked Concrete Stage) Problem 1) Problem 2.6 (page 55, McCormac and Brown, gth Ed.)...
Cracking Moment (Uncracked Concrete Stage) Problem 1) Problem 2.6 (page 55, McCormac and Brown, gth Ed.) Note: Modify the total depth of the beam from 24" to 26" and the depth of the steel rebars from 21" to 23". Transformed Area Method (Concrete Cracked- Elastic Stresses Stage) Problem 2) Problem 2.13 (page 56, McCormac and Brown, 8th Ed.) Note: Make the following changes: Change fe to 5 ksi use the values and dimensions shown in the figure below 1) 2)...
1. Reinforced Rectangular Concrete Beam The reinforced concrete beam shown is subjected to a bending moment...
1. Reinforced Rectangular Concrete Beam The reinforced concrete beam shown is subjected to a bending moment of 200 kip ft. Knowing that the modulus of elasticity for the concrete and the steel are respectively Ec= 3.75 X 10 psi and Es = 30 x 10 psi, determine the tensile stress in [ksh] that develops in the steel bars. 20 in 1 in diameter 72.5 in 12 in-
no. 4 The bending moment of a beam (A) depends on the modulus of elasticity of...
no. 4
The bending moment of a beam (A) depends on the modulus of elasticity of the beam (B) is minimum where the shear is zero (C) is maximum at the free end of a cantilever (D) is plotted as a straight line for a simple beam with a uniformly distributed load (E) may be determined from the area of the shear diagram The offset method is used to find a property of metals that do not have a well-defined...
Problem 1 A composité beam made of concrete (c) and six steel Steel bars (s) bars...
Problem 1 A composité beam made of concrete (c) and six steel Steel bars (s) bars is shown below. The steel bars run through the concrete from the top to bottom and have the same length as the concrete block. Each steel bar has a diameter of in. Calculate the cross- sectional area of the concrete and the area of all the steel bars. If the temperature rises by AT 65 °F, determine the normal stress in the steel bars....
Material Modulus of Maximum Axial Maximum Shear Stress (o) Elasticity (E) Stress (t) Brass Steel Wood...
Material Modulus of Maximum Axial Maximum Shear Stress (o) Elasticity (E) Stress (t) Brass Steel Wood inum 10,500 ksi16 ksi 22 ksi 30 ksi 15,000 ksi 29,000 ksi 1,600 ksi 10 ksi 13 ksi 20 ksi 90 psi 1000 psi 2) A rectangular cantilever bearm is loaded by a moment Mo = 4500 ft-lbs at its end as shown below. The length of the beam is L 4 ft and the height of the beam is h 3 in. If...
Problem 2 A reinforced concrete beam (see fig.) is acted on by a positive bending moment...
Problem 2 A reinforced concrete beam (see fig.) is acted on by a positive bending moment of M - 160 kNm. Steel reinforcement consists of 4 bars of 28-mm diameter. The modulus of elasticity for the concrete is E = 25 GPa while that of the steel is E, = 200 GPa. (a) Find the maximum stresses in steel and concrete. (b) If allowable stresses for concrete and steel are = 9.2 MPa and 0 -135 MPa, respectively, what is...
1. A post tensioned concrete beam, 100mm wide and 400mm deep is prestressed by three cables,...
1. A post tensioned concrete beam, 100mm wide and 400mm deep is prestressed by three cables, each with a cross sectional area of 50mm², initial stress of 1200N/mm². Calculate the stress in concrete at level of steel? 2. A pre tensioned concrete beam 100mm wide and 300mm deep, initial force of 150kN at an eccentricity of 50mm, moment of inertia is 225*10mm, initial stress in steel is 400N/mm², modular ratio is 8. Estimate the percentage loss? 3. A pretensioned concrete...
03(a) A reinforced concrete beam is acted on by a positive bending moment. reinforcement consists of 4 bars of 28 mm diameter. The modulus of elasticity is E 25 GPa for the concrete and E-200 GPa for the steel. The allowable stresses for the concrete and steel are ơ.-9.2 MPa and ơ.-135 MPa, respectively. Determine the maximum permissible positive bending moment. (10 marks) 625 mm 4 bars 28 mm -300 mm Figure Q3(a) 03(b) A simply supported beam that is...
Problem 2. A concrete beam is reinforced by three steel rebars placed as shown. The modulus of elasticity is 3x106 psi for concrete and 29x106 psi for steel. Find the tensile stress in rebars and maximum compressive stress in concrete under an external bending moment of (a) 80 kip.in and (b) 240 kip.in. Given the compressive strength of concrete fe' = 3 ksi and yield stress of rebars fy = 60 ksi, discuss the state of crack in concrete and...
Cracking Moment (Uncracked Concrete Stage) Problem 1) Problem 2.6 (page 55, McCormac and Brown, gth Ed.) Note: Modify the total depth of the beam from 24" to 26" and the depth of the steel rebars from 21" to 23". Transformed Area Method (Concrete Cracked- Elastic Stresses Stage) Problem 2) Problem 2.13 (page 56, McCormac and Brown, 8th Ed.) Note: Make the following changes: Change fe to 5 ksi use the values and dimensions shown in the figure below 1) 2)...
1. Reinforced Rectangular Concrete Beam The reinforced concrete beam shown is subjected to a bending moment of 200 kip ft. Knowing that the modulus of elasticity for the concrete and the steel are respectively Ec= 3.75 X 10 psi and Es = 30 x 10 psi, determine the tensile stress in [ksh] that develops in the steel bars. 20 in 1 in diameter 72.5 in 12 in-
no. 4
The bending moment of a beam (A) depends on the modulus of elasticity of the beam (B) is minimum where the shear is zero (C) is maximum at the free end of a cantilever (D) is plotted as a straight line for a simple beam with a uniformly distributed load (E) may be determined from the area of the shear diagram The offset method is used to find a property of metals that do not have a well-defined...
Problem 1 A composité beam made of concrete (c) and six steel Steel bars (s) bars is shown below. The steel bars run through the concrete from the top to bottom and have the same length as the concrete block. Each steel bar has a diameter of in. Calculate the cross- sectional area of the concrete and the area of all the steel bars. If the temperature rises by AT 65 °F, determine the normal stress in the steel bars....
Material Modulus of Maximum Axial Maximum Shear Stress (o) Elasticity (E) Stress (t) Brass Steel Wood inum 10,500 ksi16 ksi 22 ksi 30 ksi 15,000 ksi 29,000 ksi 1,600 ksi 10 ksi 13 ksi 20 ksi 90 psi 1000 psi 2) A rectangular cantilever bearm is loaded by a moment Mo = 4500 ft-lbs at its end as shown below. The length of the beam is L 4 ft and the height of the beam is h 3 in. If...
Problem 2 A reinforced concrete beam (see fig.) is acted on by a positive bending moment of M - 160 kNm. Steel reinforcement consists of 4 bars of 28-mm diameter. The modulus of elasticity for the concrete is E = 25 GPa while that of the steel is E, = 200 GPa. (a) Find the maximum stresses in steel and concrete. (b) If allowable stresses for concrete and steel are = 9.2 MPa and 0 -135 MPa, respectively, what is...
1. A post tensioned concrete beam, 100mm wide and 400mm deep is prestressed by three cables, each with a cross sectional area of 50mm², initial stress of 1200N/mm². Calculate the stress in concrete at level of steel? 2. A pre tensioned concrete beam 100mm wide and 300mm deep, initial force of 150kN at an eccentricity of 50mm, moment of inertia is 225*10mm, initial stress in steel is 400N/mm², modular ratio is 8. Estimate the percentage loss? 3. A pretensioned concrete...
