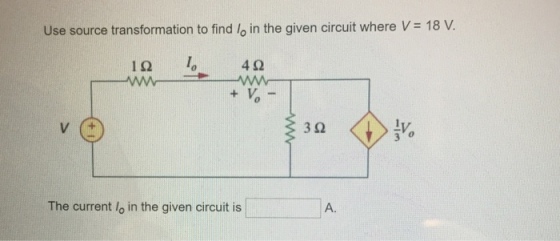

Use source transformation to find lo in the given circuit where V = 18 V 1。4Ω...

Question

Question

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

Use source transformation to find I, in the given circuit where V = 20 V. 12...

Use source transformation to find I, in the given circuit where V = 20 V. 12 192 w h 422 4.2 + V- { 32 V The current 1, in the given circuit is
For the given circuit where V- 14 V, use source transformation to find the current i....

For the given circuit where V- 14 V, use source transformation to find the current i. 5Ω 10Ω 2 A 5Ω In the given circuit, the current i is mA Hints References eBook & Resources Hint #1
Use source transformation to find the voltage V in the given circuit where 9A 8Ω 10Ω...

Use source transformation to find the voltage V in the given circuit where 9A 8Ω 10Ω 40 V) 10Ω V. The voltage Vx in the given circuit is

Use source transformation to find the output current in the circuit given below, whero V, -...

Use source transformation to find the output current in the circuit given below, whero V, - 40 230 V. X. 40 ,Xc 20, R = R2 = 800, and V, - 100 V. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. jXL R2 R -jXc V2 The output current in the given circuit is
4Ω 14. For the circuit shown, a 1.96 A current leaves the 18 V source and...

4Ω 14. For the circuit shown, a 1.96 A current leaves the 18 V source and flows through the 4.0 Ω resistor. The ammeter A in the center branch of the circuit measures the current through the 6.0 Ω resistor to be 0.69 A, downward, in the reverse direction through the 6.0 V source. What is the magnitude of the voltage drop across the 8 Ω resistor? [hint: consider branching currents or voltage drops). 8Ω 6Ω A) 6 V B)6.6...
Find all the currents in the following circuit. 2Ω 2 V 3Ω 7Ω 4Ω 10 V...

Find all the currents in the following circuit. 2Ω 2 V 3Ω 7Ω 4Ω 10 V 10Ω 6Ω 5Ω 6V 2Ω 5Ω 11Ω 3 V

2 9 4Ω 3Ω 8 V 9 V Assume that this circuit has reached steady state (i.e, all the currents are constant). Find l, 12, ls la and Is. Also, find the charge on the capacitor. 2 9 4Ω 3Ω 8 V 9 V...

2 9 4Ω 3Ω 8 V 9 V Assume that this circuit has reached steady state (i.e, all the currents are constant). Find l, 12, ls la and Is. Also, find the charge on the capacitor. 2 9 4Ω 3Ω 8 V 9 V Assume that this circuit has reached steady state (i.e, all the currents are constant). Find l, 12, ls la and Is. Also, find the charge on the capacitor.
Use the mesh-current method to find the branch currents ia, ib, and ic in the circuit...

Use the mesh-current method to find the branch currents ia, ib, and ic in the circuit in figure also find currents ia, ib, and ic if the polarity of the 64 V source is reversed. The values of v1 and v2 are 64 V and 30 V, respectively. 4Ω 2Ω U1 1は10Ω 1Ω 3Ω
Problem 1 For the following circuit, find lo in using source transformation. Write your final answers...

Problem 1 For the following circuit, find lo in using source transformation. Write your final answers in the boxes provided. 4 mA W 4k12 3 k12 1. ( 4 mA 3312 312k12 ( 2 mA (+ 12 V

Source Transformation Example Find l 6Ω 3Ω 60 V(+

Source Transformation Example Find l 6Ω 3Ω 60 V(+
