Use source transformation to find the output current in the circuit given below, whero V, -...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

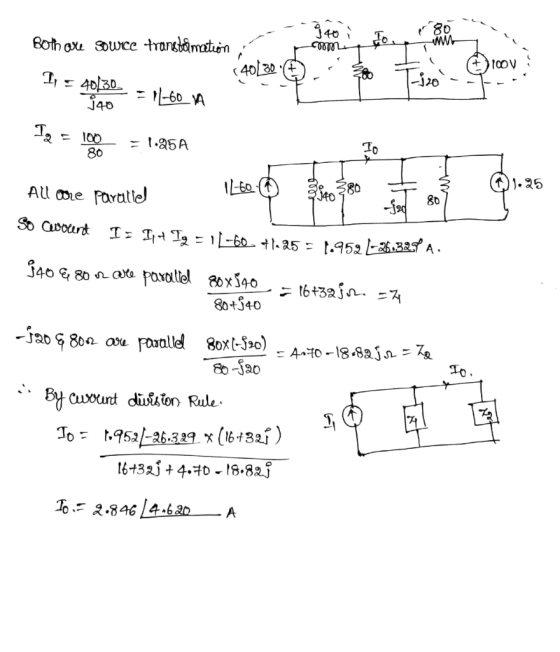

j zo 80 www coop Both are sowce transformation 140130 Is 40/30 140 $100V 1260 VA Ig = = 100 = 1.25A Io 11-60 All are paratie

Answer 2

Similar Homework Help Questions

Calculate the output current in the circuit given below, where / = 121. Please report your...

Calculate the output current in the circuit given below, where / = 121. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. 2 ko 2uF 25 cos(4 X 103t) V + 0.25 H The output current in the circuit is io(t) = cos(4 x 103t + °) ma.
Determine the output voltage Vo and the output current I0 in the given circuit using mesh...

Determine the output voltage Vo and the output current I0 in the given circuit using mesh analysis. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees.
Find the output current i, in the circuit shown below using superposition, where vs = 28...

Find the output current i, in the circuit shown below using superposition, where vs = 28 cos(4t) V. Given: 161 is the value of phasor i, when only 20 V source is on and 1.2 is its value with vs(t) on only. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. 42 22 AN vs 0 14 20 V The value of 101 = The...

Using the superposition principle, find it in the circuit given below, where R=6 . Please report...

Using the superposition principle, find it in the circuit given below, where R=6 . Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. F ix 10 cos(2t + 109) A ( 20cos(2t -60°) V The component of the current due to the voltage source is is ) A. cos(2+0 COS(2+ The component of the current due to the current source is 12 )) A The...
Find v(t) for the given circuit, where R-8 Ω and VS-155 sin (3) V. Please report...

Find v(t) for the given circuit, where R-8 Ω and VS-155 sin (3) V. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. 2Ω 12 The value of voltage v(t) sin(3t+ V.
Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where...

Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R =10 ohms. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R = 10 . Please report your answer so the magnitude is positive and all angles are in the range of...

Find the Norton equivalent for the given circuit at terminals a-b. Given -2 A. Please report your...

Find the Norton equivalent for the given circuit at terminals a-b. Given -2 A. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees 10Ω /10 Ω ! Norton's equivalent current IN Norton's equivalent impedance Zeq Find the Norton equivalent for the given circuit at terminals a-b. Given -2 A. Please report your answer so the magnitude is positive and all angles are in the range...
The Δ-Δ circuit is given below, where Va=213 ∠ 0° V, Vb=213 ∠-120° V, and Vc=213 ∠ 120° V.

The Δ-Δ circuit is given below, where Va=213 ∠ 0° V, Vb=213 ∠-120° V, and Vc=213 ∠ 120° V.Determine the line currents for the given circuit. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees.The line currents for the given circuit are given below.
For the given circuit, determine the values of V, and I where A = 6020° V....

For the given circuit, determine the values of V, and I where A = 6020° V. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. j5 Ω + 12 + Vi j102 j10 2 A 1020° A The value of 12 = + A and V1 1. V.

Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where...

Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R = 12 Ω. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R = 12 n. Please report your answer so the magnitude is positive and all angles are in the range...
