Calculate the output current in the circuit given below, where / = 121. Please report your answer so the magnitude is positiv

engineering Electrical-Engineering

Answer 1

Answer #1

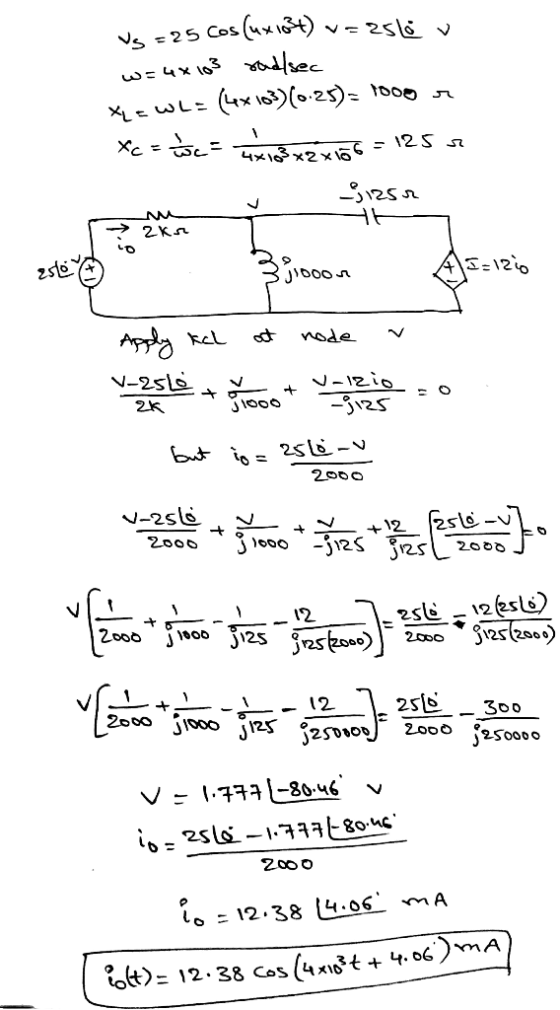

Vs = 25 cos (ux 103+) v= 2518 v w=4x103 rad/sec Xec WL = (4x103)(0.25)= 100gr xc=se= won of x2x155 = 125 s -3125v2 M zka 2 25

Answer 2

Similar Homework Help Questions

Find v, in the given circuit where P = 90 sin(2t) V. Please report your answer...

Find v, in the given circuit where P = 90 sin(2t) V. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. 0.5 H + P 2H ele ell 2 H vo 0.5 F The value of vo(t) = cos(2t+ 1) v.
Need help. Find Voin the given circuit where P = 120 sin(21) V. Please report your...

Need help. Find Voin the given circuit where P = 120 sin(21) V. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. 0.5 H . . + P 2H ele 2 H vo 0.5 F The value of volt) cos(2t + ]. V.
Find the output current i, in the circuit shown below using superposition, where vs = 28...

Find the output current i, in the circuit shown below using superposition, where vs = 28 cos(4t) V. Given: 161 is the value of phasor i, when only 20 V source is on and 1.2 is its value with vs(t) on only. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. 42 22 AN vs 0 14 20 V The value of 101 = The...

Using the superposition principle, find it in the circuit given below, where R=6 . Please report...

Using the superposition principle, find it in the circuit given below, where R=6 . Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. F ix 10 cos(2t + 109) A ( 20cos(2t -60°) V The component of the current due to the voltage source is is ) A. cos(2+0 COS(2+ The component of the current due to the current source is 12 )) A The...
Find Voin the given circuit where P = 120 sin(21) V. Please report your answer so...

Find Voin the given circuit where P = 120 sin(21) V. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. 0.5 H + Р +1 2H ele ell 2 H vo 0.5 F The value of vo(t) = cos(2t+ 1).
Use source transformation to find the output current in the circuit given below, whero V, -...

Use source transformation to find the output current in the circuit given below, whero V, - 40 230 V. X. 40 ,Xc 20, R = R2 = 800, and V, - 100 V. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. jXL R2 R -jXc V2 The output current in the given circuit is

Determine the output voltage Vo and the output current I0 in the given circuit using mesh...

Determine the output voltage Vo and the output current I0 in the given circuit using mesh analysis. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees.
Find the Norton equivalent for the given circuit at terminals a-b. Given -2 A. Please report your...

Find the Norton equivalent for the given circuit at terminals a-b. Given -2 A. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees 10Ω /10 Ω ! Norton's equivalent current IN Norton's equivalent impedance Zeq Find the Norton equivalent for the given circuit at terminals a-b. Given -2 A. Please report your answer so the magnitude is positive and all angles are in the range...
Determine ZT and I for the given circuit, where R = 14 Ω. Please report your...

Determine ZT and I for the given circuit, where R = 14 Ω. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. The values of ZT = ∠ ∠ ° Ω and I = ∠ ∠ ° A. Determine Zy and I for the given circuit, where R = 14 Q. Please report your answer so the 482 -j622 w th R w 392 1422...

Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where...

Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R =10 ohms. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R = 10 . Please report your answer so the magnitude is positive and all angles are in the range of...
