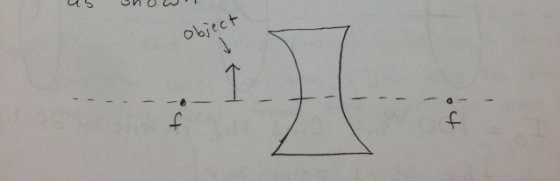

Consider an arrow and a diverging lens as shown
Re-draw this setup and show where the image is formed (include at least two rays). State whether the image is real or not AND if it is erect or inverted.
Please show drawing in a picture form.
Homework Answers
Add Answer to:
Consider an arrow and a diverging lens as shown
Re-draw this setup and show where the...
An object (represented by the brown arrow) is placed near a concave lens Three sample rays of light are shown traveling from the tip of the object to the lens. On the diagram below, draw three arrows...
An object (represented by the brown arrow) is placed near a concave lens Three sample rays of light are shown traveling from the tip of the object to the lens. On the diagram below, draw three arrows to show the subsequent paths of the three light rays given. Draw a fourth arrow to represent the image that is formed by the lens. The focal points of the lens are shown for reference Note: to locate the image, you will also...
A diverging lens located in the y-z plane at x = 0 forms an image of...
A diverging lens located in the y-z plane at x = 0 forms an image of an arrow at x = x2 = -14.1 cm. The image of the tip of the arrow is located at y = y2 = 6.3 cm. The magnitude of the focal length of the diverging lens is 28.8 cm. light image х 1 Ay 3) A converging lens of focal length fconverging = 9.02 cm is now inserted at x = x3 = -14.36...
# 1 and 2 are already done correctly, please do not solve A diverging lens located...
# 1 and 2 are already done correctly, please do not solve
A diverging lens located in the y-z plane at x - 0 forms an image of an arrow at x = x2 =-27.5 cm. The image of the tip of the arrow is located at y -y2 - 5 cm. The magnitude of the focal length of the diverging lens is 49.1 cm light (x2.y2) image 1) What is x1, the x co-ordinate of the object arrow?. 62.5...
A diverging lens has a focal length of -20 cm. An object is placed 50 cm...
A diverging lens has a focal length of -20 cm. An object is placed 50 cm in front of the lens: (a) Where is the image located? (in cm) (b) What is the magnification of the image? (c) Is the image real or virtual? (d) Is the image erect or inverted? Please show me how you reasoned the problem, I'm struggling a lot. Thank you!!
Select Diverging lens Knowing that the scale of the ruler in the simulation is in centimeters,...
Select Diverging lens Knowing that the scale of the ruler in the simulation is in centimeters, set the focus length of the diverging. lens to 2.5 cm and the high of the object to 2 cm approximately. 1. Locate the object at the left of diverging lens. a. Print the simulation and draw the third principal ray to form accurately the image of the object. b. Where exactly the image of the object will be formed? hint - watch your...
. The diagram shows two principal rays from the tip of the arrow to the lens....
. The diagram shows two principal rays from the tip of the arrow to the lens. What An object, pointing upwards, is placed between a thin converging lens and its focal point best describes the image of the arrow? a virtual, inverted image that appears the same size as the arrow, a virtual, orect image that appears larger than the arrow. a real, Inverted image that appears smaller than the arrow. a virtual, erect image that appears smaller than the...
2. A thin converging lens has a focal length of 10.0 cm. An object is placed...
2. A thin converging lens has a focal length of 10.0 cm. An object is placed 30.0 cm from this lens. Use a sheet of the graph paper provided at the back of this manual to draw a ray diagram that shows the image formed by this lens. Use any two of the three principal (or special) rays and an appropriate scale. Hint: you could let 1 cm on your ray diagram represent 5 cm of the actual measurements:this scale...
26. 14] In experiment 11 thin lens, the figure below shows an object ("O") sits in front of a diverging lens. Draw in the image-arrow with correct size, location, and orientation using pr...
26. 14] In experiment 11 thin lens, the figure below shows an object ("O") sits in front of a diverging lens. Draw in the image-arrow with correct size, location, and orientation using principal-ray diagrams to draw the rays discussed in class (wo problems). "F' is the focal point.
26. 14] In experiment 11 thin lens, the figure below shows an object ("O") sits in front of a diverging lens. Draw in the image-arrow with correct size, location, and orientation using...
help me Question 3) An object with height 1.sotem) (the thick arrow in de converging converging lens. There is a distance from each lens to its own focal point is 15.olem diagram) is 33.0fem] t...
help me
Question 3) An object with height 1.sotem) (the thick arrow in de converging converging lens. There is a distance from each lens to its own focal point is 15.olem diagram) is 33.0fem] to the left of a diverging lens that is 50.0[cm] to the right of the converging lens. The neha he scale is different in the vertical and horizontal directions (Be careful about sign conventions) DivergiNg Lens Converging Lens Object 1.50 cm 15.0 cm-15.0cm 15.0cm -5.0cm 33.3...
21) In the picture shown, draw where the light rays will go? Object Í ZF ZF...
21) In the picture shown, draw where the light rays will go? Object Í ZF ZF Image Circle the correct answer in the following question a) Will this image be real or virtual b) Is it upside right or inverted? c) Is it enlarged, reduced, or same size? 22) In the pic provided circle the one(s) that show converging lens
An object (represented by the brown arrow) is placed near a concave lens Three sample rays of light are shown traveling from the tip of the object to the lens. On the diagram below, draw three arrows to show the subsequent paths of the three light rays given. Draw a fourth arrow to represent the image that is formed by the lens. The focal points of the lens are shown for reference Note: to locate the image, you will also...
A diverging lens located in the y-z plane at x = 0 forms an image of an arrow at x = x2 = -14.1 cm. The image of the tip of the arrow is located at y = y2 = 6.3 cm. The magnitude of the focal length of the diverging lens is 28.8 cm. light image х 1 Ay 3) A converging lens of focal length fconverging = 9.02 cm is now inserted at x = x3 = -14.36...
# 1 and 2 are already done correctly, please do not solve
A diverging lens located in the y-z plane at x - 0 forms an image of an arrow at x = x2 =-27.5 cm. The image of the tip of the arrow is located at y -y2 - 5 cm. The magnitude of the focal length of the diverging lens is 49.1 cm light (x2.y2) image 1) What is x1, the x co-ordinate of the object arrow?. 62.5...
Select Diverging lens Knowing that the scale of the ruler in the simulation is in centimeters, set the focus length of the diverging. lens to 2.5 cm and the high of the object to 2 cm approximately. 1. Locate the object at the left of diverging lens. a. Print the simulation and draw the third principal ray to form accurately the image of the object. b. Where exactly the image of the object will be formed? hint - watch your...
. The diagram shows two principal rays from the tip of the arrow to the lens. What An object, pointing upwards, is placed between a thin converging lens and its focal point best describes the image of the arrow? a virtual, inverted image that appears the same size as the arrow, a virtual, orect image that appears larger than the arrow. a real, Inverted image that appears smaller than the arrow. a virtual, erect image that appears smaller than the...
2. A thin converging lens has a focal length of 10.0 cm. An object is placed 30.0 cm from this lens. Use a sheet of the graph paper provided at the back of this manual to draw a ray diagram that shows the image formed by this lens. Use any two of the three principal (or special) rays and an appropriate scale. Hint: you could let 1 cm on your ray diagram represent 5 cm of the actual measurements:this scale...
26. 14] In experiment 11 thin lens, the figure below shows an object ("O") sits in front of a diverging lens. Draw in the image-arrow with correct size, location, and orientation using principal-ray diagrams to draw the rays discussed in class (wo problems). "F' is the focal point.
26. 14] In experiment 11 thin lens, the figure below shows an object ("O") sits in front of a diverging lens. Draw in the image-arrow with correct size, location, and orientation using...
help me
Question 3) An object with height 1.sotem) (the thick arrow in de converging converging lens. There is a distance from each lens to its own focal point is 15.olem diagram) is 33.0fem] to the left of a diverging lens that is 50.0[cm] to the right of the converging lens. The neha he scale is different in the vertical and horizontal directions (Be careful about sign conventions) DivergiNg Lens Converging Lens Object 1.50 cm 15.0 cm-15.0cm 15.0cm -5.0cm 33.3...
21) In the picture shown, draw where the light rays will go? Object Í ZF ZF Image Circle the correct answer in the following question a) Will this image be real or virtual b) Is it upside right or inverted? c) Is it enlarged, reduced, or same size? 22) In the pic provided circle the one(s) that show converging lens
