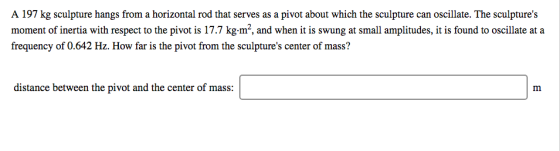

A 197 kg sculpture hangs from a horizontal rod that serves as a pivot about which the sculpture can oscillate. The sculptures moment of inertia with respect to the pivot is 17.7 kg.m2, and when it is swung at small amplitudes, it is found to oscillate at a frequency of 0.642 Hz. How far is the pivot from the sculptures center of mass? distance between the pivot and the center of mass:

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

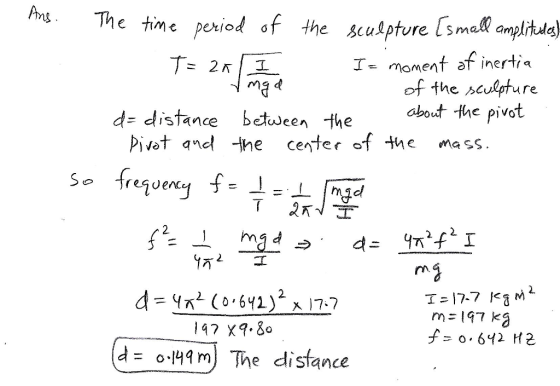

Ag The time peried of the scupesmal mpli iod of the scupture Lsmell amplHute) I-momenf af inertia of the selpture about the pivot mg d- distance between the pivet and -he center of the mass Mel : I md m4 rn = 197 ka f=0.642 H2 147 X9.8o d = o.ly 9 m) The distance

2 0
