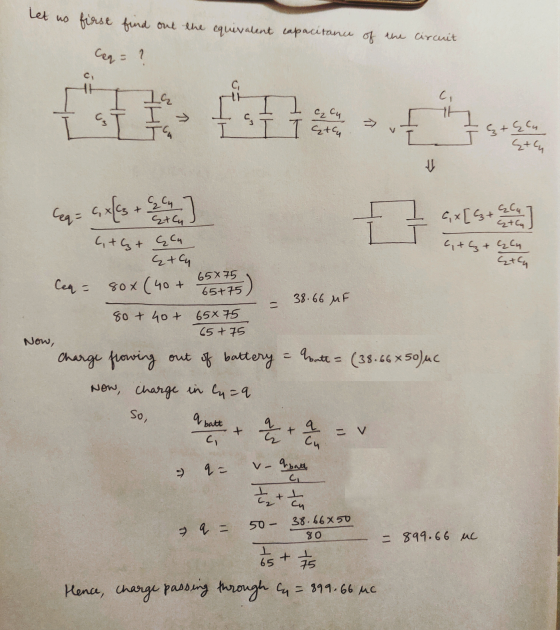

Four capacitors (C1=80 microfarads, C2=65 microfarads, C3=40 microfarads, and C4=75 microfarads) are connected to a battery as shown below. When the capacitors are fully charged in this circuit, how much charge is on C4?
Homework Answers
Add Answer to:
Four capacitors (C1=80 microfarads, C2=65 microfarads, C3=40
microfarads, and C4=75 microfarads) are connected to a battery...
Four capacitors (C1 = 9.0 μF, C2= 7.0 μF, C3 = 12 μF, and C4 = 30 μF)are connected to a 18-V battery as shown below.
Four capacitors (C1 = 9.0 μF, C2= 7.0 μF, C3 = 12 μF, and
C4 = 30 μF)are connected to a 18-V battery as
shown below. (a) Calculate the equivalent capacitance of the
circuit. (b) Determine the voltages across each capacitor. (c) Find
the charge on each capacitor. Please, show all the important
physics steps to earn full credits.
The figure shows capacitors C1, C2, and C3 connected to a battery with potential difference V...
The figure shows capacitors C1, C2, and C3 connected to a battery with potential difference V . When switch S is closed so as to connect uncharged capacitor 4 (C4), (a) how much charge passes through point P from the battery and (b) how much charge shows up on capacitor 4? State your answers in terms of the given variables.
C1 C2 Problem 3. Capacitors in series and in parallel. Switches. = = S2 C3 C4...
C1 C2 Problem 3. Capacitors in series and in parallel. Switches. = = S2 C3 C4 In this circuit, C1=1 uF, C2=2 uF, C3=3 uF, and C4=4 uF. The voltage source is an ideal 12 V battery. Find the charge on each capacitor when: a) Only Si is closed (obligatory) b) Si and S2 are both closed (extra, highly recommended for practice) S, 11 C1 C2 = = Extra space C1=1 uF, C2=2 uF, C3=3 uF, C4=4 uF, ε =12...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose
values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery
voltage V0=5 V. When the circuit is connected what will be charge
on C3?
C4 C1 C2 C3 G V.
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be charge on C2? C4 C1 C2 C3 Vo 5C 10 C 15 C 200 30 C
Two capacitors (C1 = 70 uF and C2 = 75 uF) are connected in parallel. A...
Two capacitors (C1 = 70 uF and C2 = 75 uF) are connected in parallel. A third capacitor (C3 = 204 uF) is then placed in series with the first two. The entire configuration is then placed in series with a 8.5-Volt battery. Find the charge on and the potential difference across each capacitor (in uC and Volts, respectively), once they are fully charged.
Capacitors C1, C2, and C3 are connected purely in parallel to a 13 volt battery. The...
Capacitors C1, C2, and C3 are connected purely in parallel to a 13 volt battery. The charge in C2 is 2 times larger than the charge in C1, and C3 has a factor of 9 times less charge than C2. The total stored energy in all three capacitor is 160 micro-joules. What is the charge in C3 in micro-coulombs?
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be charge on C3? C4 C1 C2 C3 V. 30 C 20 C 15 C 10 C O 50
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6F, C2=2...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6F, C2=2 F, and C3=C4-4 F. The battery voltage Vo=5 V. When the circuit is connected what will be charge on C1? CA al С1 C2 C₃ V. O 50 O 10 C O 15 C O 20C 30 C
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be charge on C3? CA C1 C2 C3 V. 30C 200 15 C 100 osc
Four capacitors (C1 = 9.0 μF, C2= 7.0 μF, C3 = 12 μF, and
C4 = 30 μF)are connected to a 18-V battery as
shown below. (a) Calculate the equivalent capacitance of the
circuit. (b) Determine the voltages across each capacitor. (c) Find
the charge on each capacitor. Please, show all the important
physics steps to earn full credits.
C1 C2 Problem 3. Capacitors in series and in parallel. Switches. = = S2 C3 C4 In this circuit, C1=1 uF, C2=2 uF, C3=3 uF, and C4=4 uF. The voltage source is an ideal 12 V battery. Find the charge on each capacitor when: a) Only Si is closed (obligatory) b) Si and S2 are both closed (extra, highly recommended for practice) S, 11 C1 C2 = = Extra space C1=1 uF, C2=2 uF, C3=3 uF, C4=4 uF, ε =12...
The circuit shown in the figure contains four capacitors whose
values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery
voltage V0=5 V. When the circuit is connected what will be charge
on C3?
C4 C1 C2 C3 G V.
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be charge on C2? C4 C1 C2 C3 Vo 5C 10 C 15 C 200 30 C
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be charge on C3? C4 C1 C2 C3 V. 30 C 20 C 15 C 10 C O 50
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6F, C2=2 F, and C3=C4-4 F. The battery voltage Vo=5 V. When the circuit is connected what will be charge on C1? CA al С1 C2 C₃ V. O 50 O 10 C O 15 C O 20C 30 C
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be charge on C3? CA C1 C2 C3 V. 30C 200 15 C 100 osc
