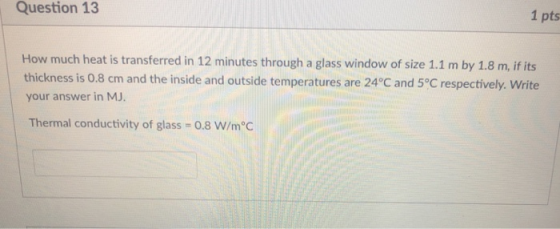

Question 13 1 pts How much heat is transferred in 12 minutes through a glass window of size 1.1 m by 1.8 m, if its thickness please answer both. thanks!

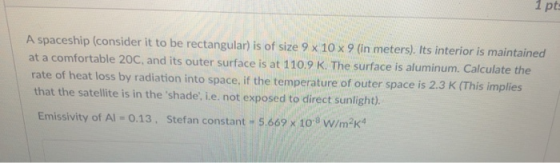

1 pt A spaceship (consider it to be rectangular) is of size 9 x 10 x9 (in meters). Its interior is maintained at a comfortabl
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

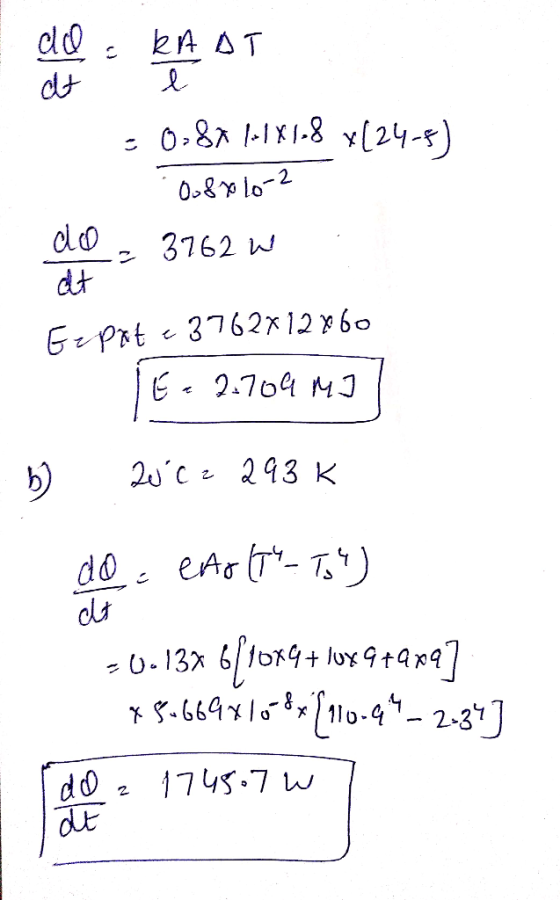

dよ dl2162 w clo dt

0 0
Add a comment
