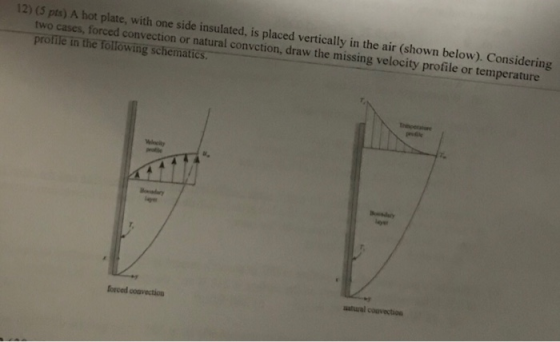

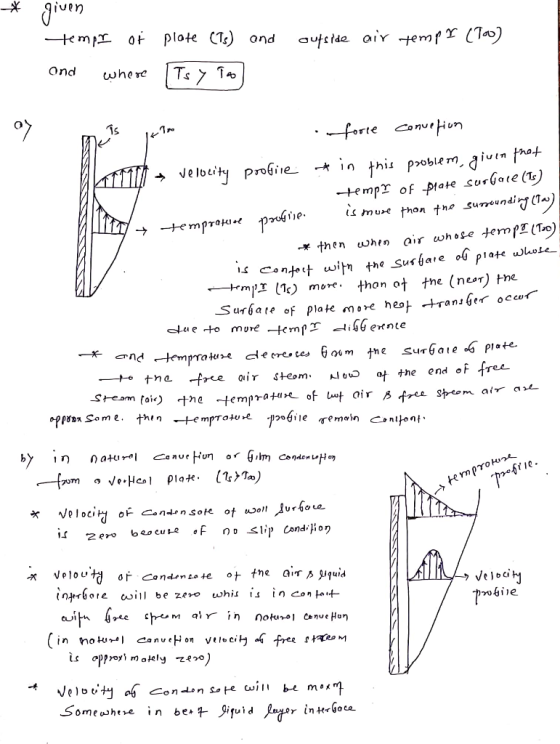

12) (5 pts) A hot plate, with one side insulated, is placed vertically in the air...
7. Consider a thin plate of 20 cm by 20 cm is standing vertically in air....
7. Consider a thin plate of 20 cm by 20 cm is standing vertically in air. One side of the plate is insulated. The plate surface temperature is 50°C. The room air temperature where the plate is located is 20°C. Determine: (a) Is the flow laminar or turbulent? (b) What Nu number correlation will you use to find h? Find Nu. (c) Find the convection heat transfer coefficient (h) (d) Find the rate of convection heat transfer from the plate.
A hot brass plate is having its upper surface cooled by impinging jet of the air...
A hot brass plate is having its upper surface cooled by
impinging jet of the air at temperature of 15 oC and convection
coefficient of k=180, 190, 200, 210 220 and 230 W/m2 oK. The 20-cm
wide and 10-cm length brass plate (ρ=8530 kg/m3, and Cp=380 J/kg K.
k=220 w/mK had a uniform initial temperature of 650 oC, and lover
surface of the plat is well insulated. Using uniform node for Δx =
Δy = 2.5 cm and left side...
A hot plate consists of a flat electrical resistor, which is adiabatically insulated on one side...
A hot plate consists of a flat electrical resistor, which is adiabatically insulated on one side and on the other side is in contact with a ceramic layer of 1 cm thickness and 30 W/mK thermal conductivity. The hot plate is operated inside a fume hood, where air at 20 C flows over producing convective cooling on the top surface of the heater with a heat transfer coefficient of 15 W/mK The plate generate a total heat transfer rate of...
Air at a temperature of 300 K flows over one side of a flat plate of...
Air at a temperature of 300 K flows over one side of a flat plate of width 1 m at a velocity of 20 m/s. The plate has a constant surface temperature of 350 K. Assume Re(x,c)=5x10^5. a) What is the velocity boundary layer thickness at the end of the plate if L=0.25 m? What if L=1 m? b) Calculate the drag on the plate if L=0.25 m. What is the drag if L=1 m? c) Find the heat transfer...
1. Consider an opaque, horizontal square plate (Im by 1m) with an electrical heater on its backside. The front side is exposed to ambient quiescent air that is at 20° C, solar irradiation (from...
1. Consider an opaque, horizontal square plate (Im by 1m) with an electrical heater on its backside. The front side is exposed to ambient quiescent air that is at 20° C, solar irradiation (from sun at 5800° K) of 600 W/m2, and an effective sky temperature of -40° C. The plate surface temperature is kept at Ts 60 C (at steady state condition). Calculate natural convection heat transfer coefficient from the plate. (10 points) What is the electrical power (W/m2)...
Question 11 10 pts For the natural convection case shown below there is a thin square...
Question 11 10 pts For the natural convection case shown below there is a thin square plate with dimensions of 0.6-m x 0.6-m is in a room at 30°C. One side of the plate (is exposed to the room) has a constant temperature of 10°C, while the other side is insulated. The fluid property is given as: Pr = 0.72 k=0.028 W/m°C v=1.9x10-5 m?/s (b) cold surface facing down (a) cold surface facing up What is the Rayleigh numberfor the...
Your Initials ). Convection external flow An array of silicon chips, each of length L 10 mm and width w 10 mm on a side, is insulated on one surface and cooled on the opposite surface by atmospheric...
Your Initials ). Convection external flow An array of silicon chips, each of length L 10 mm and width w 10 mm on a side, is insulated on one surface and cooled on the opposite surface by atmospheric air in parallel flow with T. 24 C and u40 m/s. When in use, the same electrical power is dissipated in each chip, maintaining a uniform heat flux over the entire cooled surface. Assume properties for air are v 184 10 m...
7. Two capillary tubes are placed vertically in an open container of water. One tube has...
7. Two capillary tubes are placed vertically in an open container of water. One tube has a diameter of 2.0 mm, and the other a diameter of 1.0 inch. In which tube will the water rise higher? 8. A sliding plate viscometer, as shown below, is used to measure the viscosity of a fluid. The plate area is 0.75 fr. A force of 1.5 x 10 lb moves the upper plate at a velocity of 10.0 ft/s. What is the...
Heat Transfer problem, ch9 Will give instant thumbs up! Problem 14: Also, after going over example...
Heat Transfer problem, ch9
Will give instant thumbs up!
Problem 14: Also, after going over example problem 9-2, determine the heat transfer by natural convection for the hot plate facing down with 0 = 30°. Cooling of a Plate in Different Orientations Consider a 0.6-m x 0.6-m thin square plate in a room at 30°C. One side of the plac is maintained at a temperature of 90°C, while the other side is insulated, as shown in Fig. 9-18. Determine the...
Problem 4: Heat Exchangers Analysis (25 points) A counterflow plate-type heat exchanger as shown in the...
Problem 4: Heat Exchangers Analysis (25 points) A counterflow plate-type heat exchanger as shown in the figure below is used to cool propane fuel W 50 mm H 25 mm Saturated Vapor propane Thickness t =5 mm H 25 mm Cooling water Length L The flow rate of the cooling water is 0.2 kg/s, while the flow of the propane is 0.1 kg/s. The water enters the heat exchanger at a temperature of 20°C while the propane enters at its...
7. Consider a thin plate of 20 cm by 20 cm is standing vertically in air. One side of the plate is insulated. The plate surface temperature is 50°C. The room air temperature where the plate is located is 20°C. Determine: (a) Is the flow laminar or turbulent? (b) What Nu number correlation will you use to find h? Find Nu. (c) Find the convection heat transfer coefficient (h) (d) Find the rate of convection heat transfer from the plate.
A hot brass plate is having its upper surface cooled by
impinging jet of the air at temperature of 15 oC and convection
coefficient of k=180, 190, 200, 210 220 and 230 W/m2 oK. The 20-cm
wide and 10-cm length brass plate (ρ=8530 kg/m3, and Cp=380 J/kg K.
k=220 w/mK had a uniform initial temperature of 650 oC, and lover
surface of the plat is well insulated. Using uniform node for Δx =
Δy = 2.5 cm and left side...
1. Consider an opaque, horizontal square plate (Im by 1m) with an electrical heater on its backside. The front side is exposed to ambient quiescent air that is at 20° C, solar irradiation (from sun at 5800° K) of 600 W/m2, and an effective sky temperature of -40° C. The plate surface temperature is kept at Ts 60 C (at steady state condition). Calculate natural convection heat transfer coefficient from the plate. (10 points) What is the electrical power (W/m2)...
Question 11 10 pts For the natural convection case shown below there is a thin square plate with dimensions of 0.6-m x 0.6-m is in a room at 30°C. One side of the plate (is exposed to the room) has a constant temperature of 10°C, while the other side is insulated. The fluid property is given as: Pr = 0.72 k=0.028 W/m°C v=1.9x10-5 m?/s (b) cold surface facing down (a) cold surface facing up What is the Rayleigh numberfor the...
Your Initials ). Convection external flow An array of silicon chips, each of length L 10 mm and width w 10 mm on a side, is insulated on one surface and cooled on the opposite surface by atmospheric air in parallel flow with T. 24 C and u40 m/s. When in use, the same electrical power is dissipated in each chip, maintaining a uniform heat flux over the entire cooled surface. Assume properties for air are v 184 10 m...
7. Two capillary tubes are placed vertically in an open container of water. One tube has a diameter of 2.0 mm, and the other a diameter of 1.0 inch. In which tube will the water rise higher? 8. A sliding plate viscometer, as shown below, is used to measure the viscosity of a fluid. The plate area is 0.75 fr. A force of 1.5 x 10 lb moves the upper plate at a velocity of 10.0 ft/s. What is the...
Heat Transfer problem, ch9
Will give instant thumbs up!
Problem 14: Also, after going over example problem 9-2, determine the heat transfer by natural convection for the hot plate facing down with 0 = 30°. Cooling of a Plate in Different Orientations Consider a 0.6-m x 0.6-m thin square plate in a room at 30°C. One side of the plac is maintained at a temperature of 90°C, while the other side is insulated, as shown in Fig. 9-18. Determine the...
Problem 4: Heat Exchangers Analysis (25 points) A counterflow plate-type heat exchanger as shown in the figure below is used to cool propane fuel W 50 mm H 25 mm Saturated Vapor propane Thickness t =5 mm H 25 mm Cooling water Length L The flow rate of the cooling water is 0.2 kg/s, while the flow of the propane is 0.1 kg/s. The water enters the heat exchanger at a temperature of 20°C while the propane enters at its...
