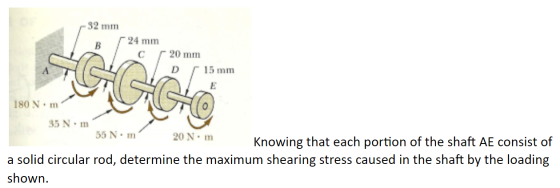

32 mm 24 mm B 20 mm C 15 mm E 180 N m 35 N m 55 N m 20 N m Knowing that each portion of the shaft AE consist of a solid circu

engineering Mechanical-Engineering

Answer 1

Answer #1

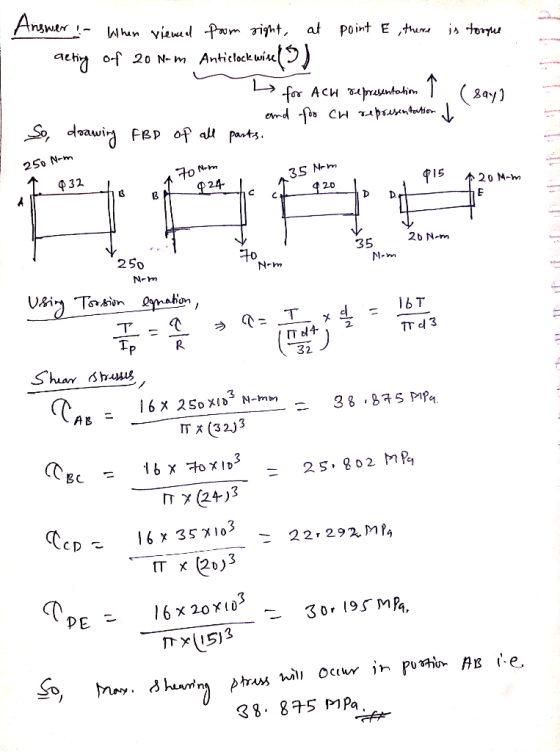

Answer - When viewed from right, at point E, there is torghe aeting of 20 Nom Anticlocka L> for ACH de presentation 1 (say) a

Answer 2

Similar Homework Help Questions

Knowing that each portion of the shafts AB, BC, and CD consist of a solid circular...

Knowing that each portion of the shafts AB, BC, and CD consist of a solid circular rod, determine the shaft in which the maximum shearing stress occurs and the magnitude of that stress if T = 74 N·m. (Round the final answer to one decimal place.) determine The magnitude of the maximum shearing stress Knowing that each portion of the shafts AB, BC, and CD consist of a solid c = 74 Nm. (Round the final answer to one decimal...
5. Knowing that cach portion of the shafts AB, BC, and CD consist of a solid...

5. Knowing that cach portion of the shafts AB, BC, and CD consist of a solid circular rod, determine (a) the shaft in which the maximum shearing stress occurs, (b) the magnitude of that stress. 144 N m 48 N-m dc 21 mm dge 18 mm dAR 15 mm
35 mm A 20 mm 35 mm 00 N-m Figure 2 The solid shaft (Figure 2)...

35 mm A 20 mm 35 mm 00 N-m Figure 2 The solid shaft (Figure 2) is fixed at C and subjected to the torsional loadings as shown. Determine the shear stress at points A and B and sketch the shear stress on volume elements located at these points.

D Question 3 60 mi 24 mm 15 m 1s0 me Pl 32 16 mm 30...

D Question 3 60 mi 24 mm 15 m 1s0 me Pl 32 16 mm 30 mm P2 applied to the bar shown with P1 - 750 N, P2 - 500 N and P3 - 10N. Determine the normal and shearing Three forces are stresses at (a) point a, (b) point b, (c) point c. (I am expecting 6 answers to this question, two for point a, two for point b, and two for point c. Please make your answer...
01. Shaft BC is hollow with inner and outer diameters of 90 mm and 120 mm,...

01. Shaft BC is hollow with inner and outer diameters of 90 mm and 120 mm, respectively. Shafts AB and CD are solid and of diameter d. For the loading shown, determine (a) the maximum and minimum shearing stress in shaft BC, (b) the required diameter d of shafts AB and CD if the allowable shearing stress in these shafts is 65 MPa. [TA = 7.5 kNm; TB = 16 kNm; TC = 30 kNm; TD = 7 kNm] 01....
PROBLEM 3.55 950 mm Two solid steel shafts (G 77.2 GPa) are connected to a coupling...

PROBLEM 3.55 950 mm Two solid steel shafts (G 77.2 GPa) are connected to a coupling disk B and to fixed supports at A and C. For the loading shown, determine (a) the reaction at each support, (b) the maximum shearing stress in shaft AB. (c) the maximum shearing stress in shaft BC. 200 mm 38 mm L4 IN-m 50 mm

Question - 5A [15 marks] Shaft BC is hollow with inner and outer diameters of 100...

Question - 5A [15 marks] Shaft BC is hollow with inner and outer diameters of 100 mm and 130 mm, respectively. Shafts AB and CD are solid and of diameter d. For the loading shown in Figure Q-5A, determine (a) The maximum and minimum shearing stress in shaft BC [6 marks] (b) The required diameter d of shafts AB and CD if the allowable shearing stress in these shafts is 60 MPa [5 marks] (c) Which shaft is better to...
14. A solid shaft 65 mm dia. Is subjected to a torque of 75 MN-m. find...

14. A solid shaft 65 mm dia. Is subjected to a torque of 75 MN-m. find the maximum stress induced in the shaft 15. a solid shaft is to transmit a torque of 11 x 105 N-mm. find the minimum diameter of shaft, if shearing stress is not to exceed 75 MPa.
Consider the beam and loading shown. Given: P 8.8 kN 03 m 40 mm 12 mm...

Consider the beam and loading shown. Given: P 8.8 kN 03 m 40 mm 12 mm 150 mm 12 mm 100 mm -200 mm 1.5 m 1. Determine the largest shearing stress in section n-n. (Round the final answer to the nearest whole number.) kPa. The largest shearing stress is 02019 McGraw HIll Bducation Al rights cosorved For the beam and loading shown, consider section-nand take P 177 kN. 160 mm 20 mm 100 mm 30 mm 500 mm- 500...

The power loading on a uniform shaft of 20 mm diameter solid circular cross section is...

The power loading on a uniform shaft of 20 mm diameter solid circular cross section is shown in Figure 2. The speed of the shaft is 1200 rpm. The shear modulus (G) of steel may be taken as 80 GPa C (a) Sketch the torque diagram; (b) Determine the maximum shear stress in the shaft (c) Calculate the angle of twist between the two ends of the shaft 1.2 m 1.8 m 6 kW 11 kW A Тв TA Tc...
