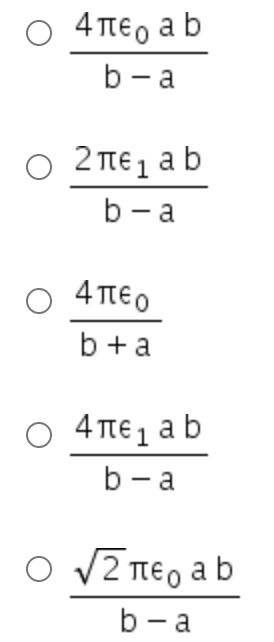

Multiple choice Electromagnetics problem:
Homework Answers

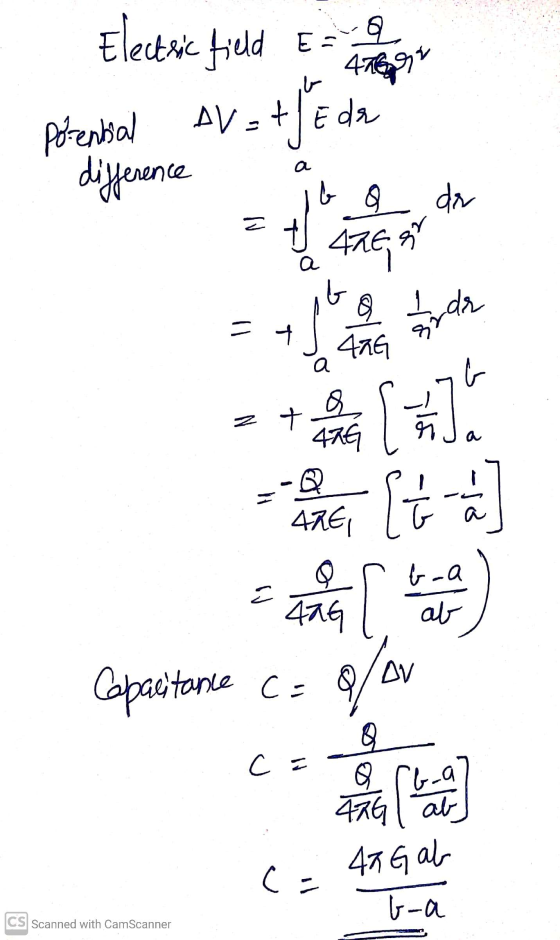

![Elective field Eure Porenbal difference AV = te da a = true ] Capacitance C= Q/ 9 c = C = 4AG ab - را CS Scanned with CamScan](http://img.homeworklib.com/questions/5e5b5380-47e1-11eb-9d41-ad13e3101ed1.png?x-oss-process=image/resize,w_560)
Add Answer to:
Multiple choice Electromagnetics problem:

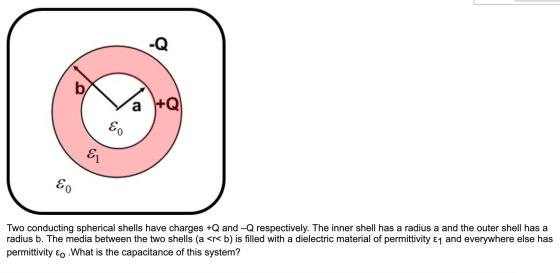

Two conducting spherical shells have charges +Q and -Q respectively. The inner...
The space between two concentric conducting spherical shells of radii b = 2.20 cm and a...
The space between two concentric conducting spherical shells of radii b = 2.20 cm and a = 1.20 cm is filled with a substance of dielectric constant κ = 24.2. A potential difference V = 50.0 V is applied across the inner and outer shells. Determine (a) the capacitance of the device, (b) the free charge q on the inner shell, and (c) the charge q induced along the surface of the inner shell.
The space between two concentric conducting spherical shells of radii b = 1.70 cm and a...
The space between two concentric conducting spherical shells of radii b = 1.70 cm and a = 1.20 cm is filled with a substance of dielectric constant κ = 20.5. A potential difference V = 62.0 V is applied across the inner and outer shells. (a) Determine the capacitance of the device. (b) Determine the free charge q on the inner shell. (c) Determine the charge q' induced along the surface of the inner shell.
Two very long concentric conducting cylindrical shells are arranged as seen below. The inner shell has...
Two very long concentric conducting cylindrical shells are arranged as seen below. The inner shell has a radius a, and the outer shell a radius b. Each shell has a length L. A charge of -Q is spread over the inner shell and a charge of +Q resides on the outer shell. Ignore fringe fields (e.g. assume each cylinder is very long). Find the electric field everywhere in space. Find the potential difference between the two shells. Which one is...
A spherical capacitor is formed from two concentric spherical conducting shells separated by vacuum. The inner...
A spherical capacitor is formed from two concentric spherical conducting shells separated by vacuum. The inner sphere has a radius of ra = 12.4 cm , and the outer sphere has a radius of rb = 14.9 cm . A voltage of 120 V is applied to the capacitor. a) What is the capacitance of the capacitor? Use ϵ0 = 8.85×10−12 F/m for the permittivity of free space b) What is the magnitude E1 of the electric field E⃗ at radius...
A spherical capacitor is formed from two concentric spherical conducting shells separated by vacuum. The inner...
A spherical capacitor is formed from two concentric spherical conducting shells separated by vacuum. The inner sphere has a radius of ra = 12.3 cm , and the outer sphere has a radius of rb = 15.0 cm . A potential difference of 120 V is applied to the capacitor. a) What is the capacitance of the capacitor? Use ϵ0 = 8.85×10−12 F/m for the permittivity of free space. b)What is the magnitude E1 of the electric field E⃗ at radius...
consider two thin conducting spherical shells as shown in the figure 9 Consider two thin, conducting,...
consider two thin conducting spherical shells as shown in the
figure
9 Consider two thin, conducting, spherical shells as shown in the figure. The inner shell has a radius n=15.0 cm and a charge of 10.0 nC. The outer shell has a radius rz=30.0 cm and a charge of 15.0 nC. Find (a) the electric field E and (b) the electric potential V in regions A, B, and C, with V=0 at-o. 0 An air-filled capacitor consists of two parallel...
A spherical capacitor is formed from two concentric spherical conducting shells separated by a vacuum. The...
A spherical capacitor is formed from two concentric spherical conducting shells separated by a vacuum. The inner sphere has a radius of rarar_a = 12.0 cm, and the outer sphere has a radius of rbrbr_b = 14.8 cm. A potential difference of 120 VV is applied to the capacitor. a. What is the capacitance of the capacitor? Use ϵ0ϵ0epsilon_0 = 8.85×10−12 F/mF/m for the permittivity of free space. b. What is the magnitude E1 of the electric field E at...
A positive point charge is surrounded by two spherical conducting shells. The inner shel has a...
A positive point charge is surrounded by two spherical conducting shells. The inner shel has a total charge of 2Q and the outer shell has a total charge of 3Q. What is the total charge on the inner surface and outer surface of each shell? 302 2)
A conducting spherical shell of inner radius a= 50.0 cm and outer radius b= 60.0 cm...
A conducting spherical shell of inner radius a= 50.0 cm and
outer radius b= 60.0 cm has a net charge Q1= -7.00 μC. A second
larger conducting shell of inner radius c= 70.0 cm and outer radius
d= 80.0 cm has a net charge of Q2= +3.00 μC, and it is concentric
with the first shell as shown in the figure to the left. What is
the magnitude and direction of the electric field as a function of
distance from...
A small conducting spherical shell with inner radius a and outer radius b is concentric with a larger conducting spherical shell with inner radius c and outer radius d.
A small conducting spherical shell with inner radius a and outer radius b is concentric with a larger conducting spherical shell with inner radius c and outer radius d. The inner shell has total charge +2q, and the outer shell has charge +4q. (a) Calculate the magnitude of the electric field in terms of q and the distance r from the common center of the two shells for r < a, b < r < c, and r > d. Note...
Two very long concentric conducting cylindrical shells are arranged as seen below. The inner shell has a radius a, and the outer shell a radius b. Each shell has a length L. A charge of -Q is spread over the inner shell and a charge of +Q resides on the outer shell. Ignore fringe fields (e.g. assume each cylinder is very long). Find the electric field everywhere in space. Find the potential difference between the two shells. Which one is...
consider two thin conducting spherical shells as shown in the
figure
9 Consider two thin, conducting, spherical shells as shown in the figure. The inner shell has a radius n=15.0 cm and a charge of 10.0 nC. The outer shell has a radius rz=30.0 cm and a charge of 15.0 nC. Find (a) the electric field E and (b) the electric potential V in regions A, B, and C, with V=0 at-o. 0 An air-filled capacitor consists of two parallel...
A positive point charge is surrounded by two spherical conducting shells. The inner shel has a total charge of 2Q and the outer shell has a total charge of 3Q. What is the total charge on the inner surface and outer surface of each shell? 302 2)
A conducting spherical shell of inner radius a= 50.0 cm and
outer radius b= 60.0 cm has a net charge Q1= -7.00 μC. A second
larger conducting shell of inner radius c= 70.0 cm and outer radius
d= 80.0 cm has a net charge of Q2= +3.00 μC, and it is concentric
with the first shell as shown in the figure to the left. What is
the magnitude and direction of the electric field as a function of
distance from...
