Please help

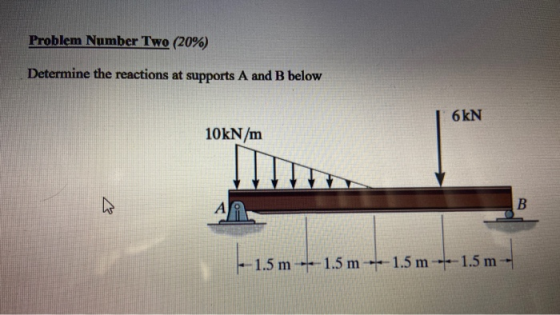

Problem Number Two (20%) Determine the reactions at supports A and B below 6 kN 10kN/m А) B - 1.5 m -- 1.5 m --1.5 m -----1.5

engineering Mechanical-Engineering

Answer 1

Answer #1

10 kN/m 6 KN B 1.5m 1.5m ws. 1.sm Rey RAY PAY +RBJ 15+6=21 KN taking moment about À (1x 15) + (6x4-5) = Pyx6 42 - Roy x 6 RBY
