Water flows in a 15 in. pipe that is connected in series with a 4 in....

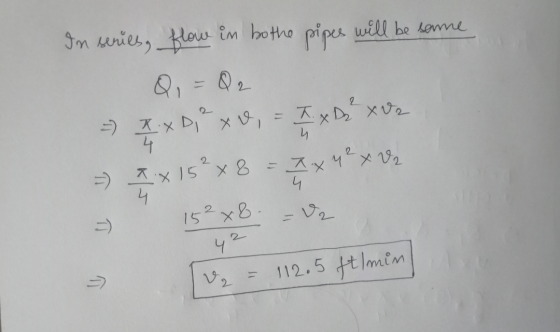

Water flows in a 15 in. pipe that is connected in series with a 4 in. pipe. If the water velocity in the 15 in. pipe is 8 ft/min, what is the water velocity in the 4 in. pipe?
Homework Answers
