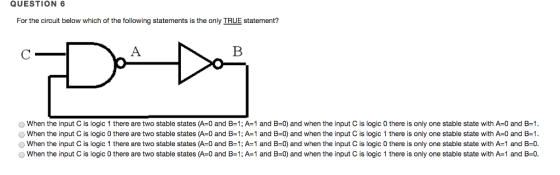

QUESTION 6 For the circuit below which of the following statements is the only IRUE statement?...
5) Decoders: Given the following circuit, S0 and S1 are computed using a 4-2 priority encoder with the priorities indicated on the figure. (hint: IDLE signal is always 0, if any of the inputs 10,11,12, or 13 is 1) 6 points) 4-to-2 Priority Encoder 10 YO YI 13 IDLE 13> 11 > 12>10 12 Full c Adder So Fill the following table showing the output signals S0 and SI given the input signals w, x, y, a) and z. Prof...
A combination circuit is specified by the following Boolean functions listed below. h(a, b, c) = b,c' + a'c Implement the circuit with a 3x8 decoder. Provide truth table and drawing the logic/circuit diagram. Use the block diagram for the decoder provided in Figure A4 in supplements. Please label the inputs and outputs clearly. Note: use single 3x8 decoder Question 2 (15 points] A priority encoder is an encoder circuit that includes the Truth Table of a priority function. The...
The sequential circuit shown below has two flip-flops A and B and one input x. It consists of a combinatorial logic connected to the flip-flops, as shown in the Figure 1. Below. Analyze the sequential circuit below: A J A' K Q lo B 2-to-1 MUX Y J Q 11 S B K CLK Figure 1a. Sequential Circuit a) Derive the next state equations for the sequential circuit above: find expressions for JA and KA and Jb and KB as...
(5pts) 18. What component needs to be placed in the location of the question mark? a. A 10MQ resistor b. A 15M2 resistor c. A 30MΩ resistor d. A 60M2 resistor (5pts) 19. Determine the logical values of C and D by filling in the truth table for all possible values of A and B for the circuits shown below. A B D B A 0 0 C D 0 1 0 (5pts) 20. Which of the following statements are...
3. Finite State Machine. Using a ROM based finite state machine (FSM), design a bi-directional repetitive 3-bit modulo-6 (0,1,2,3,4,5) counter (see Table 3). The design has one input named Dir and three outputs named B2, B1 and BO. The outputs (B2, B1 and BO) are dependent upon being in the present state only. After each clock pulse, when Dir is at logic "O', the outputs (B2, B1, BO) step through the count sequence in following order:- 0,1,2,3,4,5. After each clock...
Convert the following logic circuit below to its corresponding logic function without any simplification. 2. Assume that B consists of three bits: B2, B1, and B0. Determine the logic functions that evaluate to 1 (“true”) if and only if the following situations are true. (Reduce each function to the fewest terms and gates using Boolean algebra rules or DeMorgan’s Theorem, as needed.) a. B contains only one 0. b. B contains only one 1. c. B contains an odd number...
Given the FSM schematic below, answer the following
question
Question 1. (30 POINTS) Given the FSM schematic below, answer the following questions: A, A CLK si s, Output 0 0 Reset 1.A.) (6 POINTS) What are the Boolean equations for next state and output logic? 1.B.) (4 POINTS) Is this a Moore or Mealy FSM? Why? Please explain. 1.C.) (10 POINTS) Draw the truth table for next state and output logic for this circuit. 1.D.) (10 POINTS) Draw the state...
. Regarding the following diagram, which of the following statements are correct? (Fig. 25) X-1 X=1 0—1—3—3— 4+5+6+7+3 → 5 X 47 x-1 X=6 X-04 Fig. 25 In this diagram there are two "o" states, they are different states and we don't have state reduction on them, ОА. In this diagram there are two "7" states, they are different states and we don't have state reduction on them, B. In this diagram, there are two "3" states, but they are...
please help question 2
2. Design a half-adder with the constraint that you can only use NAND and NOR gates. The circuit inputs are two bits I and y and the outputs are the sum bit s and carry bit c. Draw a circuit diagram and label each input and output. 3. The digital circuit below contains a latch and two flip-flops. Use the wave forms provided to find Qa. Qb, and Qe. Assume that all three states have initial...
task 1: In digital electronics and modern computer hardware, a flip-flop is sequential digital circuit used as a basic memory element. It has two stable states and can be used to store state information. One of its states represents '1' while the other represents '0'. The most common types of flip-flops are SR-flip-flop, JK-flip-flop, and D flip-flop. When used in a finite-state machine, the output and next state depend not only on its current input, but also on its current...
