Question

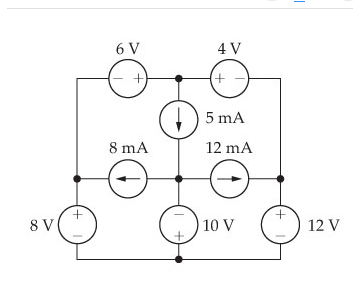

Is the interconnection in the figure valid? yes or no.

6 V 4 V 5 mA 8 mA 12 mA 10 V 12 V 1

0 0
Add a comment Improve this question Transcribed image text

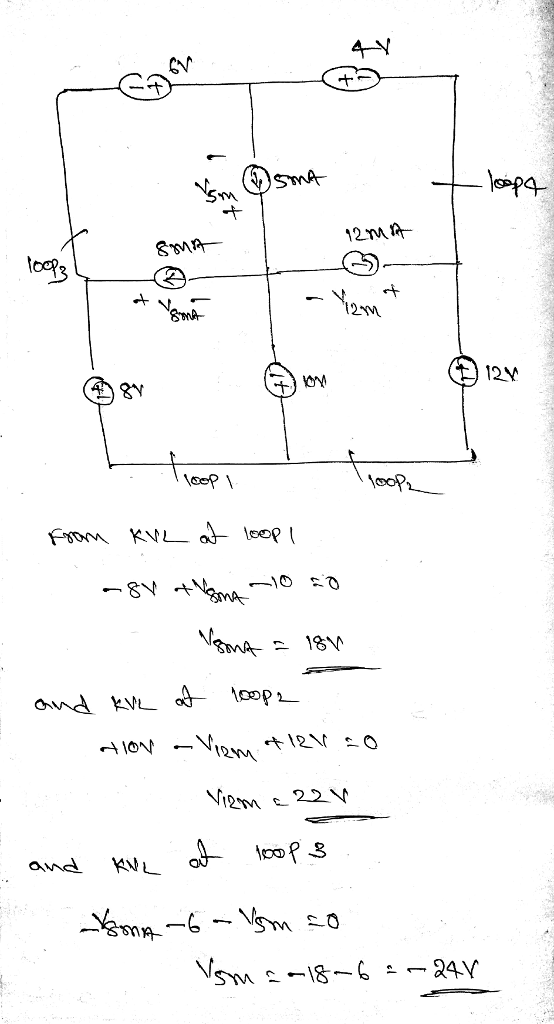

Answer #1

Add a comment
Know the answer?
Add Answer to:
Is the interconnection in the figure valid? yes or no. 6 V 4 V 5 mA...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
