A spring with spring constant 33 N/m is attached to the ceiling, and a 5.1-cm-diameter, 1.5...

A spring with spring constant 33 N/m is attached to the ceiling, and a 5.1-cm-diameter, 1.5 kg metal cylinder is attached to its lower end. The cylinder is held so that the spring is neither stretched nor compressed, then a tank of water is placed underneath with the surface of the water just touching the bottom of the cylinder. When released, the cylinder will oscillate a few times but, damped by the water, quickly reach an equilibrium position.

When in equilibrium, what length of the cylinder is submerged?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

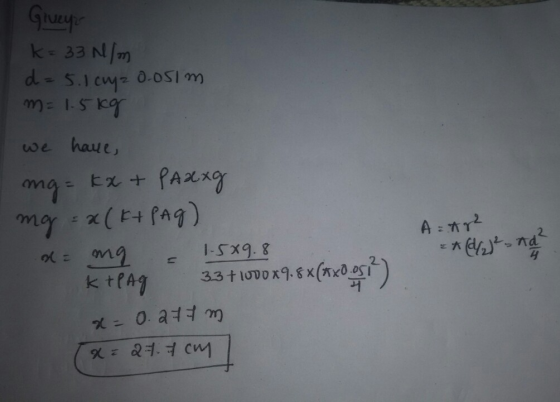

Answer #1

0 0
Add a comment
