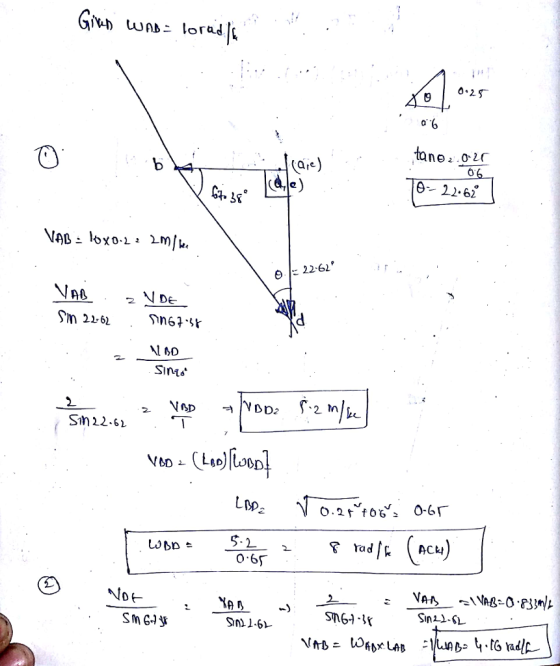

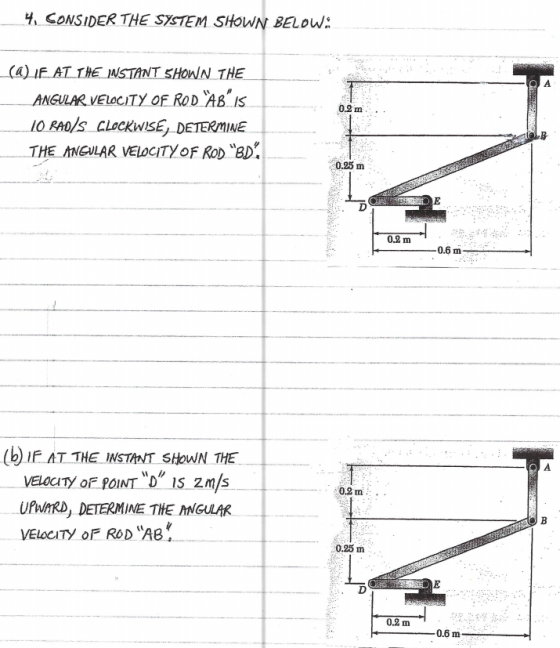

H, CONSIDER THE SYSTEM SHOWN BELOW: (a) IF AT THE NSTANT SHOWN THE ANGULAR VELOCITY OF...
At the instant shown, rod AB has zero angular acceleration and an angular velocity of 8...
At the instant shown, rod AB has zero angular acceleration and an angular velocity of 8 rad/s clockwise. Knowing that I 0.3 m, determine the acceleration of the midpoint C of member BD. E C A D Fig. P15.129 and P15.130
At the instant shown, rod AB has zero angular acceleration and an angular velocity of 8 rad/s clockwise. Knowing that I 0.3 m, determine the acceleration of the midpoint C of member BD. E C A D Fig. P15.129...
Problem 3.3 In the engine system shown, the crank AB has a constant counterclockwise angular velocity of 200 rad/s...
Problem 3.3 In the engine system shown, the crank AB has a constant counterclockwise angular velocity of 200 rad/s. Assume that AB-75mm and BD-200 mm. For the crank position indicated determine (a) the angular velocity of the connecting rod BD, (b) the angular acceleration of the connecting rod BD and (c) the velocity and the acceleration of point D. Problem 3.4 A thin homogeneous wire with Determine the period of small oscillation if the wire (a) is suspended as shown,...
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Dete...
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad...
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad/sec clockwise and α =-2k rad/s, determine i) The angular velocity of link (ii) The velocity of the midpoint of link BD. (iii) The acceleration of point D. (iv) The angular acceleration of link BD 5 in. 9 in. 12 in
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad/sec clockwise and...
5. (Section 16.8) At the instant shown, rod AB rotates with angular velocity @ = 1.6...
5. (Section 16.8) At the instant shown, rod AB rotates with angular velocity @ = 1.6 rad/s and angular acceleration a = 2 rad/s², both in the counterclockwise direction. The collar at B is pin-connected to link BC and slides over rod AB. ФА 0 HA a 0.3 m 0.2 m a. Determine the velocity of the pin at B and the angular velocity of link BC at this instant b. Determine the acceleration of the pin at B and...
The instant shown, bar AB has an angular velocity of 4.5 rad/s and an angular acceleration...
The instant shown, bar AB has an angular velocity of 4.5 rad/s and an angular acceleration of 2.4 rad/s2, both clockwise. 25 in. - 20 in. 20 in. - Determine the angular acceleration of bar BD by using the vector approach. (You must provide an answer before moving to the next part.) The angular acceleration of bar BD is r r ad/s2 counterclockwise.
Knowing that at the instant shown ter AB has a constant angular velocity of 4 radis...
Knowing that at the instant shown ter AB has a constant angular velocity of 4 radis clockwise, determine the angular acceleration of bar BD and bar DE (Round the final answers to two decimal places 175 B Th15 The angular acceleration of bat eos The angular acceperation of har DES rady Clockwise radis? clockwise
Knowing that at the instant shown bar AB has an angular velocity of 6.5 rad/s and...
Knowing that at the instant shown bar AB has an angular velocity of 6.5 rad/s and an angular acceleration of 4 rad/s2,both clockwise, determine the angular acceleration of bar BD and bar DE by using the vector approach. (Round the final answers to one decimal place.) 100 mm 200 mm 75 mm D The angular acceleration of bar BD is The angular acceleration of bar DE is rad/s2 clockwise. radis2 dlockwise
Problem 1 Crank AB is rotating with an angular velocity of 4 rad/s as shown below....
Problem 1 Crank AB is rotating with an angular velocity of 4 rad/s as shown below. Currently, crank AB is vertical, and link BC is horizontal. Determine the angular velocity of link BC, and the velocity of piston C at this instant. Hint: C goes up. 0.6 m 45° B 0.3 m ФАВ 4 rad/s
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar B...
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar BD b) the angular acceleration of bar AB 16 in 10 in
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine...
At the instant shown, rod AB has zero angular acceleration and an angular velocity of 8 rad/s clockwise. Knowing that I 0.3 m, determine the acceleration of the midpoint C of member BD. E C A D Fig. P15.129 and P15.130
At the instant shown, rod AB has zero angular acceleration and an angular velocity of 8 rad/s clockwise. Knowing that I 0.3 m, determine the acceleration of the midpoint C of member BD. E C A D Fig. P15.129...
Problem 3.3 In the engine system shown, the crank AB has a constant counterclockwise angular velocity of 200 rad/s. Assume that AB-75mm and BD-200 mm. For the crank position indicated determine (a) the angular velocity of the connecting rod BD, (b) the angular acceleration of the connecting rod BD and (c) the velocity and the acceleration of point D. Problem 3.4 A thin homogeneous wire with Determine the period of small oscillation if the wire (a) is suspended as shown,...
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad/sec clockwise and α =-2k rad/s, determine i) The angular velocity of link (ii) The velocity of the midpoint of link BD. (iii) The acceleration of point D. (iv) The angular acceleration of link BD 5 in. 9 in. 12 in
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad/sec clockwise and...
5. (Section 16.8) At the instant shown, rod AB rotates with angular velocity @ = 1.6 rad/s and angular acceleration a = 2 rad/s², both in the counterclockwise direction. The collar at B is pin-connected to link BC and slides over rod AB. ФА 0 HA a 0.3 m 0.2 m a. Determine the velocity of the pin at B and the angular velocity of link BC at this instant b. Determine the acceleration of the pin at B and...
The instant shown, bar AB has an angular velocity of 4.5 rad/s and an angular acceleration of 2.4 rad/s2, both clockwise. 25 in. - 20 in. 20 in. - Determine the angular acceleration of bar BD by using the vector approach. (You must provide an answer before moving to the next part.) The angular acceleration of bar BD is r r ad/s2 counterclockwise.
Knowing that at the instant shown ter AB has a constant angular velocity of 4 radis clockwise, determine the angular acceleration of bar BD and bar DE (Round the final answers to two decimal places 175 B Th15 The angular acceleration of bat eos The angular acceperation of har DES rady Clockwise radis? clockwise
Knowing that at the instant shown bar AB has an angular velocity of 6.5 rad/s and an angular acceleration of 4 rad/s2,both clockwise, determine the angular acceleration of bar BD and bar DE by using the vector approach. (Round the final answers to one decimal place.) 100 mm 200 mm 75 mm D The angular acceleration of bar BD is The angular acceleration of bar DE is rad/s2 clockwise. radis2 dlockwise
Problem 1 Crank AB is rotating with an angular velocity of 4 rad/s as shown below. Currently, crank AB is vertical, and link BC is horizontal. Determine the angular velocity of link BC, and the velocity of piston C at this instant. Hint: C goes up. 0.6 m 45° B 0.3 m ФАВ 4 rad/s
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar BD b) the angular acceleration of bar AB 16 in 10 in
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine...
