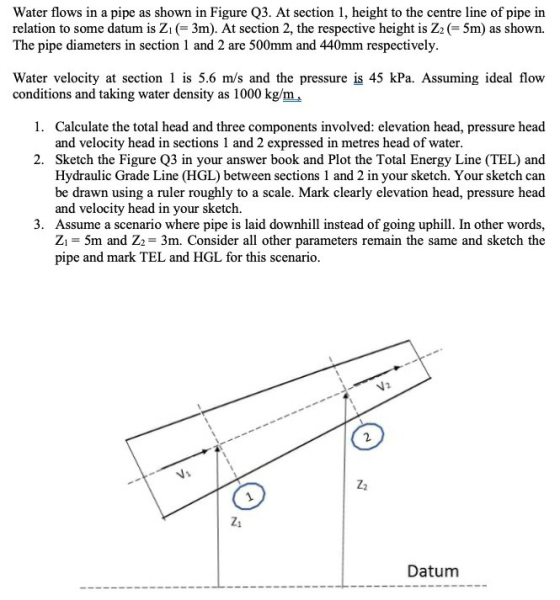

Water flows in a pipe as shown in Figure Q3. At section 1, height to the...
QUUESTION1 Water flows through a pipe as shown in Figure 1. The losses in the pipe can be express...
QUUESTION1 Water flows through a pipe as shown in Figure 1. The losses in the pipe can be expressed as 0.025 V2 per meter length of pipe, where V is the velocity in the pipe. The length AB is 6 m and BC is 11 m, determine the discharge and the pressure at B 2m 3m 5m 20mm diameter Figure 1: Schematic of water flowing from a tank through the pipe.
QUUESTION1 Water flows through a pipe as shown in...
Problem 1 Water flows down the sloped pipe as shown. There is a partial obstruction in...
Problem 1 Water flows down the sloped pipe as shown. There is a partial obstruction in the pipe between sections (1) and (2) so the manometer must be used to determine the difference in pressure these two sections. (a) If the pressure at section 1 is 200 kPa, determine the pressure at section 2. (b) Use your answer from (a) to determine the headloss between sections 1 and 2 (c) What would the manometer reading be if there was no...
The water is flowing through a pipe having diameter 22 Cm and 12Cm at sections (1)...
The water is flowing through a pipe having diameter 22 Cm and 12Cm at sections (1) and (2) respectively. The volumetric flow rate is 0.2m3/s. The section (1) is 8m above datum and section (2) is 5m above datum. If the pressure at section (1) is 40N/Cm2. Find the pressure at section (2). Density of water=1000kg/m3. Select one: O a. 296781.2 N/m2 O b. 286754.9 N/m2 O c. 267212.4 N/m2 O d. 276729.1 N/m2 e. 288667.4 N/m2
Water, with a kinematic viscosity of 1.21x10 square feet/second, flows from reservoir A to B as...
Water, with a kinematic viscosity of 1.21x10 square feet/second, flows from reservoir A to B as shown in the figure. The pipe has a roughness height of 0.0005-feet, flowrate of 26 cfs, elbows with loss coefficients of 0.2, and a friction factor of 0.019. a) Determine the pipe diameter. b) Sketch the EGL and HGL Elevation z1 = 44 ft (1) w Total length = 1700 ft A Elevation Z2 = 0 V (2) D B
3. (20%) Water of 15°C temperature is pumped at a rate of 0.01 m/s through the...
3. (20%) Water of 15°C temperature is pumped at a rate of 0.01 m/s through the 800-m long and 10-cm diameter drawn tubing from the upstream reservoir at an elevation of 10 m to the downstream reservoir at an elevation of 30 m. The pump is located at an elevation of 10 m below the datum and at a distance of 350 m from the upstream reservoir as shown. (a) Find the values of the Reynolds number and the friction...
Hc B. Datum D- pipe diameter Pipe lengths and materials in the reaches AE, CE and...
Hc B. Datum D- pipe diameter Pipe lengths and materials in the reaches AE, CE and EB are the same HA 145 ft, Ha 90 ft, D 12 inches;LE LE LE 1600 ft, Grw-90 Case 1: Hc 130 ft; Case 2: Hc 100 ft; Case 3: Hc 230 ft Compute the flow rate in the reaches AE, CE and EB, the hydraulic head in E, and the total energy per unit fluid weight in E (sum of elevation, pressure and...
Water at 10℃ flows with a Re of 1400 in a circular cross section pipe with...
Water at 10℃ flows with a Re of 1400 in a circular
cross section pipe with a diameter of 8cm.
Calculate
a) The flow rate
b) The pressure drop over a 3m length
c) The velocity at r= 2cm
d) The maximum velocity
7:07 ൽ ഇ ം .. 59% പ Wart 4 1K it in a Recognize
1. Water flows from Reservoir A to Reservoir B. The pipe diameter D is 1 m...
1. Water flows from Reservoir A to Reservoir B. The pipe diameter D is 1 m and the pipe length L is 300 m. H 16 m, h 2 m and the pipe friction factor is f 0.01. In your calculations consider K- 1 at the pipe outlet in tank B and neglect the loss of the inlet in tank A a. b. c. What will be the discharge in the pipe? What will be the pressure at point P...
1. Assume ideal flow from reservoir A to reservoir B. The pipe from reservoir A to...
1. Assume ideal flow from reservoir A to reservoir B. The pipe from reservoir A to the turbine is a constant diameter. Sketch the HGL and EGL as accurate as possible. Indicate on the sketch where the minimum and maximum pressures are. pomp TJ TOEBE Match the correct Key term with the correct Definition Key Terms Bernoulli Equation Cavitation Continuity Equation Elevation Head Energy Grade Line Definitions Nothing changes with time, velocity is constant Most used and abused equation in...
In the figure, water flows through a horizontal pipe and then out into the atmosphere at...
In the figure, water flows through a horizontal pipe and then
out into the atmosphere at a speed v1 = 16.0
m/s. The diameters of the left and right sections of the pipe are
5.20 cm and 3.00 cm. (a) What volume of water
flows into the atmosphere during a 10 min period? In the left
section of the pipe, what are (b) the speed
v2 and (c) the gauge
pressure?
Question 1 In the figure, water flows through a...
QUUESTION1 Water flows through a pipe as shown in Figure 1. The losses in the pipe can be expressed as 0.025 V2 per meter length of pipe, where V is the velocity in the pipe. The length AB is 6 m and BC is 11 m, determine the discharge and the pressure at B 2m 3m 5m 20mm diameter Figure 1: Schematic of water flowing from a tank through the pipe.
QUUESTION1 Water flows through a pipe as shown in...
Problem 1 Water flows down the sloped pipe as shown. There is a partial obstruction in the pipe between sections (1) and (2) so the manometer must be used to determine the difference in pressure these two sections. (a) If the pressure at section 1 is 200 kPa, determine the pressure at section 2. (b) Use your answer from (a) to determine the headloss between sections 1 and 2 (c) What would the manometer reading be if there was no...
The water is flowing through a pipe having diameter 22 Cm and 12Cm at sections (1) and (2) respectively. The volumetric flow rate is 0.2m3/s. The section (1) is 8m above datum and section (2) is 5m above datum. If the pressure at section (1) is 40N/Cm2. Find the pressure at section (2). Density of water=1000kg/m3. Select one: O a. 296781.2 N/m2 O b. 286754.9 N/m2 O c. 267212.4 N/m2 O d. 276729.1 N/m2 e. 288667.4 N/m2
Water, with a kinematic viscosity of 1.21x10 square feet/second, flows from reservoir A to B as shown in the figure. The pipe has a roughness height of 0.0005-feet, flowrate of 26 cfs, elbows with loss coefficients of 0.2, and a friction factor of 0.019. a) Determine the pipe diameter. b) Sketch the EGL and HGL Elevation z1 = 44 ft (1) w Total length = 1700 ft A Elevation Z2 = 0 V (2) D B
3. (20%) Water of 15°C temperature is pumped at a rate of 0.01 m/s through the 800-m long and 10-cm diameter drawn tubing from the upstream reservoir at an elevation of 10 m to the downstream reservoir at an elevation of 30 m. The pump is located at an elevation of 10 m below the datum and at a distance of 350 m from the upstream reservoir as shown. (a) Find the values of the Reynolds number and the friction...
Hc B. Datum D- pipe diameter Pipe lengths and materials in the reaches AE, CE and EB are the same HA 145 ft, Ha 90 ft, D 12 inches;LE LE LE 1600 ft, Grw-90 Case 1: Hc 130 ft; Case 2: Hc 100 ft; Case 3: Hc 230 ft Compute the flow rate in the reaches AE, CE and EB, the hydraulic head in E, and the total energy per unit fluid weight in E (sum of elevation, pressure and...
Water at 10℃ flows with a Re of 1400 in a circular
cross section pipe with a diameter of 8cm.
Calculate
a) The flow rate
b) The pressure drop over a 3m length
c) The velocity at r= 2cm
d) The maximum velocity
7:07 ൽ ഇ ം .. 59% പ Wart 4 1K it in a Recognize
1. Water flows from Reservoir A to Reservoir B. The pipe diameter D is 1 m and the pipe length L is 300 m. H 16 m, h 2 m and the pipe friction factor is f 0.01. In your calculations consider K- 1 at the pipe outlet in tank B and neglect the loss of the inlet in tank A a. b. c. What will be the discharge in the pipe? What will be the pressure at point P...
1. Assume ideal flow from reservoir A to reservoir B. The pipe from reservoir A to the turbine is a constant diameter. Sketch the HGL and EGL as accurate as possible. Indicate on the sketch where the minimum and maximum pressures are. pomp TJ TOEBE Match the correct Key term with the correct Definition Key Terms Bernoulli Equation Cavitation Continuity Equation Elevation Head Energy Grade Line Definitions Nothing changes with time, velocity is constant Most used and abused equation in...
In the figure, water flows through a horizontal pipe and then
out into the atmosphere at a speed v1 = 16.0
m/s. The diameters of the left and right sections of the pipe are
5.20 cm and 3.00 cm. (a) What volume of water
flows into the atmosphere during a 10 min period? In the left
section of the pipe, what are (b) the speed
v2 and (c) the gauge
pressure?
Question 1 In the figure, water flows through a...
