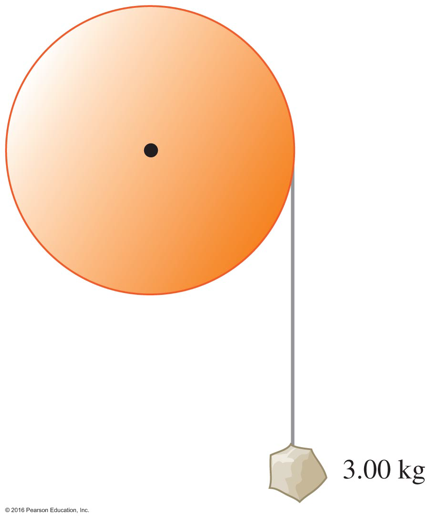

A solid cylinder has a string would around it, at the end of which is attached a stone of mass 3.00 kg. The stone, starting from rest, falls 2.50 m. After falling this distance, the stone is moving at 3.50 m/s. What is the moment of inertia and mass of the cylinder?
Homework Answers
Add Answer to:
A solid cylinder has a string would around it, at the end of
which is attached...
A solid cylinder of radius R = 0.375 m has a string would around it, at...
A solid cylinder of radius R = 0.375 m has a string would around it, at the end of which is attached a stone of mass 3.00 kg. The stone, starting from rest, falls 2.50 m. After falling this distance, the stone is moving at 3.50 m/s. What is the moment of inertia and mass of the cylinder? I of Solid Cylinder = 1/2 MR2 Please show all steps, including algebra. Thank you!
PartA A light string is wrapped around the outer rim of a solid uniform cylinder of...
PartA A light string is wrapped around the outer rim of a solid uniform cylinder of diameter 75.0 cm that can rotate without friction about an axle through its center. A 3.00 kg stone is tied to the free end of the string, as shown in the figure (Figure 1) When the system is released from rest, you determine that the stone reaches a speed of 3.50 m/s after having fallien 2.50m What is the mass of the cylinder? kg...
A light string is wrapped around a solid cylinder, and a block of mass m=100g hangs...
A light string is wrapped around a solid cylinder, and a block
of mass m=100g hangs from the free end of the string, as shown
Figure A2.17. When released, the block falls a
distance of 1.00m in 2.00s.
Draw free-body (or force) diagrams for the block and the
cylinder.
Calculate the tension in the string.
Determine the mass (M) of the cylinder.
A light string is wrapped around a solid cylinder, and a block of mass m 100 g hangs...
M, a solid cylinder (M=2.23 kg, R=0.131 m) pivots on a thin, fixed, frictionless bearing. A...
M, a solid cylinder (M=2.23 kg, R=0.131 m) pivots on a thin, fixed, frictionless bearing. A string wrapped around the cylinder pulls downward with a force F which equals the weight of a 0.870 kg mass, i.e., F = 8.535 N. Calculate the angular acceleration of the cylinder. 5.84×101 rad/s^2 If instead of the force F an actual mass m = 0.870 kg is hung from the string, find the angular acceleration of the cylinder. How far does m travel...
A solid sphere has a 0.8 m long string wrapped around it. The free-end of the...
A solid sphere has a 0.8 m long string wrapped around it. The free-end of the string is held and the solid sphere is released thus unwinding the string as it falls. Determine how fast the solid sphere will be going at the moment the string is completely unwound assuming no thermal energy is generated. String Blocks & a pulley In the diagram below the red block has a mass of 9 kg, the blue block has a mass of...
A solid, 3.00-kg disk has a string wrapped around its circumference as shown below. The string...
A solid, 3.00-kg disk has a string
wrapped around its circumference as shown below. The string is
attached to the ceiling. When the disk is released, it accelerates
downward as the string unrolls. The disk has a radius of 20.0 cm.
What will be the linear velocity of its center of mass after it
falls through a distance of 3.00 meters? (Note: not all the
information given is needed.) Ignore friction.
Ans: 6.26 m/s
M, a solid cylinder (M=1.79 kg, R=0.119 m) pivots on a thin, fixed, frictionless bearing. A...
M, a solid cylinder (M=1.79 kg, R=0.119 m) pivots on a thin,
fixed, frictionless bearing. A string wrapped around the cylinder
pulls downward with a force F which equals the weight of a 0.630 kg
mass, i.e., F = 6.180 N.
a) Calculate the angular acceleration of the cylinder.
b) If instead of the force F an actual mass m = 0.630
kg is hung from the string, find the angular acceleration of the
cylinder.
c) How far does m...
One end of a cord is attached to and wrapped around a solid, frictionless cylinder of...
One end of a cord is attached to and wrapped around a solid, frictionless cylinder of mass M=4.1 kg. The other end of the cord is attached to a bucket of mass 1.1 kg. A brake applied to the cylinder is released, allowing the bucket to fall downward. Find the acceleration of the bucket in m/s2.
M, a solid cylinder (M=2.27 kg, R=0.127 m) pivots on a thin, fixed, frictionless bearing. A...
M, a solid cylinder (M=2.27 kg, R=0.127 m) pivots on a thin, fixed, frictionless bearing. A string wrapped around the cylinder pulls downward with a force F which equals the weight of a 0.770 kg mass, i.e., F = 7.554 N. I know the answers to A and B, but I need help with C and D A) Calculate the angular acceleration of the cylinder. (ANSWER: 52.4rad/s^2) B) If instead of the force F an actual mass m = 0.770...
M, a solid cylinder (M=1.39 kg, R=0.111 m) pivots on a thin, fixed, frictionless bearing. A...
M, a solid cylinder (M=1.39 kg, R=0.111 m)
pivots on a thin, fixed, frictionless bearing. A string wrapped
around the cylinder pulls downward with a force F which equals the
weight of a 0.570 kg mass, i.e., F = 5.592 N. Calculate the angular
acceleration of the cylinder. (the answer to this is 39.8 rad/s^2)
The cylinder is changed to one with the same mass and radius, but a
different moment of inertia. Starting from rest, the mass now moves...
PartA A light string is wrapped around the outer rim of a solid uniform cylinder of diameter 75.0 cm that can rotate without friction about an axle through its center. A 3.00 kg stone is tied to the free end of the string, as shown in the figure (Figure 1) When the system is released from rest, you determine that the stone reaches a speed of 3.50 m/s after having fallien 2.50m What is the mass of the cylinder? kg...
A light string is wrapped around a solid cylinder, and a block
of mass m=100g hangs from the free end of the string, as shown
Figure A2.17. When released, the block falls a
distance of 1.00m in 2.00s.
Draw free-body (or force) diagrams for the block and the
cylinder.
Calculate the tension in the string.
Determine the mass (M) of the cylinder.
A light string is wrapped around a solid cylinder, and a block of mass m 100 g hangs...
A solid sphere has a 0.8 m long string wrapped around it. The free-end of the string is held and the solid sphere is released thus unwinding the string as it falls. Determine how fast the solid sphere will be going at the moment the string is completely unwound assuming no thermal energy is generated. String Blocks & a pulley In the diagram below the red block has a mass of 9 kg, the blue block has a mass of...
A solid, 3.00-kg disk has a string
wrapped around its circumference as shown below. The string is
attached to the ceiling. When the disk is released, it accelerates
downward as the string unrolls. The disk has a radius of 20.0 cm.
What will be the linear velocity of its center of mass after it
falls through a distance of 3.00 meters? (Note: not all the
information given is needed.) Ignore friction.
Ans: 6.26 m/s
M, a solid cylinder (M=1.79 kg, R=0.119 m) pivots on a thin,
fixed, frictionless bearing. A string wrapped around the cylinder
pulls downward with a force F which equals the weight of a 0.630 kg
mass, i.e., F = 6.180 N.
a) Calculate the angular acceleration of the cylinder.
b) If instead of the force F an actual mass m = 0.630
kg is hung from the string, find the angular acceleration of the
cylinder.
c) How far does m...
M, a solid cylinder (M=1.39 kg, R=0.111 m)
pivots on a thin, fixed, frictionless bearing. A string wrapped
around the cylinder pulls downward with a force F which equals the
weight of a 0.570 kg mass, i.e., F = 5.592 N. Calculate the angular
acceleration of the cylinder. (the answer to this is 39.8 rad/s^2)
The cylinder is changed to one with the same mass and radius, but a
different moment of inertia. Starting from rest, the mass now moves...
