1. Given grammar: E -> E*E | E + E | num and input string num...

1. Given grammar: E -> E*E | E + E | num and input string num + num *num.

1a.Write 2 possible leftmost derivations from E to the input string.

1b.Draw parse tree for the two leftmost derivation that you wrote above.

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

1a.

First leftmost derivation :

E -> E * E -> E + E * E -> num + E * E -> num + num * E -> num + num * num

Second Leftmost derivation

E -> E + E -> num + E -> num + E * E -> num + num * E -> num + num * num

1b. Two parse trees for the input string num + num * num are :

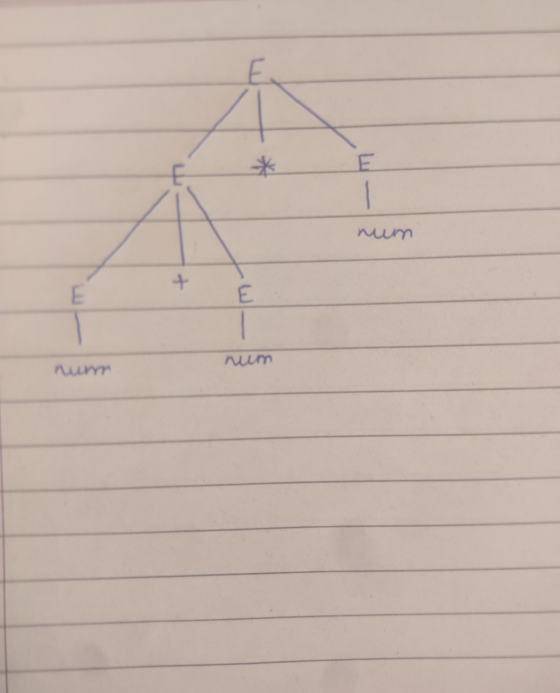

Taking E * E production first

num num

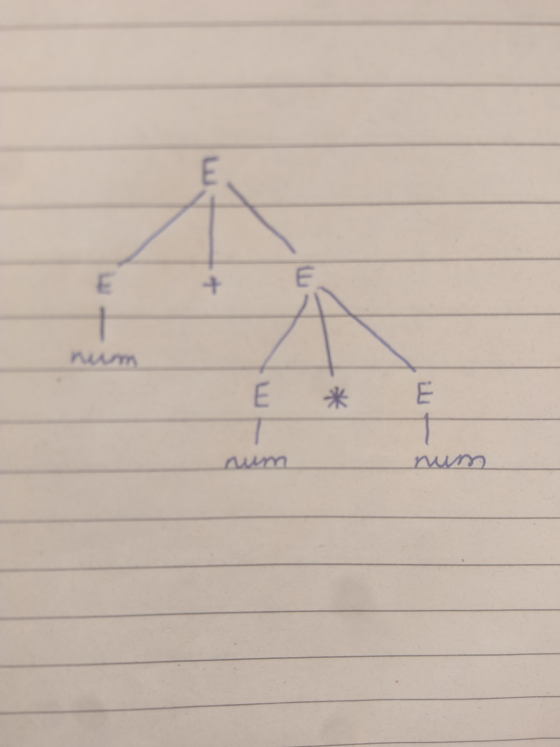

Taking E + E production first:РАТ Еж шт)
