Homework Answers
Add Answer to:

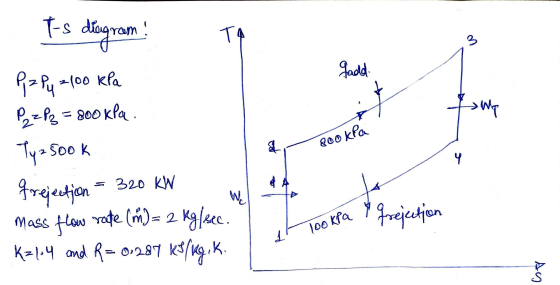

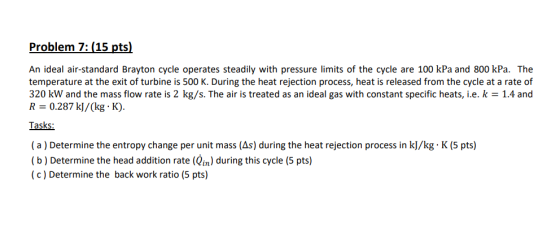

Problem 7: (15 pts) An ideal air-standard Brayton cycle operates steadily with pressure limits of the...
An aircraft engine operates on a simple ideal Brayton cycle with a pressure ratio rp of...
An aircraft engine operates on a simple ideal Brayton cycle with
a pressure ratio rp of 9. Heat is added to the cycle at a rate of
490 kW; air passes through the engine at a rate of 1.1 kg/s; and
the air at the beginning of the compression is at P1 = 71 kPa and
T1 = 0 oC. Use constant specific heats at room temperature. The
properties of air at room temperature are cp =1.005 kJ/kg.K and k...
An aircraft engine operates on a simple ideal Brayton cycle with a pressure ratio of 10.9....
An aircraft engine operates on a simple ideal Brayton cycle with a pressure ratio of 10.9. Heat is added to the cycle at a rate of 748 kW; air passes through the engine at a rate of 2 kg/s; and the air at the beginning of the compression is at 70 kPa and 321 K. Determine assuming constant specific heats at room temperature. (1) The gas temperature at the exit of the compressor (2) The gas temperature at the entrance...
A simple Ideal Brayton cycle operates with air with minimum and maximum temperatures of 27C and...
A simple Ideal Brayton cycle operates with air with minimum and maximum temperatures of 27C and 727°C. It is designed so that the. maximum cycle pressure is 2000 kPa and the minimum cycle pressure is 100 kPa. The isentropic efficiency of the turbine is 78 percent. Determine the network produced per unit mass of air each time this cycle is executed and the cycle's thermal efficiency Use constant specific heats at room temperature. The properties of air at room temperature...
Need help for this Brayton Cycle problem. Please help me 4. (30 marks) A gas-turbine power plant operates on the simple...
Need help for this Brayton Cycle problem.
Please help me
4. (30 marks) A gas-turbine power plant operates on the simple Brayton cycle between the pressure limits of 100 kPa and 800 kPa. The T-s diagram of this cycle is shown in Fig. 2. Air enters the compressor at 30°C and leaves at 330°C at a mass flow rate of 200 kg/s. The maximum cycle temperature is 1400 K. During operation of the cycle, the net power output is measured...
A simple ideal Brayton cycle operates with air with minimum and maximum temperatures of 27°C and...
A simple ideal Brayton cycle operates with air with minimum and
maximum temperatures of 27°C and 727°C. It is designed so that the
maximum cycle pressure is 2000 kPa and the minimum cycle pressure
is 100 kPa. The isentropic efficiency of the turbine is 96 percent.
Determine the net work produced per unit mass of air each time this
cycle is executed and the cycle’s thermal efficiency. Use constant
specific heats at room temperature. The properties of air at room...
9 Required information A Brayton cycle with a pressure ratio of 15 operates with air entering...
9 Required information A Brayton cycle with a pressure ratio of 15 operates with air entering the compressor at 66 kPa and O°C, and the turbine at 600℃ The properties of air at room temperature are co-1.005 kJ/kg-K and k = 1.4. Oin net CompressorT Turbine Qout Calculate the net specific work produced by this cycle treating the air as an ideal gas with constant specific heats The net specific work produced by this cycle is 165kJkg.
2. Air enters the compressor of an ideal air-standard Brayton cycle at 100 kPa, 300 K,...
2. Air enters the compressor of an ideal air-standard Brayton cycle at 100 kPa, 300 K, with a volumetnc flow rate of 20 m'/s. The turbine inlet temperature is 1500 K. For compressor pressure ratios of 20 find a) the heat addition and rejection in kW b) the net power developed, in kW c) the thermal efficiency of the cycle d) the back work ratio.
8. An ideal air-standard Brayton cycle operates at steady state with compressor inlet conditions of 250...
8. An ideal air-standard Brayton cycle operates at steady state with compressor inlet conditions of 250 K and 25 kPa. The compressor pressure ratio is 10. The turbine inlet temperature is 1800 K. For the cycle: (a) the heat addition and work done in each process, in kJ/kg, (b) the thermal efficiency (c) the back work ratio
8. An ideal air-standard Brayton cycle operates at steady state with compressor inlet conditions of 250...
8. An ideal air-standard Brayton cycle operates at steady state with compressor inlet conditions of 250 K and 25 kPa. The compressor pressure ratio is 10. The turbine inlet temperature is 1800 K. For the cycle: (a) the heat addition and work done in each process, in kJ/kg, (b) the thermal efficiency (c) the back work ratio
An ideal air-standard Brayton cycle operates at steady state with compressor inlet conditions of 250 K...
An ideal air-standard Brayton cycle operates at steady state with compressor inlet conditions of 250 K and 25 kPa. The compressor pressure ratio is 10. The turbine inlet temperature is 1800 K. For the cycle: (a) the heat addition and work done in each process, in kJ/kg, (b) the thermal efficiency (c) the back work ratio
An aircraft engine operates on a simple ideal Brayton cycle with
a pressure ratio rp of 9. Heat is added to the cycle at a rate of
490 kW; air passes through the engine at a rate of 1.1 kg/s; and
the air at the beginning of the compression is at P1 = 71 kPa and
T1 = 0 oC. Use constant specific heats at room temperature. The
properties of air at room temperature are cp =1.005 kJ/kg.K and k...
A simple Ideal Brayton cycle operates with air with minimum and maximum temperatures of 27C and 727°C. It is designed so that the. maximum cycle pressure is 2000 kPa and the minimum cycle pressure is 100 kPa. The isentropic efficiency of the turbine is 78 percent. Determine the network produced per unit mass of air each time this cycle is executed and the cycle's thermal efficiency Use constant specific heats at room temperature. The properties of air at room temperature...
Need help for this Brayton Cycle problem.
Please help me
4. (30 marks) A gas-turbine power plant operates on the simple Brayton cycle between the pressure limits of 100 kPa and 800 kPa. The T-s diagram of this cycle is shown in Fig. 2. Air enters the compressor at 30°C and leaves at 330°C at a mass flow rate of 200 kg/s. The maximum cycle temperature is 1400 K. During operation of the cycle, the net power output is measured...
A simple ideal Brayton cycle operates with air with minimum and
maximum temperatures of 27°C and 727°C. It is designed so that the
maximum cycle pressure is 2000 kPa and the minimum cycle pressure
is 100 kPa. The isentropic efficiency of the turbine is 96 percent.
Determine the net work produced per unit mass of air each time this
cycle is executed and the cycle’s thermal efficiency. Use constant
specific heats at room temperature. The properties of air at room...
9 Required information A Brayton cycle with a pressure ratio of 15 operates with air entering the compressor at 66 kPa and O°C, and the turbine at 600℃ The properties of air at room temperature are co-1.005 kJ/kg-K and k = 1.4. Oin net CompressorT Turbine Qout Calculate the net specific work produced by this cycle treating the air as an ideal gas with constant specific heats The net specific work produced by this cycle is 165kJkg.
2. Air enters the compressor of an ideal air-standard Brayton cycle at 100 kPa, 300 K, with a volumetnc flow rate of 20 m'/s. The turbine inlet temperature is 1500 K. For compressor pressure ratios of 20 find a) the heat addition and rejection in kW b) the net power developed, in kW c) the thermal efficiency of the cycle d) the back work ratio.
8. An ideal air-standard Brayton cycle operates at steady state with compressor inlet conditions of 250 K and 25 kPa. The compressor pressure ratio is 10. The turbine inlet temperature is 1800 K. For the cycle: (a) the heat addition and work done in each process, in kJ/kg, (b) the thermal efficiency (c) the back work ratio
8. An ideal air-standard Brayton cycle operates at steady state with compressor inlet conditions of 250 K and 25 kPa. The compressor pressure ratio is 10. The turbine inlet temperature is 1800 K. For the cycle: (a) the heat addition and work done in each process, in kJ/kg, (b) the thermal efficiency (c) the back work ratio
