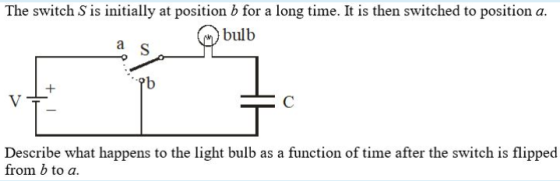

The switch S is initially at position b for a long time. It is then switched...
For a long period of time the switch S is in position "b". At t =...
For a long period of time the switch S is in position "b". At t = 0 s, the switch S is moved from position "b" to position "a". Find the voltage across the 4 M ohm center-left resistor at time t1 = 5 s. Answer in units of V. Much later, at some time t'0 = 0 s, the switch is moved from position "a" to position "b". Find the voltage across the 4 M ohm center-left resistor at...
Consider the RC circuit in the figure below. The switch was at position a for a long period of time and it is suddenly...
Consider the RC circuit in the figure below. The switch was at
position a for a long period of time and it is
suddenly switched to position b at time t =
0.For
each statement select True or False.1. The current through the resistor equals the current across the
capacitor at all times.2. In the instant after the switch is thrown the current across the
capacitor is zero.3. In the instant after the switch is thrown the voltage across the...
You kept the switch in position 2 for a long time. Then you flipped the switch...

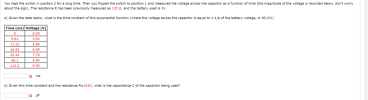

You kept the switch in position 2 for a long time. Then you flipped the switch to position 1 and measured the voltage across the capacitor as a function of time (the magnitude of the voltage is recorded below, don't worry about the sign). The resistance R has been previously measured as 102 fi, and the battery used is 9V. Given the data below, what is the time constant of this exponential function (where the voltage across the capacitor is...
Initially, the switch in the figure (Figure 1) is in position A and capacitors C2 and...
Initially, the switch in the figure (Figure 1) is in position A
and capacitors C2 and C3 are uncharged. Then the switch is flipped
to position B. Afterward, what are the charge on and the potential
difference across EACH capacitor if V=100 Volts?
The switch in the figure has been in position a for a long time. It is changed to position b at t=0s. a)What is...
The switch in the figure has been in position a for a long
time. It is changed to position b at t=0s.
a)What is the charge Q on the capacitor immediately after the
switch is closed?
b) What the current I through the resistor immediately after the
switch is closed?
c) What is the charge Q on the capacitor at t=50^-6 s ?
d)What is the current I through the resistor at t=50^-6 s?
e) What is the charge Q...
The capacitor in the figure shown is initially uncharged and the switch, in position c, is not connected to either side of the circuit.
The capacitor in the figure shown is initially uncharged and the switch, in position c, is not connected to either side of the circuit. The switch is now flipped to position a for 10 ms, (a) What is voltage difference across the capacitor? (b) then the switch flipped to position b for 10 ms and then brought back to position c. What the final voltage difference across the capacitor?
i need help with problem 5 X resistances in the circuit can be neglected. The switch is closed at time t-0 X X 1 X E- W...
i need help with problem 5
X resistances in the circuit can be neglected. The switch is closed at time t-0 X X 1 X E- What is the acceleration of the bar as a function of a) time? b) What is the velocity of the bar as a function of time? Figure 3-for Problem 29.60 Chapter 30 Problems: Problem 5 - variation of problem 30.64: Using the circuit shown in Figure 4, a) Find the reading in each ammeter...
The capacitor in (Figure 1) is initially uncharged and the switch, in position c, is not...
The capacitor in (Figure 1) is initially uncharged and the switch, in position c, is not connected to either side of the circuit. The switch is now flipped to position a for 11 ms , then to position b for 11 ms , and then brought back to position c. Suppose that E = 15 V . Part A What is the final potential difference across the capacitor?
The switch in (Figure 1) has been in position a for a long time. It is changed to position b at t = 0 s.
The switch in (Figure 1) has been in position a for a long time.
It is changed to position b at t = 0 s.a. What is the charge Q on the capacitor immediately after the
switch is changed? Express your answer with the appropriate
units.b. What is the current II through the resistor immediately after
the switch is changed? Express your answer with the appropriate
units.c. What is the charge Q on the capacitor at t = 70 μs?...
Switch S has been at position a for a very long time and is then thrown...
Switch S has been at position a for a very long time and is then thrown to position b. You know that the capacitance C is 17.0 uF. Your data logger makes a graph of the voltage across the capacitor as a function of time, with t = 0 being the instant the switch was thrown to position b. The graph is shown in the figures below. AV (V) 30 25 20 15 10 5 has t (ms) 10 15...
For a long period of time the switch S is in position "b". At t = 0 s, the switch S is moved from position "b" to position "a". Find the voltage across the 4 M ohm center-left resistor at time t1 = 5 s. Answer in units of V. Much later, at some time t'0 = 0 s, the switch is moved from position "a" to position "b". Find the voltage across the 4 M ohm center-left resistor at...
Consider the RC circuit in the figure below. The switch was at
position a for a long period of time and it is
suddenly switched to position b at time t =
0.For
each statement select True or False.1. The current through the resistor equals the current across the
capacitor at all times.2. In the instant after the switch is thrown the current across the
capacitor is zero.3. In the instant after the switch is thrown the voltage across the...
You kept the switch in position 2 for a long time. Then you flipped the switch to position 1 and measured the voltage across the capacitor as a function of time (the magnitude of the voltage is recorded below, don't worry about the sign). The resistance R has been previously measured as 102 fi, and the battery used is 9V. Given the data below, what is the time constant of this exponential function (where the voltage across the capacitor is...
Initially, the switch in the figure (Figure 1) is in position A
and capacitors C2 and C3 are uncharged. Then the switch is flipped
to position B. Afterward, what are the charge on and the potential
difference across EACH capacitor if V=100 Volts?
The switch in the figure has been in position a for a long
time. It is changed to position b at t=0s.
a)What is the charge Q on the capacitor immediately after the
switch is closed?
b) What the current I through the resistor immediately after the
switch is closed?
c) What is the charge Q on the capacitor at t=50^-6 s ?
d)What is the current I through the resistor at t=50^-6 s?
e) What is the charge Q...
i need help with problem 5
X resistances in the circuit can be neglected. The switch is closed at time t-0 X X 1 X E- What is the acceleration of the bar as a function of a) time? b) What is the velocity of the bar as a function of time? Figure 3-for Problem 29.60 Chapter 30 Problems: Problem 5 - variation of problem 30.64: Using the circuit shown in Figure 4, a) Find the reading in each ammeter...
The switch in (Figure 1) has been in position a for a long time.
It is changed to position b at t = 0 s.a. What is the charge Q on the capacitor immediately after the
switch is changed? Express your answer with the appropriate
units.b. What is the current II through the resistor immediately after
the switch is changed? Express your answer with the appropriate
units.c. What is the charge Q on the capacitor at t = 70 μs?...
Switch S has been at position a for a very long time and is then thrown to position b. You know that the capacitance C is 17.0 uF. Your data logger makes a graph of the voltage across the capacitor as a function of time, with t = 0 being the instant the switch was thrown to position b. The graph is shown in the figures below. AV (V) 30 25 20 15 10 5 has t (ms) 10 15...
