You have a red laser (wavelength 656 nm) that produces a beam wide enough to illuminate...

Question

Question

You have a red laser (wavelength 656 nm) that produces a beam wide enough to illuminate two large slits. Each slit

is 1.0 cm wide, and they are 4.0 cm apart. The laser light shines through the slits onto a viewing screen 1.00 m away.

a. Describe what will be seen on the viewing screen. Draw a picture. Label the picture with any relevant physical

distances that you can determine.

The slits are replaced with much smaller ones. They are just 10^-5 m apart, and are extremely narrow in width (<

10^-6 m.

b. Repeat part a. for this new situation.

science physics

Answer 1

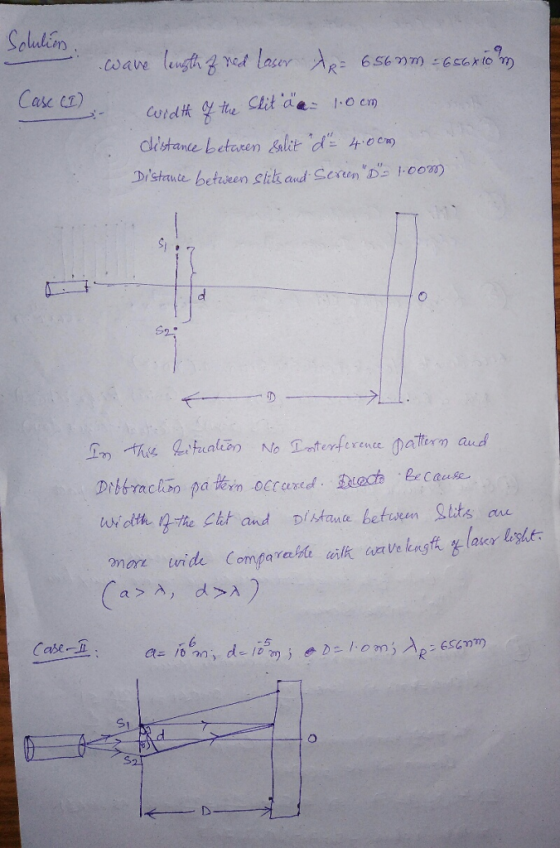

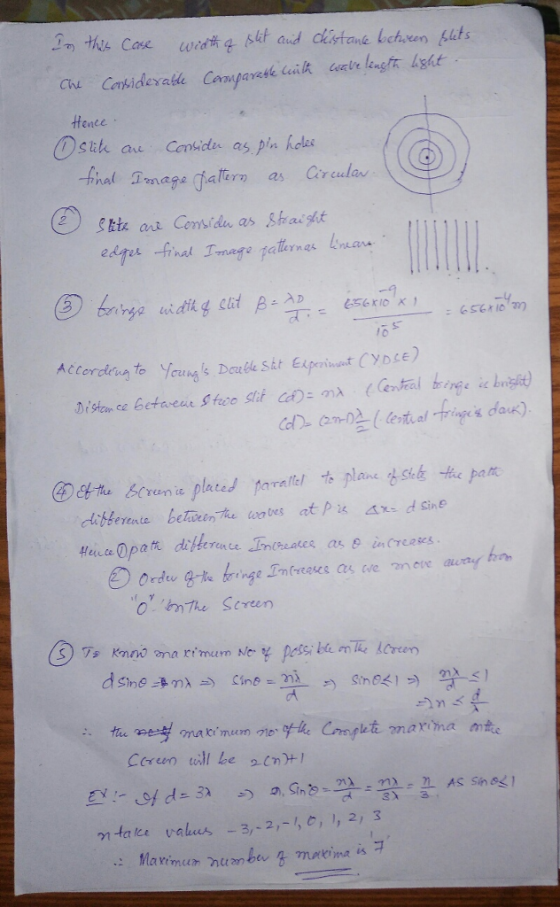

Answer #1

tente Osith au Conkidle as pin helat yDCE) に收bri int hon isti befusen cit audt Sen D 10030 e Cause Case-n らt

Answer 2
